CAT C12 Solenoid Valve Assembly – High-Speed Spill Control For MEUI Injector Dynamics | 1.45ms Opening Time



In the Caterpillar C12 MEUI (Mechanically actuated Electronically controlled Unit Injector) system-a platform powering 2000+ series excavators, on-highway vocational trucks, and marine auxiliary engines-the solenoid valve assembly operates as the spill port gatekeeper, directly controlling the timing of the pressure relief event that ends the injection cycle. While most discussions focus on the solenoid's opening speed for injection start, the C12's performance is equally dependent on its closing speed-the rate at which it allows the spill port to open and relieve pressure after injection. A solenoid that closes slowly (delayed spill opening) traps pressure in the intensifier chamber, causing the injector to continue delivering fuel past the commanded end-of-injection. This "overhang" condition increases particulate emissions and reduces engine braking effectiveness. The C12's 430 HP rating demands a solenoid with both fast opening (for precise start timing) and fast closing (for clean end-of-injection), with a closing delay of less than 1.5ms.

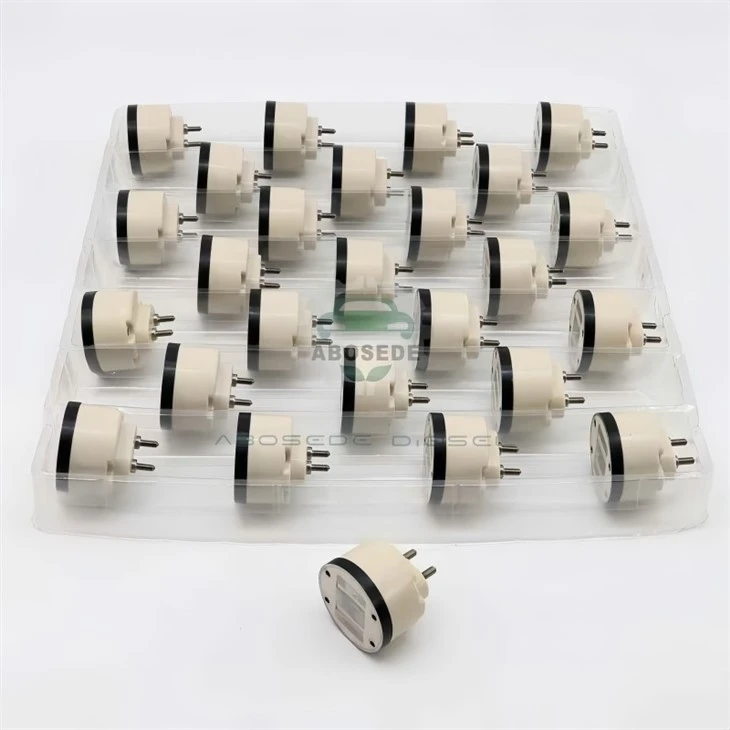

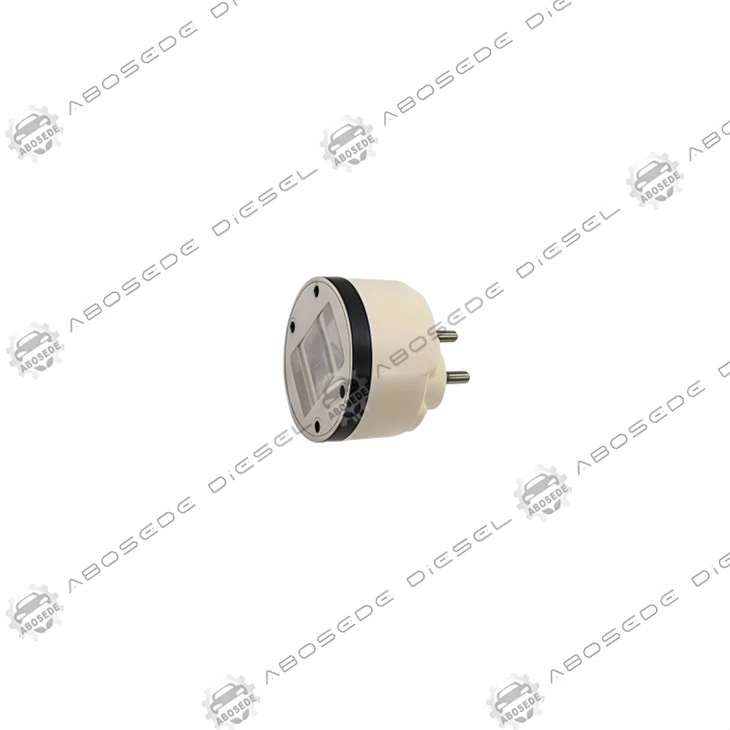

Our product is a high-speed solenoid assembly engineered specifically for the C12 MEUI injector platform, validated to the original performance specifications for part numbers 236-6462 and 185-8970. The assembly features a low-mass armature (13.8g) and a high-tension return spring that ensures rapid spill port opening at the end of injection, maintaining the C12's factory emissions performance.



This solenoid assembly is dimensionally and electrically matched to the C12 engine family across the following serial prefixes and applications:

Engine Serial Prefix	Primary Application	Notable Calibration Trait
9KS, 9KX	On-highway trucks (heavy-haul)	410–430 HP, high-torque-rise cam
2KS, 2KZ	Excavators (345 series)	Variable-speed, high-idle 2200 RPM
3CS, 4AR	Wheel loaders / forestry	Load-sensing hydraulic integration
5KZ, 6NZ	Marine propulsion	Constant-speed 1800 RPM rating
7CZ, 8PN	Industrial gen-set	Emergency standby, 1500/1800 RPM

Critical Fitment Note: The C12 solenoid uses a 3.8mm armature stroke-longer than the C10 (3.2mm) but shorter than the C15 (4.2mm). The coil resistance is 0.95Ω (pull-in winding) with a separate hold winding at 1.80Ω. This dual-winding configuration is shared with the C15 but uses different winding ratios optimized for the C12's ECM current profile.



For the C12, the solenoid's performance is measured by its dual-response capability-opening speed for injection start and closing speed (spill opening) for injection end:

Parameter	New Solenoid Specification	Degradation Threshold
Opening Time (0–90% lift)	1.45 ms @ 24V (PWM 70% duty)	> 1.75 ms (start timing delay)
Closing Time (spill opening delay)	1.35 ms (from current drop)	> 1.65 ms (overhang condition)
Peak Magnetic Force (0.35mm gap)	42 N ±3%	< 38 N (incomplete lift)
Pull-in Winding Resistance @ 20°C	0.95 Ω ±0.04Ω	> 1.05Ω (corrosion risk)
Hold Winding Resistance @ 20°C	1.80 Ω ±0.06Ω	> 1.95Ω (winding stress)
Armature Return Spring Force	22 N @ full stroke	< 18 N (slow closing)
Total Stroke (armature travel)	3.80 mm ±0.05mm	N/A (mechanical fixed)

Graphical Abstraction – The "Pressure Trapping" Risk Model:
Visualize the injection pressure curve over time. At commanded end-of-injection, the ECM drops the hold current, allowing the return spring to close the solenoid and open the spill port. A fast-closing solenoid (1.35ms) achieves full spill opening within 1.5ms of the command, rapidly dropping injection pressure to zero. A slow-closing solenoid (1.65ms) allows the injection pressure to remain elevated for an additional 0.3ms, causing the injector to over-deliver fuel-typically 2–3% more than commanded at rated conditions. This over-delivery increases particulate emissions and can trigger active DPF regeneration cycles more frequently. Our solenoid's high-tension return spring ensures the 1.35ms closing time, preventing pressure overhang.



The C12's dual-winding configuration (separate pull-in and hold windings) requires precise material selection to maintain performance:

Pull-in Winding: Wound with heavy-gauge copper wire (1.2mm diameter) to handle the 8A peak current required for fast opening. The winding is precision-layered to minimize inter-turn capacitance, which can slow current rise.

Hold Winding: Wound with fine-gauge copper wire (0.7mm diameter) optimized for 3.2A continuous current with minimal heating. The lower current reduces thermal stress on the winding insulation.

Armature Guide Bushing: Machined from phosphor bronze with an oil-retention groove that maintains a thin lubricating film, reducing wear and maintaining the 0.02mm radial clearance required for consistent stroke.

Return Spring: Made from oil-tempered chrome-silicon wire with a higher spring rate (22 N/mm) than the C10 spring (18 N/mm) to ensure rapid closing despite the larger armature mass.

Visual Innovation – Stroke Marking:
Each solenoid is laser-etched with a stroke length mark near the armature base-a line that aligns with the housing when the solenoid is fully open. This allows technicians to verify full armature travel using a simple visual check before installation.



Step 1 – Pre-Installation Check: Manually depress the armature and release it. The armature should return to its seated position within 10ms (audible as a sharp click). A dull return sound indicates a weakened spring-replace the entire solenoid.

Step 2 – Resistance Measurement: Measure the pull-in winding (pins A-B): 0.95Ω ±0.04Ω. Measure the hold winding (pins B-C): 1.80Ω ±0.06Ω.

Step 3 – Solenoid Mounting: Position the solenoid over the injector's spill valve stem. Torque the two M5 retaining screws to 2.2 N·m (C12 uses M5 hardware, not the M5.5 found on some larger engines).

Step 4 – Closing Speed Test: Using Cat ET, perform the injector "buzz test" at 10Hz. The solenoid should produce a sharp, consistent "click-click" rhythm with no variation between clicks. A variation indicates inconsistent armature travel or spring force.

Step 5 – ECM Calibration: Run the "Injector Solenoid Learn" routine. The C12 ECM will store both the opening and closing response times for precise injection control.



Q1: My C12 has increased black smoke under load, but the ECM shows normal fuel trims. Could the solenoid be closing too slowly?
Yes-this is a classic symptom of a weakened return spring. The slower closing causes pressure overhang, which adds extra fuel at the end of injection without the ECM being aware of it. This over-delivery is not reflected in the fuel trim values (which only track commanded fuel, not actual delivery). Replacing the solenoid restores the 1.35ms closing time and reduces smoke.

Q2: How can I test the return spring force without specialized equipment?
A simple field test: with the solenoid removed, place it vertically on a bench (armature facing up). Place a 200g weight on the armature-the armature should not move. Remove the weight-the armature should snap back to the fully retracted position within 5ms. If it moves under 200g or returns slowly, the spring is weak.

Q3: The C12 and C15 solenoids have similar part numbers. Are they interchangeable?
No-the C12 solenoid has a shorter stroke (3.8mm vs. 4.2mm) and a different return spring rate (22 N/mm vs. 24 N/mm). Installing a C15 solenoid on a C12 will result in premature spill valve contact (damage) and a harsher closing action (increased wear).

Q4: Our C12 is used in a marine application at constant 1800 RPM. Does the replacement interval change?
For constant-speed applications, the solenoid experiences less thermal cycling but more constant thermal load. We recommend replacement at 6,000–7,000 hours (similar to highway trucks). The primary wear mechanism is the armature guide bushing, which sees continuous sliding friction at the same frequency.

Q5: I notice that the solenoid gets very hot after extended operation. Is this normal?
The C12 solenoid's maximum operating temperature is 130°C. If the housing temperature exceeds 130°C (measured with an infrared thermometer), check the ECM's hold current setting-it should be 3.2A. A higher hold current will overheat the solenoid and accelerate winding insulation degradation.

Q6: What's the effect of using a solenoid with a faster closing time than OEM spec?
While a faster closing time (e.g., 1.15ms) might seem beneficial, it can cause spill port cavitation-the rapid pressure drop creates vacuum bubbles in the fuel, which can erode the spill valve seat over time. The 1.35ms closing time is the OEM-optimized value that balances speed with durability. Our solenoid matches this specification precisely.
