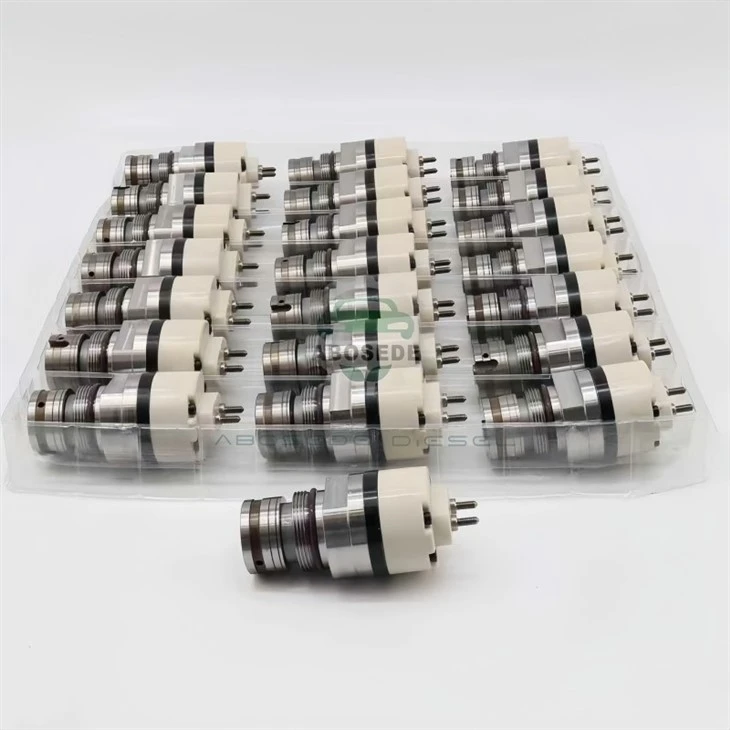

CAT C10 Solenoid Valve Assembly | Electronic Control Valve Component For Caterpillar Diesel Fuel System And Engine Management Applications



In heavy-duty diesel equipment, mechanical strength alone is not enough to achieve efficient operation. Modern engines rely on electronic control components to regulate fuel delivery, pressure management and system response. The CAT C10 solenoid valve assembly is an important control element designed to convert electrical commands into precise mechanical movement, helping maintain stable operation of Caterpillar diesel systems.

A solenoid valve works by using electromagnetic force to control the movement of an internal valve mechanism. When the control unit sends an electrical signal, the solenoid generates magnetic force, allowing the valve to open, close or regulate fluid flow according to operating requirements.

For diesel engine systems, especially those related to fuel injection and electronic management, the accuracy of solenoid operation directly affects pressure control, fuel response and overall engine performance.

Unlike passive mechanical components, a solenoid valve is an active control unit. It participates in real-time adjustment according to engine load, speed and operating conditions. This makes it a critical connection between electronic control systems and hydraulic or fuel circuits.

The CAT C10 solenoid valve assembly provides a practical replacement solution for maintaining correct system operation, especially in applications where unstable pressure regulation, delayed response or control errors occur.



Product Name: CAT C10 Solenoid Valve Assembly

Component Type: Electronic Control Solenoid Valve

Application Brand: Caterpillar

System Category: Diesel Engine Control / Fuel Management System

Main Functions:

◆ Electromagnetic flow control
◆ Hydraulic pressure regulation
◆ Fuel system response control
◆ Electronic command execution

Typical Application Fields:

✓ Caterpillar diesel engines
✓ Construction machinery
✓ Mining equipment
✓ Industrial power systems
✓ Heavy-duty machinery

The CAT C10 solenoid valve assembly is designed for professional diesel maintenance markets where accurate electronic control and dependable operation are required.

Before purchasing, customers should verify the exact engine model, valve identification number, connector style and application environment because Caterpillar systems may use different solenoid configurations.



The solenoid valve operates through a combination of electrical control and hydraulic response.

Its working process includes:

1. Electrical Signal Activation

The engine control module sends an electrical current to the solenoid coil according to operating conditions.

The coil creates a magnetic field that moves the internal armature.

2. Valve Movement Control

The internal valve element changes position, allowing or restricting fluid flow.

This action controls pressure, timing or flow rate depending on the system design.

3. System Response Adjustment

The controlled hydraulic or fuel circuit responds immediately, helping the engine maintain stable operating parameters.

This process supports:

✓ Faster system reaction
✓ More accurate control
✓ Improved engine consistency
✓ Reduced abnormal operating conditions



Modern diesel common rail systems depend heavily on electronic control accuracy.

A common rail fuel system includes:

Fuel Supply → High Pressure Pump → Rail Pressure Control → Injector Operation → Combustion

While injectors perform the final fuel injection process, solenoid valves often participate in regulating pressure and controlling hydraulic actions within the system.

Modern diesel control technology uses:

ECU signal processing

Electronic actuators

Pressure feedback sensors

Real-time adjustment strategies

A malfunctioning solenoid valve may affect:

◆ Fuel pressure stability
◆ Injection response
◆ Engine power output
◆ Fuel efficiency
◆ Emission performance

Although the CAT C10 solenoid valve is not itself an injector, it supports the electronic control network that allows diesel fuel systems to operate accurately.



1. Fast Electromagnetic Response

Diesel control systems require rapid reaction times. The solenoid design enables quick conversion from electrical signals into mechanical movement.

2. Stable Pressure Management

Accurate valve operation helps maintain consistent hydraulic or fuel pressure during different engine conditions.

3. Durable Operating Structure

Heavy-duty diesel environments expose components to:

Vibration

Temperature changes

Continuous operating cycles

Fuel or hydraulic pressure fluctuations

The solenoid assembly is designed to withstand demanding working conditions.

4. Electronic Control Compatibility

The component works as an interface between the engine control system and mechanical operation, supporting modern diesel management strategies.



1. What is the main function of the CAT C10 solenoid valve?

The solenoid valve converts electrical signals into mechanical valve movement, controlling fluid or fuel-related system operations.

---

2. Is the CAT C10 solenoid valve the same as a fuel injector?

No. An injector sprays fuel into the combustion chamber, while a solenoid valve controls system operation through electromagnetic regulation.

---

3. Can a faulty solenoid valve affect diesel engine performance?

Yes. Incorrect pressure or control response may influence fuel system operation, engine power and overall efficiency.

---

4. What usually causes solenoid valve failure?

Common causes include:

Electrical problems

Contaminated fluid

Connector damage

Long-term wear

Excessive operating temperature

---

5. Does replacing a solenoid valve require system calibration?

Depending on the Caterpillar system design, testing or calibration procedures may be required after replacement.

---

6. What information should buyers provide before purchasing?

Customers should provide the valve number, engine model, machine application, connector details and photos of the original component for accurate matching.
