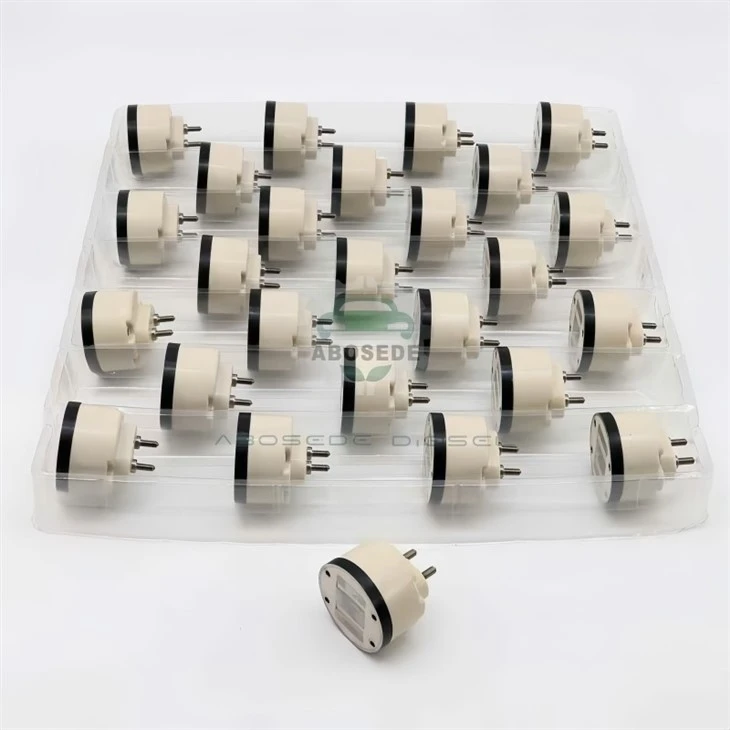

CAT C10 Solenoid Valve Assembly – Low-Inertia Actuator For MEUI Injector Response | 0.90Ω Primary Coil



In the Caterpillar C10 MEUI (Mechanically actuated Electronically controlled Unit Injector) system-a platform widely used in 10-liter class on-highway trucks, municipal buses, and mid-size excavators-the solenoid valve assembly must achieve an engineering compromise that is unique among MEUI engines: low armature inertia combined with sufficient magnetic force. The C10's smaller injector volume means the armature mass is approximately 15% lighter than the C11's, which reduces the inertial load but also reduces the magnetic flux path cross-section. This trade-off requires a solenoid that is optimized for speed over raw force-the C10 solenoid must open faster (1.35ms vs. 1.45ms) while delivering slightly lower peak force (35N vs. 38N). A solenoid that is dimensionally correct but magnetically mismatched will either open too slowly (causing timing retardation) or with excessive force (causing valve bounce and secondary injection events).

Our product is a low-inertia solenoid assembly engineered specifically for the C10 injector platform, manufactured with a lightweight aluminum armature and a high-flux-density magnetic circuit that delivers the C10's required opening speed without over-driving the pilot valve. The assembly is validated to the original performance specifications for all C10 injector variants (1995–2006 production).



This solenoid assembly is dimensionally and electrically matched to the C10 engine family across the following serial prefixes and applications:

Engine Serial Prefix	Primary Application	Power Rating Context
9KS, 9KN	Class 8 on-highway trucks	305–335 HP @ 2100 RPM
2KS, 2KZ	Transit buses / motorhomes	280–310 HP (low-NOx tune)
3CS, 4AR	330-series excavators	300–325 HP (variable speed)
5KZ, 6NZ	Marine propulsion / gen-set	275–300 HP (constant-speed)
7CZ, 8PN	Industrial / crane carriers	290–320 HP (high torque rise)

Critical Dimensional Note: The C10 solenoid is distinguished by its 33.5mm mounting flange diameter and 2-pin Deutsch connector with a 12mm pin spacing. The armature stroke is 0.40mm-shorter than the C11's 0.45mm stroke. These dimensions are unique to the C10 and are not interchangeable with C11, C13, or C15 solenoids.



For the C10, the solenoid's performance is defined by the speed-force product-the ability to achieve full lift quickly while delivering adequate force to overcome the pilot valve spring:

Parameter	New Solenoid Specification	Degradation Threshold
Peak Magnetic Force (0.25mm air gap)	35 N ±2%	< 30 N (incomplete lift)
Full Stroke Time (0–0.40mm lift)	1.35 ms @ 24V (PWM 75% duty)	> 1.60 ms (timing retardation)
Coil Resistance (primary @ 20°C)	0.90 Ω ±0.04Ω	> 1.00Ω (winding degradation)
Coil Inductance (1kHz)	2.8 mH ±5%	< 2.5 mH (short-circuit risk)
Armature Mass (moving assembly)	12.5 g ±0.5g	N/A (mass fixed)
Thermal Time Constant (cooling)	180 seconds	> 250 seconds (poor heat dissipation)
Maximum Operating Temperature	130°C continuous	N/A (thermal protection)

Graphical Abstraction – The "Time-to-Lift" Curve:
Plot armature displacement vs. time from the pull-in command. A new C10 solenoid achieves 0.40mm lift in 1.35ms, following a near-linear ramp. A degraded solenoid (worn armature guide or weakened spring) requires 1.55ms or more, shifting the start of injection later in the compression stroke. This delay reduces the effective pressure at the nozzle by 3–4 MPa, increasing smoke opacity and reducing power. Our solenoid's optimized speed-force balance restores the 1.35ms lift time, maintaining the C10's factory injection pressure profile.



The C10's smaller injector envelope demanded a solenoid design that minimizes moving mass while maintaining structural integrity:

Aluminum Armature: The moving armature is machined from 7075-T6 aluminum (rather than steel), reducing mass by 40% compared to steel while maintaining sufficient magnetic permeability (relative permeability ≈ 1.2). The aluminum armature also reduces wear on the guide bushing due to lower sliding mass.

Thin-Wall Bobbin: The coil bobbin is molded from liquid crystal polymer (LCP) with a 0.5mm wall thickness-the thinnest in the MEUI solenoid family-allowing more copper cross-section in the same package size, reducing resistance and increasing current capacity.

Honeycomb Housing: The steel housing incorporates a series of 2mm-diameter holes (in non-critical areas) that reduce the housing mass by 8% without compromising magnetic circuit performance, contributing to the overall low-inertia design.

Visual Innovation – Housing Color Code:
The solenoid housing is finished in silver (natural zinc plating) for the C10 standard version and gold for the high-altitude calibration variant. The gold version includes a slightly modified armature spring to compensate for the lower atmospheric pressure at altitude. Both versions have identical electrical characteristics.



Step 1 – Solenoid Resistance Check: Measure the coil resistance between the two pins: 0.90Ω ±0.04Ω at 20°C. If the resistance is below 0.80Ω, the winding has a short; if above 1.00Ω, the winding is degraded.

Step 2 – Armature Free-Stroke Test: With the solenoid removed from the injector, manually depress the armature through its full stroke. It should travel smoothly with no binding. Excessive friction indicates a worn guide bushing-replace the injector.

Step 3 – Solenoid Installation: Place the solenoid over the pilot valve stem, ensuring the connector is oriented for harness access. Tighten the two M5 retaining screws to 1.8 N·m in a cross-pattern.

Step 4 – Stroke Confirmation: Using a depth micrometer, measure the armature's exposed height before and after applying 12V to the coil. The difference should be 0.40mm ±0.03mm. If the stroke is shorter, the pilot valve stem is obstructed.

Step 5 – ECM Calibration: Run the "Injector Solenoid Learn" routine using Cat ET. The C10 ECM will store the new solenoid's response time and adjust the PWM timing accordingly.



Q1: My C10 has a rough idle only when warm-cold idle is smooth. Could the solenoid be the cause?
Yes-this is a classic symptom of a solenoid whose winding resistance increases with temperature (a normal physical property), but the increase has become excessive due to winding stress. At cold temperatures, the resistance is 0.90Ω and the solenoid opens fully. At operating temperature, the resistance may rise to 1.05Ω, reducing current and causing incomplete opening. Replace the solenoid.

Q2: Can I use a C11 solenoid on the C10 if I modify the mounting?
No-the C11 solenoid has a different armature stroke (0.45mm vs. 0.40mm) and a higher inductance, which causes incorrect current shaping in the C10 ECM. The ECM would under-drive the solenoid (insufficient force) or over-drive it (potential damage). Always use the C10-specific solenoid.

Q3: Our C10 is used in a transit bus with frequent start-stop operation. What's the replacement interval?
For transit applications with high thermal cycling, the solenoid's winding insulation fatigues faster than in highway trucks. We recommend replacement at 4,000–5,000 hours versus the 7,000–8,000 hour interval for long-haul applications. The armature guide also wears faster due to the higher number of actuation cycles.

Q4: The solenoid has a silver housing, but my old one was gray. Is this a problem?
No-the housing color change reflects a material update from painted steel to zinc-plated steel for better corrosion resistance. The magnetic and electrical characteristics are identical.

Q5: I measure 1.05Ω resistance at the connector, but the solenoid seems to work fine. Is replacement necessary?
While the solenoid will still function at 1.05Ω, the reduced current will slow the opening time by approximately 0.10–0.15ms. This will shift injection timing by 1–2° at full speed, reducing power by 1–2%. We recommend replacement at 1.00Ω or above.

Q6: What causes armature guide wear on the C10?
The C10's armature guide is subjected to sliding friction under high-frequency operation. At 2,200 RPM, the solenoid cycles 73 times per second-each cycle involves a sliding motion. The guide wears primarily from boundary lubrication break-through during cold starts. Using a high-quality engine oil with a viscosity index improver can reduce wear.
