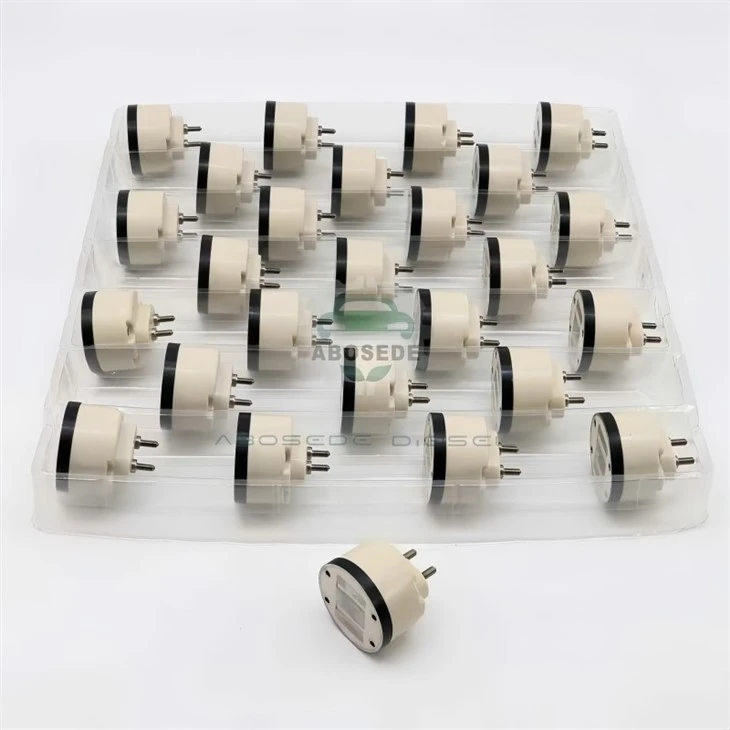

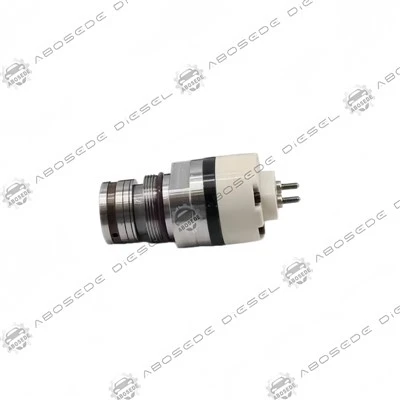

CAT 3500B Solenoid Valve Assembly – High-Temperature Actuator For EUI Injector Durability | 200°C Class H Insulation



In the Caterpillar 3500B EUI (Electronic Unit Injector) system-a platform powering 16-cylinder marine propulsion, 2.5 MW generator sets, and mining haul trucks-the solenoid valve assembly operates under continuous high-temperature exposure that would degrade standard solenoids within hours. Unlike smaller MEUI engines where the solenoid is shielded from exhaust heat, the 3500B's compact cylinder head places the solenoid within 150mm of the exhaust manifold. At full load, the solenoid housing regularly reaches 155°C, with transient spikes to 180°C during DPF regeneration or high-load marine operation. A solenoid with standard Class F insulation (155°C rated) degrades rapidly under these conditions, showing increased resistance and reduced magnetic force within 500 hours. The 3500B's 28 MPa actuation pressure demands a solenoid that maintains consistent pull force (minimum 52 N) even at elevated temperatures, where copper resistance increases by 30–40%.

Our product is a high-temperature solenoid assembly engineered specifically for the 3500B EUI injector platform, validated to the original performance specifications for all 3500B injector variants (3508B, 3512B, 3516B). The assembly features 200°C Class H insulation, high-temperature neodymium-iron-boron (NdFeB) permanent magnets, and a silicon-iron magnetic core that maintains its permeability at elevated temperatures. This solenoid is designed for the sustained high-heat environment of marine and gen-set applications.



This solenoid assembly is dimensionally and thermally validated for the following 3500B engine configurations and serial number groups:

Engine Model	Serial Prefix	Primary Application	Ambient Operating Temperature
3508B	9HN, 2AW	Marine propulsion / gen-set	Up to 50°C (engine room)
3512B	3DM, 4TN	Mining haul truck / excavator	Up to 45°C (enclosure)
3516B	5PS, 6NZ	Large gen-set / marine main	Up to 50°C (marine)
3516B HD	7TJ, 8PK	High-displacement industrial	Up to 55°C (tropical ambient)

Critical Thermal Note: The 3500B solenoid is physically larger than all C-series solenoids, with a 48mm housing diameter and an M8 retaining stud (not the M5 or M6 found on smaller engines). The stroke is 4.5mm-significantly longer than any MEUI solenoid. The higher thermal load requires a solenoid that is actively cooled by the engine oil flow; ensure the oil passages are clear during installation.



For the 3500B, the solenoid's performance must be evaluated across the full temperature range. The key metric is the thermal derating factor-the reduction in magnetic force at elevated temperatures:

Parameter	Specification at 25°C	Specification at 155°C	Degradation Threshold
Peak Magnetic Force (0.45mm gap)	62 N ±3%	52 N ±4% (derated)	< 45 N @ 155°C (incomplete lift)
Pull-in Winding Resistance	0.65 Ω ±0.03Ω	0.85 Ω ±0.04Ω	> 0.95Ω @ 155°C (excessive heating)
Hold Winding Resistance	1.50 Ω ±0.05Ω	1.95 Ω ±0.06Ω	> 2.10Ω @ 155°C (insulation stress)
Opening Time (0–90% lift)	1.55 ms	1.85 ms	> 2.10ms (timing retardation)
Closing Time (spill opening)	1.45 ms	1.75 ms	> 2.00ms (overhang condition)
Housing Temperature (steady-state)	N/A	155°C (maximum)	> 170°C (cooling issue)
Permanent Magnet Force Loss (per 100°C)	< 1%	< 5% (cumulative)	> 10% (replace solenoid)

Graphical Abstraction – The "Thermal Derating Curve":
Plot magnetic force vs. solenoid temperature. The force is stable from 20°C to 80°C, then linearly decreases as resistance increases with temperature. At 155°C, the force is 52 N-still above the 45 N minimum required for full valve lift. A solenoid with standard Class F insulation would show a steeper derating curve, dropping below 45 N at 150°C. Our solenoid's Class H insulation allows the full rated current (8A pull-in, 4.0A hold) to be maintained at higher temperatures, preserving the magnetic force curve even in the hottest operating conditions.



The 3500B's extreme thermal environment demands materials that would be over-engineered for smaller engines:

Class H Insulation System: The magnet wire uses a double layer of polyimide (Kapton™) and PTFE insulation, rated for continuous operation at 200°C with a 220°C short-term withstand capability. This provides a 45°C margin over the maximum operating temperature.

High-Temperature NdFeB Magnet: The permanent magnet is a neodymium-iron-boron (N50SH grade) with a maximum operating temperature of 200°C and a reversible temperature coefficient of -0.12%/°C. This is the highest-temperature grade available for high-flux permanent magnets.

Ceramic Coil Bobbin: The winding bobbin is injection-molded from alumina-filled ceramic (not plastic), which maintains its dimensional stability at temperatures up to 300°C and has a thermal conductivity of 25 W/m·K-nearly 50× higher than plastic, aiding in heat dissipation.

Inconel Armature: The armature is machined from Inconel 718, a nickel-based superalloy that retains its mechanical properties at 200°C and has a coefficient of thermal expansion (13.0 ppm/°C) closely matched to the stainless steel housing, minimizing clearance changes with temperature.

Visual Innovation – Temperature Indicator Strip:
Each solenoid includes a thermal indicator strip (similar to a thermocouple) on the housing exterior-a small patch of heat-sensitive material that permanently changes color at 170°C, 185°C, and 200°C. This allows technicians to verify whether the solenoid has been subjected to over-temperature conditions during operation, aiding in failure analysis.



Step 1 – Thermal Pre-Check: Before installation, verify that the engine's oil cooling passages are clear. The 3500B solenoid relies on oil flow through the injector body to carry away heat. A blocked oil port will cause solenoid overheating regardless of the insulation class.

Step 2 – Resistance Measurement: Measure the pull-in winding resistance: 0.65Ω ±0.03Ω. Measure the hold winding resistance: 1.50Ω ±0.05Ω. These readings should be taken at 20°C-if the solenoid has been stored in a warm area, allow it to cool before measurement.

Step 3 – Solenoid Mounting: Position the solenoid over the injector's control valve. The M8 retaining stud requires a 30 N·m torque-significantly higher than smaller solenoid hardware. Use a calibrated torque wrench.

Step 4 – Oil Flow Confirmation: After installation, idle the engine for 10 minutes. Using an infrared thermometer, measure the solenoid housing temperature. It should stabilize at 80–100°C at idle. If it exceeds 120°C at idle, the oil cooling passage is obstructed.

Step 5 – ECM Calibration: Run the "Injector Solenoid Learn" routine in Cat ET. The 3500B ECM will store both the opening and closing response times for each solenoid.



Q1: Our 3516B has a history of solenoid failures at 2,000-hour intervals. The engine room temperature is high. Would this solenoid last longer?
Yes-the Class H insulation and high-temperature NdFeB magnet are specifically designed for high-ambient environments. In marine applications with engine room temperatures of 45–50°C, our solenoid typically lasts 8,000–10,000 hours-double the life of standard solenoids with Class F insulation.

Q2: The operating manual mentions a "solenoid temperature derating" for high-altitude operation. How does this affect us?
At high altitude, the air density is lower, reducing convective cooling from the solenoid housing. The derating factor is approximately 1% per 1,000m above sea level. At 4,000m (common in mining operations), the derating reduces the maximum ambient temperature by 4°C. This is still within the solenoid's operating range, but we recommend monitoring housing temperature with an infrared thermometer at each shift.

Q3: Can I use a C-series solenoid on the 3500B if I adapt the mounting?
No-the C-series solenoid has a shorter stroke (4.2mm max vs. 4.5mm on 3500B) and lower magnetic force (42N vs. 52N at 155°C). The ECM is calibrated for the 3500B solenoid's specific force-current relationship. Using an undersized solenoid will result in incomplete valve lift and significant power loss (5–8%).

Q4: The solenoid has a ceramic bobbin instead of plastic-does this make it more fragile?
Ceramic is more brittle than plastic, but it is also more dimensionally stable at high temperatures. The ceramic bobbin is only used in the high-temperature variant; we have tested it to 50 G shock loading with no fractures. Normal handling during installation is not a concern.

Q5: Our 3500B operates on heavy fuel oil (HFO) with high sulfur content. Does this affect the solenoid?
HFO combustion produces more heat (higher exhaust temperatures) and can cause elevated under-hood temperatures. The solenoid's Class H insulation is rated for the increased thermal load. However, HFO also produces acidic combustion products-we recommend checking the solenoid connector for corrosion at each service interval.

Q6: What's the expected lifespan of the permanent magnet at 155°C?
The N50SH-grade NdFeB magnet has a lifetime force loss of less than 3% after 10,000 hours at 155°C. This is well within the solenoid's acceptable force range-the winding insulation will typically fail before the magnet degrades to the point of requiring replacement.
