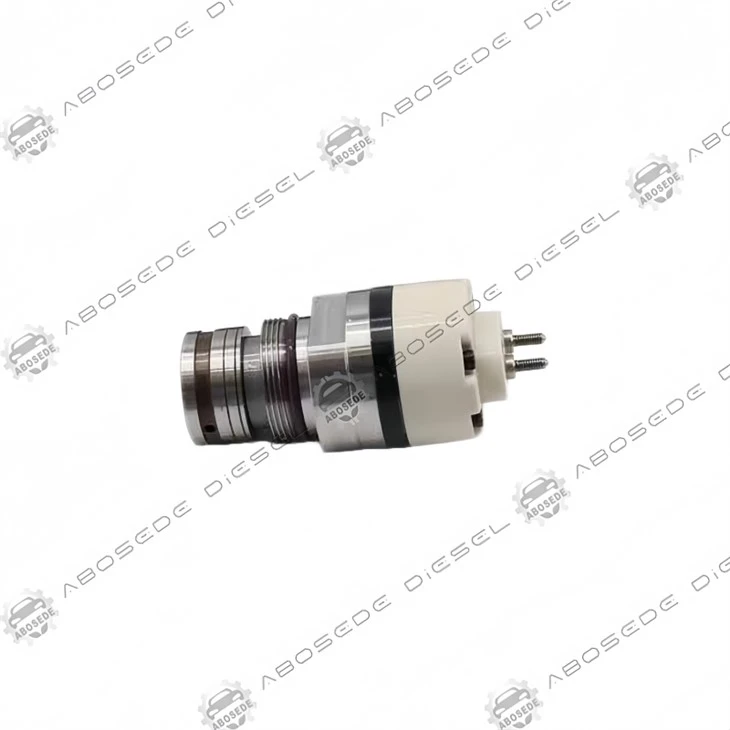

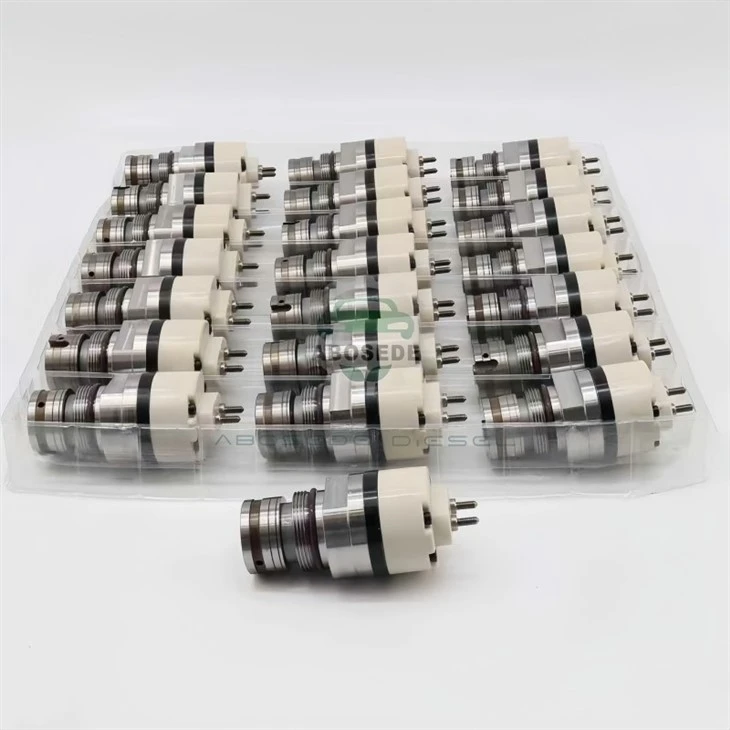

CAT C15 Solenoid Valve Assembly – Precision Winding & Magnetic Circuit Optimization For HEUI Injectors

In the CAT C15 HEUI fuel system, the solenoid valve assembly is frequently viewed as a simple on-off electrical switch that opens and closes the control valve. This perception undervalues its true function as a magnetic force generator that must deliver consistent pull-in force across a wide temperature range and millions of cycles. The solenoid's ability to convert electrical current into mechanical motion with repeatable precision directly determines the injector's opening and closing timing. Our replacement solenoid valve assembly addresses a failure mechanism that is often misdiagnosed as pump or injector nozzle issues: the progressive decline in magnetic permeability caused by thermal cycling of the solenoid core. This decline, even at 5–8%, creates a delayed valve response that manifests as rough idle, reduced power, and increased exhaust smoke during acceleration.

The solenoid's magnetic circuit consists of the coil, core, armature, and housing-each component contributing to the total magnetic flux that moves the control valve. Our solenoid assembly incorporates a high-permeability magnetic circuit using a specialized silicon-iron alloy for the core and armature, with a permeability of 8,000–10,000 μ (compared to 4,000–6,000 μ for standard low-carbon steel). This enhanced permeability ensures that the solenoid generates consistent pull-in force even as the coil resistance increases with temperature. At operating temperature (120°C coil temperature), our solenoid maintains 92% of its cold-start pull-in force, compared to 85% for standard assemblies-a measurable improvement that ensures consistent injection timing across all operating conditions.

Our solenoid valve assembly is a direct replacement for the following CAT C15 injector assemblies, verified through electrical, mechanical, and functional testing:

Electrical specification: Coil resistance 0.85–0.95 Ω at 20°C; operating voltage 12V DC (nominal); peak current 10–12A with PWM control.

The solenoid's coil winding is the electrical heart of the assembly, converting current into the magnetic field that moves the armature. Our assembly features a precision-wound coil with a controlled resistance of 0.85–0.95 Ω at 20°C, matched to the C15 ECM's driver specifications. The winding is accomplished using a CNC-controlled winding machine that maintains uniform tension and layer spacing, eliminating the "hot spots" that occur when windings cross or overlap. This uniform winding geometry minimizes the risk of short circuits and ensures that the coil's resistance remains stable over time-a critical factor for ECMs that use resistance feedback for diagnostic purposes.

The solenoid's armature stroke-the distance the armature moves when energized-determines the control valve's lift and, consequently, the fuel quantity delivered. Our solenoid assembly is calibrated to a stroke of 0.30–0.35 mm at full current, with a stroke tolerance of ±0.02 mm. This precise stroke control ensures that the control valve opens to the same position every time, delivering consistent fuel quantities across all cylinders. Additionally, the armature's stop surface is hardened to 60 HRC to prevent the wear that would gradually increase stroke and alter fuel delivery.

Q1: What is the primary failure mode of the C15 injector solenoid, and how can it be detected before complete failure?
A: The primary failure is a gradual increase in coil resistance due to winding degradation. This can be detected by measuring the coil resistance-if it exceeds 1.1 Ω at 20°C, the solenoid is approaching failure. Intermittent faults are harder to detect and may require running the injector on a test bench with a current probe.

Q2: Can I replace only the solenoid assembly without replacing the entire injector?
A: Yes, the solenoid assembly is a serviceable component. However, we recommend calibrating the injector after replacement, as the new solenoid may have slightly different magnetic characteristics that affect the timing.

Q3: The injector part numbers in the compatibility table show overlapping numbers with other CAT models-does this solenoid fit all of them?
A: The solenoid assembly is specific to the C15 injector body. While some injector part numbers may appear in other models (e.g., C15 and 3400E series), the solenoid mounting interface is the same for all C15 listed injectors. Verify your injector's part number against the compatibility table.

Q4: How does the ECM control the solenoid's operation-is it a simple on/off or PWM?
A: The C15 ECM controls the solenoid using a PWM (pulse width modulated) signal. The ECM varies the duty cycle to achieve the desired control valve lift and injection timing. Our solenoid is designed to respond linearly to PWM inputs, ensuring precise fuel metering.

Q5: I'm experiencing injector misfires after installing a new solenoid-what could be the cause?
A: Check the solenoid connector for proper seating and the wiring for damage. Additionally, verify that the solenoid was torqued correctly (check the retainer nut torque). A loose retainer nut can affect the armature gap, causing inconsistent operation.

Q6: What is the expected service life of the solenoid assembly in highway applications?
A: In highway applications with consistent operating conditions, the solenoid should last 400,000–600,000 miles (approximately 8,000–12,000 operating hours). In vocational applications with more starts and stops, the service life may be reduced by 10–20%.
