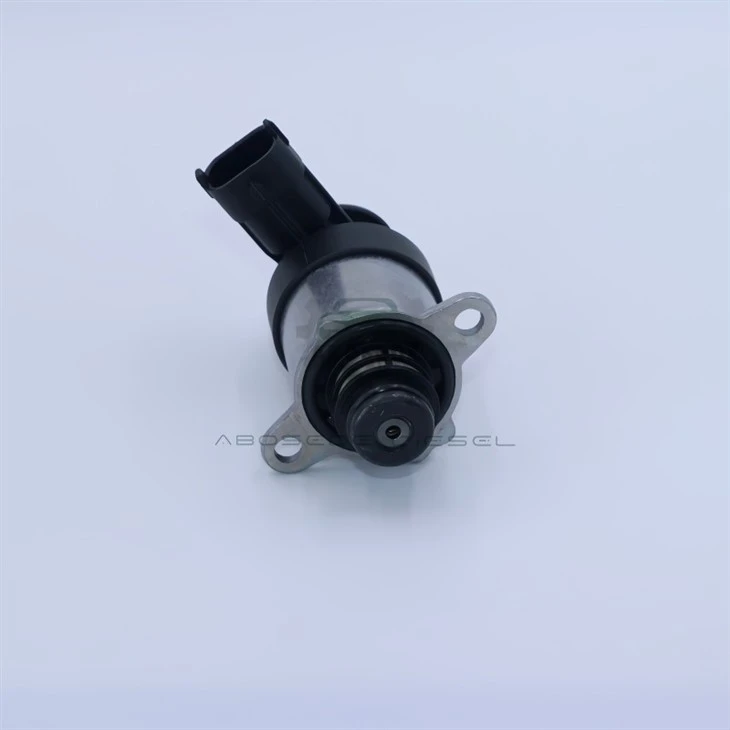

Bosch 0928400848 – The Metering Valve That Pre-Positions For The Next Start

Every common-rail diesel driver has experienced it: a perfect start one morning, and a hesitant, extended crank the next, with no obvious explanation. Often, the culprit is not the battery, not the starter, and not even the fuel quality - it is the metering valve's position when the engine was last switched off. The 0928400848 is engineered with a specific armature stop and spring pre-load that ensure the valve returns to a defined "start-ready" position after shutdown. This means that when the key is turned, the valve is already in the correct position to allow maximum flow for cranking, regardless of the duty cycle at shutdown. It does not simply respond to the start command; it prepares for it.

When the engine is running, the metering valve armature is held in a position determined by the duty cycle. When the ignition is switched off, the coil de-energises, and the spring pushes the armature to the fully open position. But the armature does not stop instantly - it moves, and it may bounce against the stop before settling. The position it finally settles in, and the condition of the stop surface, determine how quickly the valve opens on the next start. If the stop is worn or if the armature has a small residual magnetism that holds it slightly closed, the valve may not open fully during the first cranking revolutions, delaying the pressure build. The 0928400848 uses a hardened armature stop and a calibrated spring that ensures the armature settles to the same position every time, with minimal bounce. It also includes a non-magnetic spacer that eliminates the residual magnetism that would otherwise hold the armature in a closed position.

The armature stop is the surface against which the armature rests when the valve is fully open. The stop must be flat, smooth, and perpendicular to the armature axis to ensure that the armature does not tilt when it lands. The 0928400848 uses a stop that is ground to a flatness of 0.5 µm and coated with a hard chrome layer that resists wear. The spring is pre-cycled during manufacture to stabilise its length and tension, and the spring rate is selected so that the armature decelerates gently before reaching the stop, minimising bounce. The non-magnetic spacer is positioned between the armature and the stop, creating a small air gap that prevents the armature from sticking to the stop due to residual magnetism. This air gap is critical – without it, the armature would remain partially closed after shutdown, reducing the flow available for the next start.

The most common failure in the 0848 related to shutdown positioning is wear on the armature stop. Over time, the repeated impact of the armature against the stop creates a small indentation, and the armature settles in a slightly different position. This wear changes the armature's rest position, affecting the flow at the next start. The genuine 0928400848 uses a hardened stop that resists this wear, and the spring's pre-load is selected to reduce the impact velocity. The non-magnetic spacer also reduces the wear by preventing the armature from sticking and then releasing abruptly. In a generic valve, the stop may be unhardened, and the spring may be stiffer, leading to increased wear and a gradual degradation of the starting performance.

Installing the 0848 is similar to other CP4 valves - clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 23 Nm ± 2 Nm. However, there is a specific step: inspect the stop surface in the pump bore before installation. The pump bore contains the stop pin that the armature contacts in the fully open position. If this pin is worn or damaged, it can affect the armature's rest position even with a new valve. The pin is not a replaceable component in the pump, so if it is worn, the pump body must be replaced. To inspect it, use a small mirror and a light source to view the stop surface - it should be flat and smooth. If it is pitted or indented, the pump is at the end of its service life. The 0848 is designed to work with a worn stop, but the improvement will be less than with a new pump.

Q1: How can I tell if my valve's shutdown positioning is affecting the start without using lab equipment?
→ After a hot shutdown (engine at operating temperature), wait 10 seconds and then restart. If the engine cranks noticeably longer than it does on a cold start, the armature may be sticking to the stop due to residual magnetism. A well-functioning 0848 will start the same whether it is hot or cold.

Q2: Can I use the 0928400848 on a VW Touareg that originally used the 0791?
→ Yes, in most CP4.2 applications. The 0848 is the latest generation with the improved shutdown positioning, and it is a direct replacement for the 0791 in many applications. However, always verify compatibility with the engine's calibration.

Q3: Why does my engine have a long crank time only on the first start of the day, but start normally after that?
→ This is often a symptom of a valve that does not have a defined start-ready position. The armature may have been left in a partially closed position by residual magnetism. The 0848's non-magnetic spacer is designed to prevent this.

Q4: What is the most common cause of the armature stop becoming worn in this valve?
→ The repeated impact of the armature against the stop, especially if the spring is stiffer than the nominal specification. The 0848 uses a spring with a selected pre-load to minimise the impact velocity, reducing the wear rate.

Q5: I replaced the valve with a genuine 0848, but the start time is still longer than expected - what should I check?
→ Check the stop surface in the pump bore for wear. If the pin is worn, the valve cannot position itself correctly even if the valve itself is new. Also, check the battery voltage during cranking - if it drops below 9.5 V, the valve will not open fully, regardless of its start-ready position.

Q6: Does the non-magnetic spacer need to be replaced when the valve is serviced?
→ The spacer is an integral part of the valve assembly and cannot be serviced separately. If the spacer is worn, the entire valve must be replaced. The 0848's spacer is designed to last the full service life of the valve.
