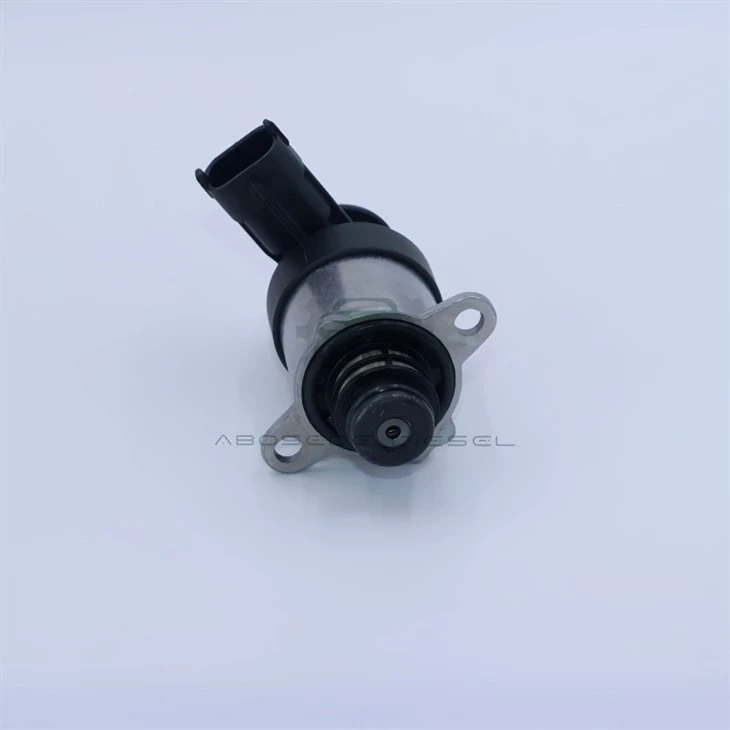

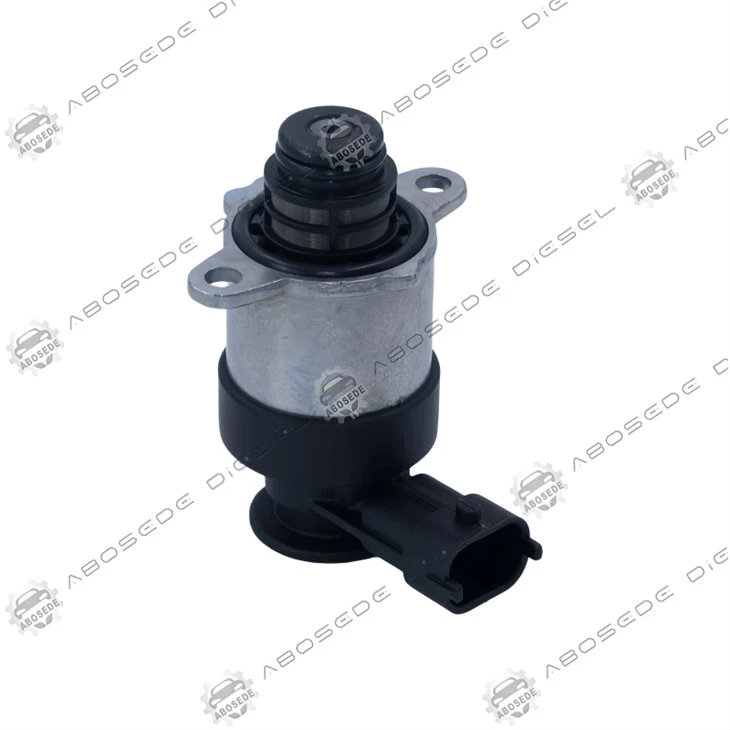

Bosch 0928400682 – The Metering Valve That Maintains Signal Integrity Under Electrical Interference

The PWM signal that controls a metering valve travels from the ECU through a wiring harness that runs alongside alternator cables, injector drivers, and other high-current circuits. Along this path, the signal can be corrupted by electromagnetic interference-voltage spikes, noise, and ground offsets that change the effective current reaching the coil. If the valve responds to this corrupted signal, its armature moves at the wrong time or to the wrong position, introducing a metering error that the ECU cannot detect. The 0928400682 is engineered with an electromagnetic compatibility (EMC) design that filters out high-frequency noise and maintains stable operation even in electrically noisy environments. It does not simply receive the signal; it receives the signal cleanly, ensuring that the ECU's command is executed as intended.

The ECU generates a PWM signal at a frequency of 140–200 Hz, but the wiring harness can pick up noise at much higher frequencies-from the alternator, from the injector drivers, and from other solenoids in the engine bay. This noise can superimpose on the PWM signal, creating a current waveform that does not match the ECU's intended pattern. The coil current determines the magnetic force, and the magnetic force determines the armature position. If the current includes noise, the armature position includes noise-a small high-frequency vibration that does not change the average position but increases the wear on the armature guide and can cause a slight variation in the flow rate. The 0928400682 is designed with a coil that includes an internal snubber circuit-a combination of a resistor and a capacitor that filters out frequencies above 1 kHz. This snubber is integrated into the coil assembly and is not visible from the outside, but it is a critical component of the valve's performance in electrically noisy environments.

The snubber circuit is connected across the coil terminals and consists of a resistor and a capacitor in series. The resistor limits the current through the capacitor, and the capacitor provides a low-impedance path for high-frequency noise-any signal above approximately 1 kHz is shunted through the capacitor and dissipated as heat in the resistor, while the PWM signal at 140–200 Hz passes through the coil unaffected. This filtering is effective against the noise generated by the alternator's rectifier (which operates at several kHz) and by the injector drivers (which can create spikes at 2–5 kHz). The snubber also reduces the voltage spike that occurs when the ECU switches the valve off-the inductance of the coil creates a flyback voltage that can reach 60–80 V, and the snubber limits this to approximately 40 V, reducing the stress on the ECU's driver circuit.

The snubber circuit is a solid-state component with no moving parts, but it can fail-the capacitor can lose its capacitance over time, or the resistor can change value. When the snubber fails, the valve becomes susceptible to electrical noise, and the armature can respond to the noise as if it were a legitimate command. The first symptom is often a slight vibration in the fuel pressure trace-a high-frequency ripple that is not correlated with engine speed. This ripple is small and does not trigger a fault code, but it accelerates the wear on the armature guide and can eventually cause a P0090 code. The genuine 0928400682 uses a snubber with components that are rated for 150 °C operation and that are encapsulated in a high-temperature epoxy that protects them from fuel and moisture. This encapsulation ensures that the snubber remains functional for the full service life of the valve.

Installing the 0682 is similar to other CP4 valves-clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 23 Nm ± 2 Nm. However, there is a specific step that is important for EMC protection: check the wiring harness connector for corrosion and proper shielding. The snubber inside the valve cannot compensate for a poor connection-if the connector is corroded, the resistance at the connection can create additional noise that the snubber cannot fully attenuate. Use a contact cleaner on the connector pins, and ensure the connector locks securely with no play. Also, verify that the wiring harness shield (if present) is connected to ground at the ECU end-a floating shield can act as an antenna and actually increase the noise on the signal line.

Q1: How can I tell if my valve is affected by electrical noise without special equipment?
→ Use an oscilloscope to measure the voltage across the valve terminals at idle. If the waveform shows sharp spikes or high-frequency oscillations that are not present at the ECU output, the wiring or the valve's EMC protection is degraded. A well-functioning 0682 will show a clean PWM waveform with minimal noise.

Q2: Can I install the 0928400682 on a VW Touareg that originally used the 0727?
→ Yes, in most applications. The 0682 is the later generation with EMC filtering, and it is a direct replacement in many CP4.2 applications. However, always verify with your vehicle's application guide, as some engines have specific ECU calibrations that are not compatible with the different snubber characteristic.

Q3: Why does my valve show a noisy current waveform only when the engine is running, not when it is static?
→ The alternator and injector drivers are the primary sources of noise, and they are only active when the engine is running. The 0682's snubber is designed to filter this noise. If the waveform is noisy with the engine running, the snubber may be degraded-the capacitor has lost capacitance or the resistor has changed value.

Q4: What is the most common cause of snubber failure in this valve?
→ Thermal cycling. The snubber is mounted inside the coil assembly, where it is exposed to temperatures up to 135 °C. The capacitor can dry out over time, and the resistor can develop cracks in the solder joints. The 0682 uses high-temperature components and epoxy encapsulation to resist this degradation.

Q5: I replaced the valve, but the rail pressure still shows a high-frequency ripple that was not present before-is the valve defective?
→ Before suspecting the valve, check the wiring harness for chafing or poor grounding. The ripple may be caused by a wiring issue that the new valve cannot mask. Also, verify that the ECU's ground connections are clean and secure-a poor ground can introduce noise into all signals.

Q6: Does the snubber affect the valve's response time?
→ No. The snubber only filters high-frequency noise above 1 kHz. The PWM signal is at 140–200 Hz, which is well below the snubber's cutoff frequency, so the signal passes through without attenuation. The response time of the 0682 is comparable to that of the 0727-approximately 14 ms opening delay at 12 V.
