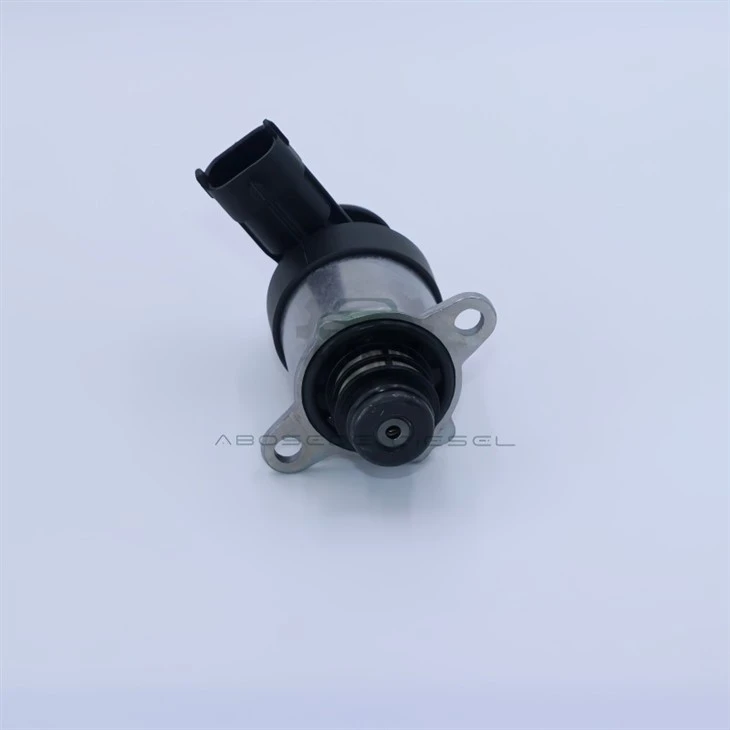

0928400672 Bosch Fuel Metering Valve – Phantom Fault Elimination & Diagnostic Confidence For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

The 0928400672 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. One of the most frustrating experiences for a technician is chasing an intermittent fault code. The check engine light comes on during a shift, a P0087 or P0089 is stored, but by the time the truck reaches the workshop, the engine runs perfectly. The fault will not reproduce on demand. These phantom codes are often caused by a metering valve that behaves unpredictably - a coil that intermittently shorts when hot, a spool that sticks momentarily and then frees itself, or a connector pin that loses contact for a split second. The 0928400672 is built to eliminate the root causes of these electrical and mechanical intermittents, giving technicians consistent, predictable behavior that either confirms the valve is healthy or points clearly to another component. This diagnostic confidence reduces hours spent on guesswork and avoids unnecessary parts replacement. This valve fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

An intermittent fault code on a working truck creates a dilemma. The driver reports no drivability symptoms, yet the stored code means the engine computer detected a problem severe enough to log an event. If the workshop cannot reproduce the fault, the technician must decide: replace the suspected component based on the code, or return the truck to service and risk a repeat failure - perhaps under less convenient circumstances. Metering valve-related codes like P0087 (rail pressure too low) and P0089 (fuel pressure regulator performance) are common sources of this dilemma. The valve may function correctly for days, then deviate just long enough to cross the diagnostic threshold. The causes are often subtle: a coil winding that develops a momentary short when thermal expansion moves two damaged wires together, a spool that sticks in its bore after a period at a specific duty cycle, or a connector terminal that loses contact during a particular vibration frequency. The 0928400672 addresses these potential intermittents through design choices that prioritize consistency.

The solenoid coil inside the 0928400672 is wound with high-temperature-rated magnet wire and vacuum-impregnated with epoxy. This eliminates the air gaps between wire turns where moisture can condense and where partial discharge can initiate. Without air pockets, the wires cannot move relative to each other under vibration. The result is a coil that maintains a stable resistance - 2.5 to 3.5 ohms at 20°C - and does not develop the temperature-dependent intermittent shorts that plague coils with lower-quality insulation. The two-pin electrical connector uses gold-plated terminals. Gold does not form the high-resistance oxide layer that tin terminals develop over time. This prevents the momentary open circuits that occur when a corroded terminal briefly loses contact during a vibration spike. For the technician, this electrical stability means a quick multimeter check provides a definitive answer: if the resistance is in specification and there is no continuity to ground, the electrical circuit is not the source of an intermittent fault.



On the mechanical side, the spool inside the 0928400672 is coated with Diamond-Like Carbon. This coating provides a coefficient of friction low enough that the spool does not stick in its bore, even after long periods at a constant duty cycle. Stick-slip - where the spool seizes momentarily and then jumps - is a common cause of intermittent rail pressure spikes and dips. The DLC coating eliminates the root cause by preventing the spool from ever reaching the static friction threshold that leads to sticking. The return spring is stress-relieved and pre-set at the factory to maintain its preload over millions of cycles. A spring that fatigues unevenly can cause the spool to close at different rates depending on temperature, leading to intermittent zero-flow calibration drift. The 0928400672's spring retains over 98% of its original preload throughout its service life, ensuring the valve returns to the same closed position every time the engine computer commands zero duty cycle.

When a component is consistent, diagnosing it becomes straightforward. The 0928400672 produces a stable hot idle duty cycle - typically 18–25% - and a rail pressure trace that holds within ±3 MPa at steady state. If a truck arrives with an intermittent P0087 or P0089, and the metering valve's hot idle duty cycle and rail pressure stability are within these norms, the technician can confidently look elsewhere: to the fuel filter, the lift pump, an injector with an intermittent internal leak, or a wiring harness with a damaged conductor. If the valve's duty cycle is elevated above 30% or the rail pressure shows random spikes and dips not correlated to engine load changes, the valve itself is the likely source. This clear distinction saves diagnostic time and prevents the replacement of good components while the real problem remains hidden.

Q1: My truck occasionally logs a P0089 code, but the engine runs fine and the code clears itself. Should I replace the metering valve?

Not necessarily. First, check the hot idle duty cycle and rail pressure stability. If both are within normal limits (18–25% duty cycle, steady rail pressure), the valve is likely healthy. Look for other causes: a clogged fuel filter, a weak lift pump, or a wiring harness with an intermittent open circuit.

Q2: Can a loose electrical connector cause an intermittent metering valve fault?

Yes. A connector that is not fully seated can cause momentary open circuits that the engine computer interprets as a valve fault. The 0928400672's gold-plated terminals resist corrosion, but the connector must still be properly latched. Always check the connector locking tab during diagnosis.

Q3: How can I tell if an intermittent fault is caused by the metering valve or a failing engine computer driver circuit?

Monitor the voltage at the valve's electrical connector during operation. If the voltage drops or becomes erratic while the fault occurs, the driver circuit or wiring may be the issue. If the voltage is stable but the rail pressure deviates, the valve is more likely the cause.

Q4: Will the 0928400672 eliminate all intermittent fuel system faults?

It eliminates the electrical and mechanical intermittents that originate within the metering valve itself. It cannot fix intermittent faults caused by damaged wiring, a failing lift pump, or air in the fuel. The valve's consistent behavior helps isolate those external causes more quickly.

Q5: What is the most common cause of an intermittent P0087 code?

A P0087 code indicates rail pressure too low. Intermittent causes include a momentarily sticking metering valve, a fuel filter that is partially clogged and restricts flow under high demand, or air entering the fuel system through a loose connection. The 0928400672's low-friction spool eliminates the sticking cause.

Q6: Does the 0928400672 need to be calibrated to the specific truck to avoid intermittent codes?

No. The valve is mechanically calibrated at the factory. The standard ECM fuel trim reset after installation is the only required step. The valve will operate consistently without additional programming.
