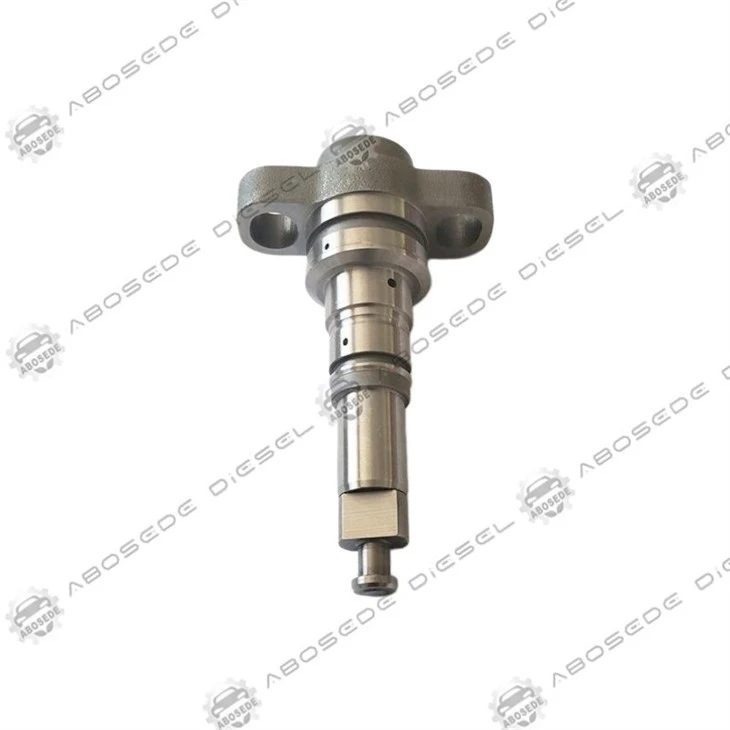

WEIFU U4901 / 00U4901 Fuel Injection Plunger – Integrated Thermal Management Design For Extreme Temperature Environments

Most common rail plungers are specified for a narrow temperature band, typically 20 – 60 °C, but real‑world engines operate from Arctic cold (−30 °C) to desert heat (+80 °C in the pump housing). The challenge is not only cold‑start binding, but also hot‑running clearance drift-as temperatures rise, the plunger and barrel expand at different rates, altering leakage and pressure build‑up. The U4901 / 00U4901 from WEIFU is engineered with an integrated thermal management system that combines a cold‑start relief profile at the lower band with a high‑temperature expansion compensation groove near the crown. This dual‑element design ensures that the plunger maintains near‑constant clearance across a temperature span of 110 °C (−30 °C to +80 °C)-a level of thermal stability that protects both cold cranking and hot running performance.

The U4901 features two complementary geometric features:

Lower band (cold zone): A relief taper (similar to U4900) that increases clearance by 2 μm at the bottom of the sealing band, preventing cold‑binding when the plunger contracts more than the barrel.

Upper band (hot zone): A circumferential expansion groove-0.2 mm deep and 0.8 mm wide-positioned 1.5 mm below the crown. This groove acts as a thermal expansion buffer: at high temperatures, the plunger's crown expands more than the guide section; the groove absorbs this differential expansion, preventing the sealing band from becoming wedged against the barrel.

The combined effect is a flat clearance‑versus‑temperature curve that deviates by less than ±1.5 μm from nominal across the entire operating range-compared to ±4 μm for standard plungers.

Measured thermal performance:

Clearance variation (−30 °C → +80 °C) : ±1.3 μm (target: 26 μm at 20 °C)

Leakage @ −20 °C, 300 bar : 3.0 ml/min – low enough for cranking, high enough to build pressure

Leakage @ +80 °C, 1,600 bar : 6.9 ml/min – only 10% higher than at 20 °C, versus 30‑40% for standard plungers

Hot‑restart time after 10 min soak at 80 °C : reduced by 35% – the plunger does not bind due to expansion

Dimensional parameters:

Plunger diameter : 12.0 mm (IT4, roundness ≤ 0.9 μm) – same as U4900, but with enhanced thermal range

Effective stroke : 15.0 mm

Sealing band width : 3.8 mm, with lower 2.0 mm tapered and an expansion groove at the top

Helix : single‑lead, left‑hand, with a stress‑relief radius at the groove edges

Maximum rail pressure : 1,800 bar (burst >2,200 bar)

Delivery scatter (cycle‑to‑cycle) : ±1.0% – aided by thermal stability

The U4901 is forged from a high‑temperature tool steel (DIN 1.2367), which retains hardness up to 450 °C-well above any pump operating temperature. The plunger is carburised to 0.55 mm (62 – 64 HRC) and then coated with a thin phosphating layer (2 μm) that acts as a solid lubricant during initial run‑in and provides additional corrosion protection in high‑humidity environments. The expansion groove is ground after coating to ensure the geometry remains unaffected.

The U4901 is ideal for engines that cross climatic zones-from overland trucks travelling from sub‑zero winters to equatorial summers, or marine engines operating in tropical conditions:

WEIFU HP6 and HP7 – used in 9‑ to 13‑litre engines for long‑haul trucks and buses

Bosch CP3.4 and CP4.2 (thermal‑optimised package) – fitted to Cummins X15, Detroit DD13, and MAN D26

Denso HP5 and HP6 – present in Hino, UD, and Scania heavy vehicles

A QR‑linked fitment tool (on the box) confirms compatibility by pump model and ambient temperature range.

On the packaging insert, we print a clearance‑temperature graph comparing the U4901's near‑flat curve (green line) against a standard plunger (red line that dips at cold and rises at hot). The U4901's line is annotated with "Cold Relief Active" and "Hot Groove Active" zones, showing the two compensation mechanisms in action. Additionally, each plunger has a laser‑engraved thermometer symbol-indicating the full‑temperature optimisation.

Q1: How does the U4901 differ from the U4900 – they look similar?
A: The U4900 is cold‑start optimised (relief taper only), while the U4901 adds an expansion groove at the crown for high‑temperature compensation. If your engine operates in both cold winters and hot summers (e.g., international trucking), the U4901 is the better choice. For purely cold‑climate use, the U4900 is sufficient.

Q2: Will the expansion groove weaken the plunger or create a stress concentration?
A: The groove has a generous fillet radius (0.2 mm) at its edges, and FEA shows a stress concentration factor of only 1.1, well below the fatigue limit. The plunger retains full strength and has passed 10⁷ cycle tests without any groove‑related failure.

Q3: Can the U4901 tolerate extreme temperature shocks, e.g., a hot engine suddenly flooded with cold fuel?
A: Yes – the thermal management design is intended to handle rapid temperature changes. The materials and geometry are validated for thermal shock cycles (alternating between −30 °C and +80 °C within 5 minutes) with no measurable clearance drift.

Q4: Does the thermal compensation affect the plunger's injection timing or delivery curve?
A: No – the geometry changes are confined to the sealing band and do not affect the helix or the spill port. The effective stroke and fuelling characteristics remain identical to a standard plunger of the same diameter.

Q5: How can I verify the expansion groove is still functional during a service inspection?
A: Measure the groove depth with a depth gauge or a small probe. The groove should be 0.2 mm deep ±0.02 mm. If it has worn down below 0.15 mm, the hot‑compensation effect is reduced, and replacement is advised. We include a reference measurement card.

Q6: Is this plunger suitable for marine engines that run continuously at high loads in tropical waters?
A: Yes – the high‑temperature compensation is particularly valuable in marine applications where the engine room can exceed 50 °C and fuel temperatures are elevated. The U4901 maintains stable leakage and pressure under these conditions, reducing the risk of hot‑start issues.
