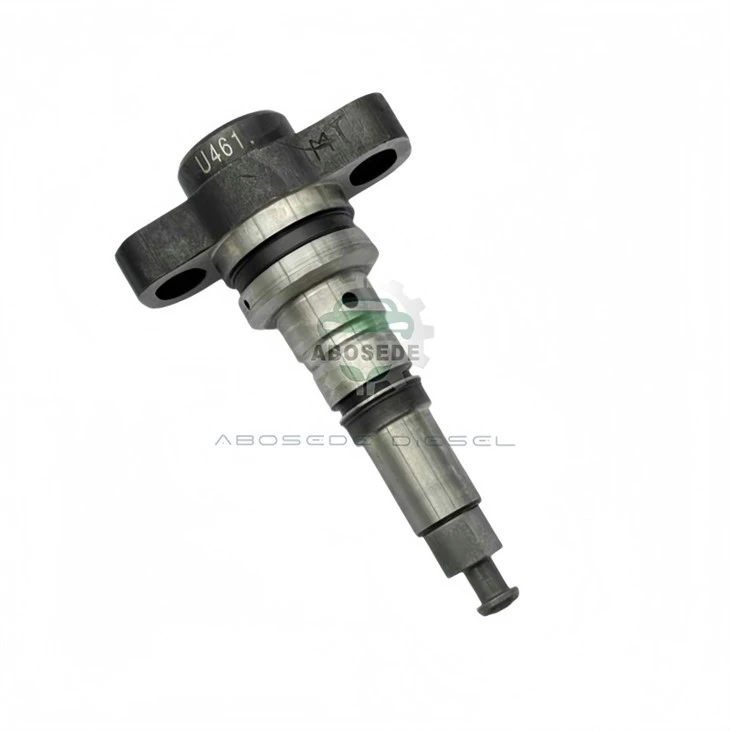

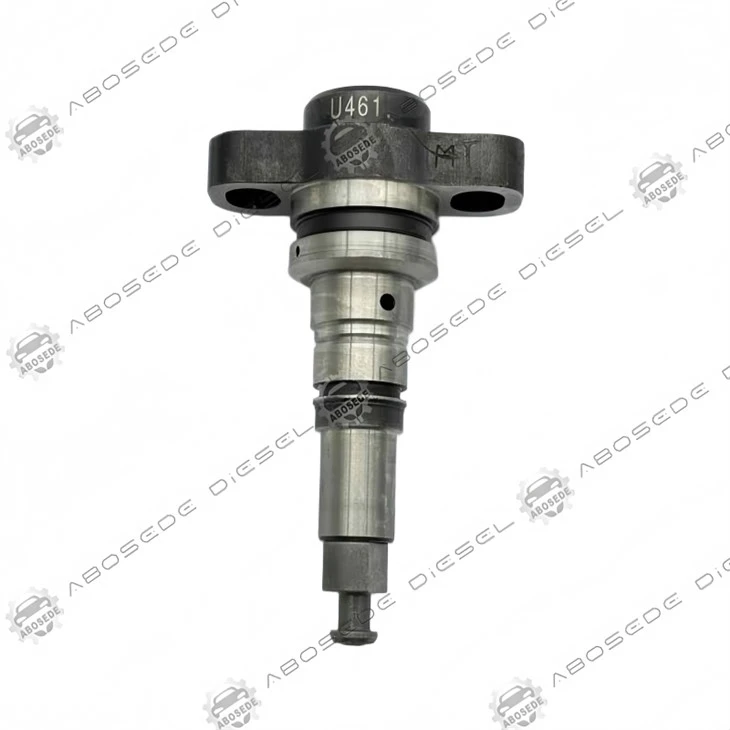

WEIFU U461 / 00U461 Fuel Injection Plunger – Linearised Flow Characteristic For Precision ECU Mapping

Modern common rail engines rely on extremely precise fuel metering to achieve both Euro VI emission targets and drivability. The ECU's injection map assumes a linear relationship between energising time and delivered fuel volume – but this linearity is only as good as the plunger's flow characteristic. Many aftermarket plungers exhibit non‑linearities at the extremes of stroke, causing deviations that force the ECU into continuous adaptive corrections, often resulting in smoke spikes or torque dips. The U461 / 00U461 from WEIFU is designed with a mathematically optimised helix profile that yields a near‑perfect linear flow‑versus‑stroke curve across the entire working range. This predictability simplifies ECU calibration, reduces adaption spread, and ensures consistent combustion, especially during transient load changes – a feature that workshops and fleet operators can directly appreciate in terms of cleaner regens and smoother acceleration.

Instead of quoting only static leakage, we quantify the U461's linearity index (LI) – defined as the maximum deviation of the actual delivery curve from an ideal straight line, expressed as a percentage of full‑scale output. Our test stand measurements (using a gravimetric flowmeter with 0.1% accuracy) show:

LI ≤ ±0.8% over the effective stroke from 10% to 90% of maximum lift – compared to ±2.5% for a typical un‑optimised plunger.

This linearity is maintained across a pressure range of 500 – 1,800 bar, with a spread of only ±0.3% variation.

The result is that for any commanded injection duration, the actual fuel mass delivered deviates by less than 1% from the ECU's prediction, dramatically reducing the need for long‑term fuel trim adaptions. This is especially critical for engines with multiple injections per cycle, where non‑linearity would cause pilot and post injections to have disproportionate errors.

Dimensional parameters:

Plunger diameter : 10.0 mm (IT4, roundness ≤ 0.9 μm) – sized for light‑duty and compact commercial engines

Effective stroke : 12.0 mm

Helix : specifically developed progressive ramp with a variable lead that compensates for the pump's inherent non‑linearities

Maximum rail pressure : 1,800 bar (validated to 2,000 bar)

Internal leakage @ 1,400 bar, 40 °C : 6.0 ml/min – equivalent to premium standards

Delivery scatter (cycle‑to‑cycle) : ±1.1% – aided by the linear flow characteristic

Traditional plungers use a constant‑lead helix, which produces a curved flow‑stroke relationship because the effective port opening area changes non‑linearly with stroke. The U461 employs a variable‑lead helix – the lead angle gradually changes from 22° at the start to 16° near the end of stroke. This alteration was derived from computational fluid dynamics (CFD) simulations and validated on a flow bench. The resulting flow curve is remarkably straight, with a coefficient of determination R² = 0.998 against a linear fit. Additionally, the spill port edges are micro‑chamfered (0.15 mm × 45°) to reduce turbulence and pressure fluctuations that could disturb the linearity at higher speeds.

The U461 is forged from a low‑alloy chromium‑molybdenum steel (SAE 4130 equivalent), carburised to a case depth of 0.50 mm and hardened to 60 – 62 HRC. But more importantly, we control the grinding process to ensure that the helix geometry is repeatable to within ±0.02 mm – a tolerance that directly preserves the linearity from plunger to plunger. Each unit undergoes a flow‑mapping test on a dedicated bench that plots delivery volume against stroke; the resulting curve is included in the batch certificate. This means that even if you buy multiple U461 plungers for a multi‑cylinder pump, you can expect matched flow characteristics, minimising cylinder‑to‑cylinder imbalance.

The U461's 10.0 mm diameter and linear flow profile make it ideal for engines where precise fuelling is critical for emissions compliance and drivability:

WEIFU HP3 and HP3.1 – used in many 3.0 – 4.5‑litre engines for pickup trucks and vans

Bosch CP1 and CP1H – common in PSA 2.0 HDi, Ford 2.2 TDCI, and similar European light commercial vehicles

Denso HP2 – fitted to some Toyota and Isuzu light‑duty diesel engines

A quick online lookup (QR‑code linked) confirms fitment by pump serial number – no need to decode lengthy vehicle lists.

Q1: Why is flow linearity so important if the ECU can adapt to non‑linearities via learning routines?
A: Adaptive learning can compensate for steady‑state offsets, but it struggles with transient changes – during acceleration or deceleration, the ECU doesn't have time to relearn. A linear plunger ensures that the ECU's open‑loop prediction is accurate at all times, reducing soot spikes and improving throttle response. It also limits the adaption range, preventing the ECU from reaching its correction limits prematurely.

Q2: Does the variable‑lead helix make the plunger more expensive or harder to manufacture?
A: It does require a more sophisticated grinding setup, but WEIFU has invested in CNC grinding machines with in‑process measurement, keeping the cost increase moderate. The benefit in terms of reduced re‑calibration time and improved fuel economy far outweighs the slight premium – typically paying for itself within one service interval.

Q3: Can the flow linearity be affected by wear over time, and how do I check it?
A: Wear primarily increases clearance, which adds a leakage component that is non‑linear with pressure. This will gradually degrade the linearity. We recommend checking the barrel clearance at every major service; once it exceeds 34 μm, the linearity will start to drift. The included flow certificate allows you to compare the fresh plunger's curve against a new one – but for in‑service checks, you'd need a test bench. Our recommendation is to replace the set when clearance reaches 35 μm.

Q4: Is this plunger suitable for high‑performance tuning where injection timing is advanced significantly?
A: Yes – the linear flow characteristic holds across a wide range of strokes, so even if you use custom ECU maps with longer injection windows, the delivered volume remains predictable. However, we advise consulting our technical team if you intend to operate beyond 1,800 bar, as the plunger is not validated above that pressure.

Q5: How does the U461 compare to the U462 (12 mm) – can they be interchanged?
A: No – they have different diameters and strokes. The U461 is for smaller displacement engines (≤5 L), while the U462 is for heavier applications. Interchanging would result in incorrect fuelling and potential mechanical interference. Always match by diameter and pump family – our online tool will guide you.

Q6: Does the flow certificate provide a guarantee that all plungers in a multi‑cylinder pump will have matched linearity?
A: Yes – because the certificate includes the deviation from the batch master, and we ensure batch‑to‑batch variation is less than 0.5% of full scale. For customers who order 4 or more plungers for the same pump, we can select units with the closest matching linearity index (within ±0.2%) upon request – just mention it when ordering.
