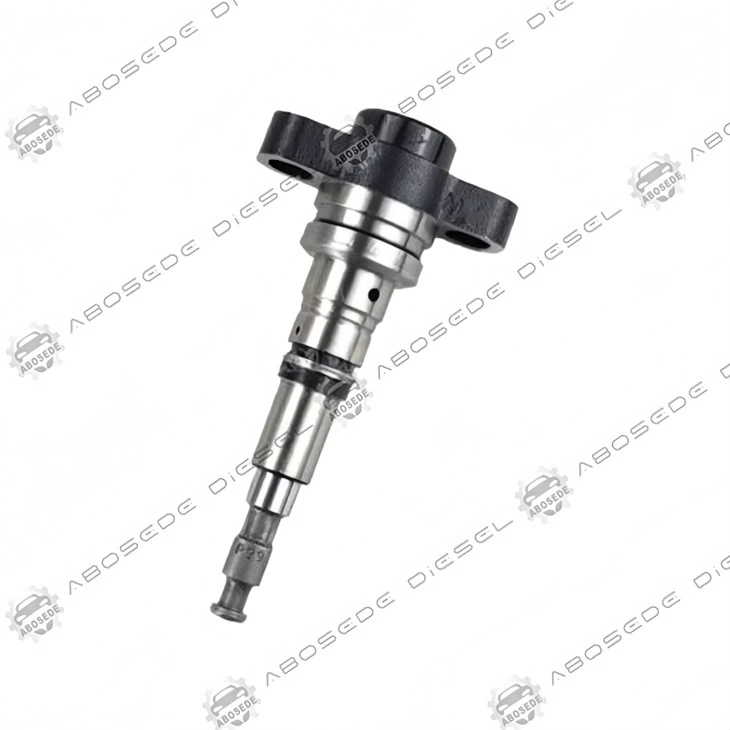

WEIFU U1001 Fuel Injection Plunger – PVD‑Coated Surface For Extreme Wear Resistance in Low‑Lubricity Fuels

Global diesel fuel specifications have shifted towards ultra‑low sulphur content (≤10 ppm) and increasing proportions of renewable components like HVO and biodiesel. While beneficial for emissions, these fuels possess significantly reduced lubricating properties-often 30‑40% lower film‑forming capability compared to traditional high‑sulphur diesel. This accelerates adhesive wear on uncoated plunger surfaces, leading to premature leakage and pressure loss. The U1001 from WEIFU addresses this head‑on with an advanced Physical Vapour Deposition (PVD) coating-a chromium nitride (CrN)‑based layer that not only increases surface hardness but also provides a low‑friction, chemically inert barrier against the aggressive by‑products of renewable fuels. Rather than relying on bulk material upgrades, this coating approach delivers a step‑change in durability without altering the plunger's dimensional precision.

The U1001 receives a dual‑layer PVD coating: a base layer of chromium nitride (CrN, 2 μm thick) for adhesion and corrosion resistance, topped with a tungsten carbide/carbon (WC/C) topcoat (1.5 μm) that offers self‑lubricating properties due to its graphitic carbon content. The total coating thickness of 3.5 μm is uniformly applied via arc‑evaporation in a vacuum chamber, ensuring excellent coverage even on the helix edges. The resulting surface properties are:

Vickers hardness : 2,200 HV (equivalent to ≈68 HRC) – significantly harder than the substrate (58 HRC)

Coefficient of friction (against hardened steel, lubricated with EN590): 0.045 – a 35% reduction compared to uncoated carburised plungers

Wear rate (pin‑on‑disc, 50 N load, 500 m sliding): 0.6 × 10⁻⁶ mm³/Nm – approximately half the value of conventional nitrided surfaces

Scuffing resistance : tested to 2,500 bar contact pressure with no adhesive damage, compared to scuffing at 1,800 bar for uncoated samples

These coatings are validated for compatibility with aggressive fuel additives, including those used in biodiesel (B100) and FAME‑containing blends, with no measurable degradation after 1,000 hours of immersion at 80 °C.

Despite the coating, the U1001 maintains the same outer diameter tolerances required for precise barrel fitment:

Plunger diameter : 10.5 mm (IT4, roundness ≤ 1.0 μm) – a smaller size targeting medium‑duty and off‑highway applications

Effective stroke : 13.0 mm

Helix : single‑lead, left‑hand, with a polished spill port for smooth flow transition

Maximum rail pressure : 1,800 bar (coating integrity verified up to 2,200 bar hydrostatic)

Internal leakage @ 1,400 bar, 40 °C : 6.2 ml/min – the coating's low friction does not alter clearance, so leakage remains standard

Delivery consistency cycle‑to‑cycle : ±1.0% – the uniform coating ensures no localized wear that could disturb injection uniformity

All coating thickness and adhesion are verified by a Calotest (ball‑crater method) on every batch, with a minimum adhesion class HF1 per VDI 3198.

The U1001 is specifically designed for 5.0 – 8.0‑litre engines commonly found in agricultural tractors, construction equipment, and medium‑duty trucks. It directly replaces plungers in:

WEIFU HP4 and HP4.1 – used in many Chinese‑built farm machinery and gensets

Bosch CP3 (small variant) – fitted to Cummins QSB 5.9, John Deere 6.8L, and Perkins 1106 series

Denso HP3 – present in some Yanmar and Kubota off‑road engines

For workshops, the U1001 covers over 45 OEM references, and we provide a colour‑coded fitment chart (included) that highlights the pump families where the coating delivers maximum benefit-especially those running on high‑biodiesel content.

The CrN base layer has a distinctive golden‑bronze hue, while the WC/C topcoat imparts a slightly darker, graphite‑grey finish. Over time, as the topcoat wears, the golden substrate becomes visible. We provide a colour comparison card with five reference shades-from the original dark grey (≥90% coating remaining) to bright gold (topcoat fully worn). This allows technicians to estimate remaining coating life during routine service without complex instruments, simply by comparing the plunger's colour to the card. Additionally, each plunger is laser‑marked with a batch‑specific QR code that links to the coating thickness measurement for that individual unit, offering full traceability.

Q1: How does the PVD coating compare to traditional DLC (diamond‑like carbon) coatings found in some OEM plungers?
A: DLC offers lower friction but is more brittle and can delaminate under high point loads. Our CrN+WC/C multilayer combines high hardness (2,200 HV) with good toughness (thanks to the CrN adhesion layer). It is more tolerant of marginal lubrication and particles, making it preferable for real‑world workshops where fuel cleanliness isn't always perfect.

Q2: Can this plunger be re‑ground to an oversize after the coating wears off, or must it be replaced?
A: The coating is an integral part of the plunger's surface engineering-regrinding would remove it. We supply oversize versions (U1001‑OS +0.02 mm and +0.04 mm) that are factory‑coated after grinding, ensuring the same protection. Field regrinding is not recommended as it also alters the helix geometry.

Q3: Does the coating affect the clearance or leakage because of its thickness?
A: The plunger is ground to a nominal diameter that accounts for the coating thickness-so the final outer dimension matches the standard specification. The coating adds <0.5 μm to the radius, which is within the measurement tolerance. Leakage remains unchanged from an uncoated plunger of the same clearance class.

Q4: Is the U1001 suitable for fuels with high water content or acidic impurities (e.g., biodiesel with high FFA)?
A: Yes-the CrN layer is chemically inert to most organic acids and does not corrode. We performed a 500‑hour immersion test in B100 with added water (500 ppm) and observed no pitting or coating detachment. For extremely aggressive fuels, we recommend shorter inspection intervals, but the coating offers far better resistance than uncoated steel.

Q5: How can I visually tell if the coating is still intact after removing the plunger during a service inspection?
A: Use the colour comparison card included in the box. If the surface has worn down to a bright, uniform golden colour (CrN base), it indicates the WC/C topcoat is gone-still functional but with reduced friction benefit. If you see dark streaks or bare metal (silver‑grey substrate), the coating is locally broken; replacement is advised. This non‑destructive check takes seconds.

Q6: Does the coating increase the cost significantly, and is it worth it for older engine models?
A: The coating adds a moderate premium, but it typically extends plunger life by 2‑3 times in low‑lubricity fuel operations. For older engines that are run on current ultra‑low‑sulphur diesel or biodiesel, the U1001 pays for itself through reduced downtime and longer overhaul intervals. It's an investment in reliability, not just a replacement part.
