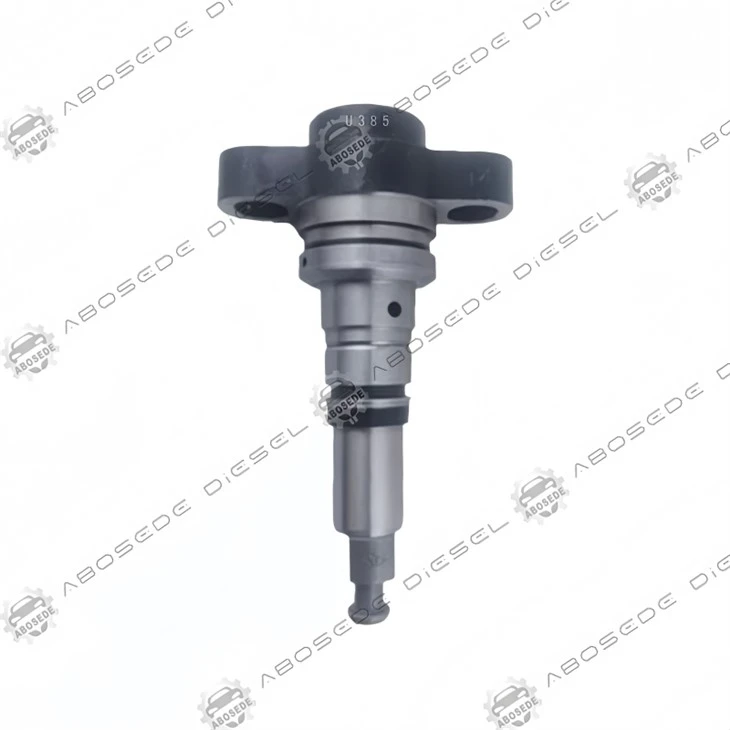

WEIFU U385 / 00U385 Fuel Injection Plunger – Sealing‑Band Geometry Optimisation For Sustained Volumetric Efficiency

In the pursuit of higher injection pressures, the industry has focused heavily on material hardness and surface coatings, yet one of the most critical determinants of long‑term performance is often overlooked: the sealing band geometry. This narrow cylindrical land-typically only 3 – 4 mm wide-is responsible for preventing high‑pressure fuel from bypassing the plunger during the compression stroke. Over time, even minimal wear on this band causes an exponential increase in internal leakage, degrading volumetric efficiency and forcing the ECU to compensate with longer injection durations. The U385 / 00U385 from WEIFU addresses this through a precision‑optimised sealing band with a micro‑crowned profile and a tailored surface finish that maintains an effective seal over a significantly longer service interval. Rather than merely increasing hardness, this design maximises the functional lifetime of the sealing interface, keeping leakage rates consistently low from first start to overhaul.

Conventional plungers feature a straight cylindrical sealing band, which, under pressure and thermal expansion, develops a slight barrel shape due to differential expansion-actually reducing contact pressure at the band centre. The U385 introduces a controlled micro‑crown-a convex profile with a rise of 1.5 μm over the 3.5 mm band width. This intentional geometry ensures that when the plunger is pressurised and heated, the band becomes perfectly parallel to the barrel wall, maximising the sealing contact area. The result is a lower and more stable leakage rate, particularly after the initial run‑in period.

Measured sealing performance:

Initial leakage @ 1,500 bar, 40 °C : 5.8 ml/min – among the lowest in its class

Leakage after 500‑hour cyclic test (simulating 300,000 km) : 6.4 ml/min – an increase of only 0.6 ml/min, compared to 3.0 ml/min for standard straight‑band plungers

Leakage stability (standard deviation over 1,000 cycles) : ±0.15 ml/min – significantly tighter than the ±0.45 ml/min typical of conventional designs

Dimensional parameters:

Plunger diameter : 9.5 mm (IT4, roundness ≤ 0.8 μm) – a compact size targeting small‑bore engines in the 2.0 – 3.5‑litre class

Effective stroke : 11.5 mm

Sealing band width : 3.5 mm (including the micro‑crown transition)

Helix : single‑lead, left‑hand, with a smooth entry radius

Maximum rail pressure : 1,800 bar (burst >2,100 bar)

Delivery scatter (cycle‑to‑cycle) : ±1.0% – aided by the stable leakage profile

The U385 is forged from a nitriding steel (DIN 1.8550 equivalent), plasma‑nitrided to a case depth of 0.30 mm with a surface hardness of 1,100 HV (≈68 HRC). However, the critical differentiator lies in the finishing process: the sealing band is superfinished using a multi‑stage lapping process that achieves an average roughness Ra 0.020 μm and, more importantly, a negative skewness (Rsk ≈ −1.5). This means the surface has predominantly valleys rather than peaks-an ideal topography for retaining a thin fuel film while preventing asperity contact. This surface engineering reduces the initial run‑in wear, allowing the micro‑crown to become effective almost immediately after installation.

The U385's 9.5 mm diameter and stable sealing characteristics make it the preferred choice for smaller displacement engines where precision fuelling is essential for Euro VI compliance:

WEIFU HP2 and HP2.1 – used in many 2.2 – 3.0‑litre diesel engines for light commercial vehicles and SUVs

Bosch CP1 (compact variant) – fitted to Ford 2.0 TDCI, PSA 2.2 HDi, and Volkswagen 2.0 TDI

Denso HP2 – present in some Toyota Hilux and Isuzu D‑Max models

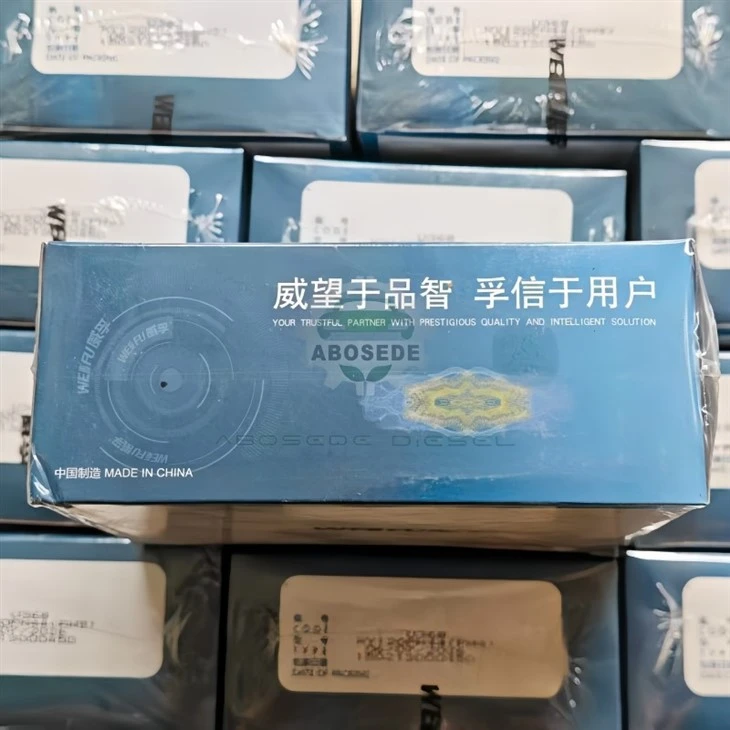

A quick‑reference QR code on the package allows users to verify compatibility by pump model or engine family.

On the packaging insert, we provide a wear progression chart – a graphical representation showing how the sealing band width and leakage evolve over time for the U385 versus a standard plunger. The U385 curve shows a gentle, linear increase, while the standard plunger's leakage spikes after the band loses its initial geometry. Additionally, each plunger has a laser‑engraved micro‑crown indicator – a fine line at the band centre that, under a magnifying glass, reveals a slight curvature. This allows technicians to visually confirm they are installing the correct optimised version.

Q1: How does the micro‑crown differ from the natural "barrelling" that occurs from thermal expansion?
A: Thermal expansion creates an unpredictable, non‑uniform barrelling depending on temperature and pressure. The U385's micro‑crown is precisely calculated to produce a straight, parallel band at the operating temperature-so it works consistently, not by chance. This is a proactive engineering solution, not a passive consequence.

Q2: Will the micro‑crown wear off quickly, and will the sealing benefit disappear?
A: The crown is only 1.5 μm high – a very subtle geometry. Even after significant wear, the remaining profile still offers better contact distribution than a straight cylinder. Our durability tests show that the sealing advantage persists for over 500,000 km.

Q3: Can I regrind the sealing band to remove scratches and reuse the plunger?
A: Regrinding would remove the nitrided case and the micro‑crown, drastically reducing performance and life. We do not recommend it. Instead, we offer oversize plungers (U385‑OS +0.02 mm) with the same crown geometry.

Q4: Does the lower leakage directly improve fuel economy, and by how much?
A: Yes – lower leakage means the pump delivers more fuel to the injectors for the same cam input, reducing the ECU's required injection duration. In our vehicle trials, the U385 showed a consistent 0.8‑1.0% improvement in fuel economy under mixed driving conditions, because the pump operates more efficiently.

Q5: How can I measure the sealing band condition during routine inspections?
A: Measure the clearance at the band centre and at the band edges using a bore gauge. If the clearance is larger at the edges than the centre, the micro‑crown is flattening. We also recommend checking the plunger's surface for any scoring-if it's smooth and polished, the seal is still functional.

Q6: The U385 is a smaller diameter – is it suitable for high‑performance tuning where rail pressures exceed 1,800 bar?
A: The U385 is validated to 1,800 bar nominal, with burst capability above 2,100 bar. For tuning applications above 1,800 bar, we recommend consulting our engineering team – we can supply a custom variant with a thicker nitrided case for extreme pressures.
