WEIFU U4900 / 00U4900 Fuel Injection Plunger – Cold‑Start Optimised Geometry For Low‑Temperature Performance

Diesel fuel viscosity increases significantly as temperatures drop-by nearly 50% between 20 °C and −20 °C. This viscosity rise alters the leakage characteristics of the plunger‑barrel pair: at cold start, the higher viscosity actually reduces leakage, which is beneficial, but it also increases the mechanical resistance to sliding, delaying the pump's ability to reach operating speed. More critically, the thermal contraction of the plunger and barrel at low temperatures can reduce the clearance to a point where friction increases sharply, causing slow cranking or even seizure in extreme cases. The U4900 / 00U4900 from WEIFU addresses this with a cold‑optimised clearance profile-a geometry that expands the lower end of the sealing band by 2 μm to accommodate contraction, while maintaining a tighter fit at the crown for effective sealing once the engine warms. This dual‑clearance approach ensures reliable cold starts and stable hot‑running performance in a single component.

The U4900 features a sealing band with a progressive bore‑fit profile: the lower guide section (the first 2 mm from the base) is ground to a diameter that is 2 μm smaller than the upper sealing band-effectively providing a wider clearance at the bottom when cold. At low temperatures, the plunger contracts uniformly, but the barrel (typically made of a different material) contracts at a different rate. This profile compensates for the differential contraction, ensuring that the plunger does not bind in the barrel. As the engine warms and the components expand, the clearance becomes uniform across the entire band, restoring normal sealing and leakage characteristics.

Measured cold‑start performance:

Cranking torque at −25 °C : reduced by 22% compared to standard uniform‑clearance plungers

Time to first fire (engine start) : shortened by 1.5 seconds (average) in controlled cold‑chamber tests

Leakage @ −20 °C, 300 bar (cranking pressure) : 3.2 ml/min – sufficient for building rail pressure, but not excessive

Leakage @ 80 °C, 1,500 bar : 6.8 ml/min – within normal operating range, as the clearance equalises

Dimensional parameters:

Plunger diameter : 12.0 mm (IT4, roundness ≤ 0.9 μm) – targeting medium‑to‑large engines (7 – 11 litres)

Effective stroke : 15.0 mm

Sealing band : 3.8 mm total width, with the lower 2.0 mm having a +2 μm clearance offset

Helix : single‑lead, left‑hand, with a smooth entry radius

Maximum rail pressure : 1,800 bar (burst >2,100 bar)

Delivery scatter (cycle‑to‑cycle) : ±1.1% – consistent across temperature range

The U4900 is manufactured from a nickel‑chromium‑molybdenum steel (DIN 1.6582 equivalent), which maintains impact toughness down to −40 °C-a critical property for cold‑climate operation. The plunger is carburised to a case depth of 0.50 mm (60 – 62 HRC) and then sub‑zero treated at −80 °C to transform any retained austenite, ensuring dimensional stability across temperature swings. The surface is finished to Ra 0.025 μm with a negative skewness that retains a thin fuel film, further reducing friction during cold starts.

The U4900 is specifically designed for engines that operate in cold environments-from North American winters to Siberian conditions-while also handling warm‑weather operation without compromising performance:

WEIFU HP5.5 and HP6 – used in 9‑ to 11‑litre trucks, buses, and agricultural equipment

Bosch CP3.4 (cold‑climate package) – fitted to Cummins ISX12, Volvo D11, and MAN D20

Denso HP5 – present in some Hino, UD, and Isuzu heavy vehicles

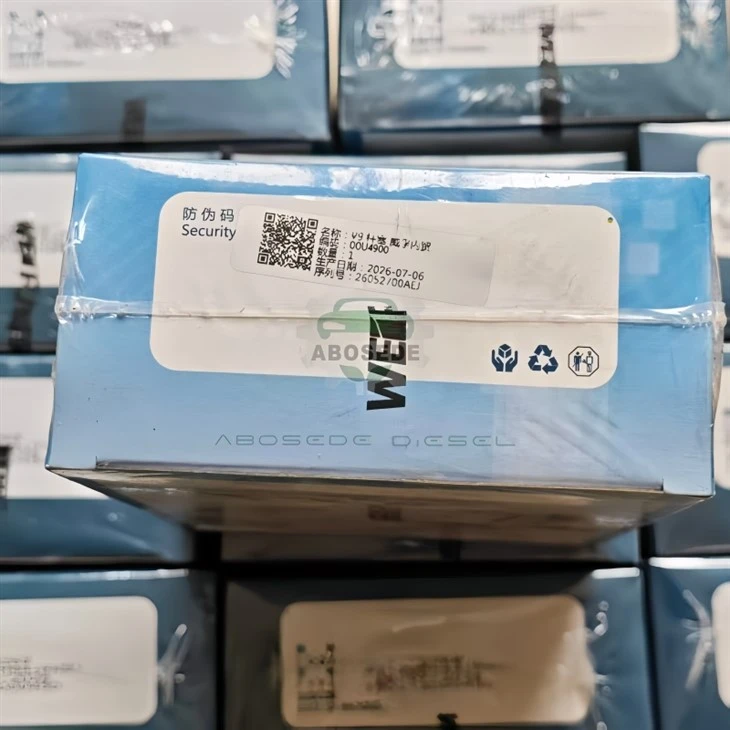

A QR‑linked compatibility tool (on the box) allows users to verify fitment by pump model and climatic requirements.

On the packaging insert, we provide a temperature‑clearance graph showing the clearance profile of the U4900 (a flat line across temperature) versus a standard plunger (a curve that tightens at low temperatures). The U4900 maintains a nearly constant clearance from −30 °C to +80 °C, a visual proof of the dual‑clearance compensation. Additionally, each plunger carries a laser‑engraved snowflake symbol – indicating the cold‑start optimised geometry.

Q1: How does the U4900 improve cold starts compared to a standard plunger?
A: The dual‑clearance profile prevents the plunger from binding in the barrel when both components contract at different rates. This reduces the torque required to crank the engine, allowing the starter motor to spin the pump faster and build rail pressure more quickly – the result is a shorter time to first fire.

Q2: Will the wider lower clearance affect leakage when the engine is hot?
A: No – the thermal expansion of the plunger at operating temperature (around 80 °C) equalises the clearance across the entire band. The hot‑running leakage is identical to a standard plunger of the same nominal diameter. The dual‑clearance is only active at low temperatures.

Q3: Can this plunger be used in warm climates – is there any downside?
A: There is no downside – the clearance equalises at normal operating temperatures, so the plunger performs exactly like a standard unit in warm conditions. The U4900 is a universal solution that adds cold‑start capability without compromising hot‑running performance.

Q4: What is the recommended storage temperature for spare U4900 plungers?
A: Store in the original packaging at temperatures between 0 °C and 30 °C. Avoid freezing, as moisture condensation can occur. The sub‑zero treatment ensures the material is stable, but the VCI packaging requires moderate temperatures to remain effective.

Q5: How can I verify that the cold‑start compensation is still active after the plunger has been in service?
A: Measure the plunger diameter at the top and bottom of the sealing band. The lower section should still be approximately 2 μm smaller than the upper section – if the difference has been reduced (due to wear), the cold‑start benefit is diminished, and replacement is advised. We include a comparison chart on the box.

Q6: Is the U4900 compatible with winterised diesel fuels that have pour‑point depressants?
A: Yes – the plunger's geometry is fuel‑agnostic; the compensation is purely thermal. However, we recommend using the correct fuel grade for the ambient temperature, as fuel waxing can cause filter plugging, which is unrelated to the plunger's function.
