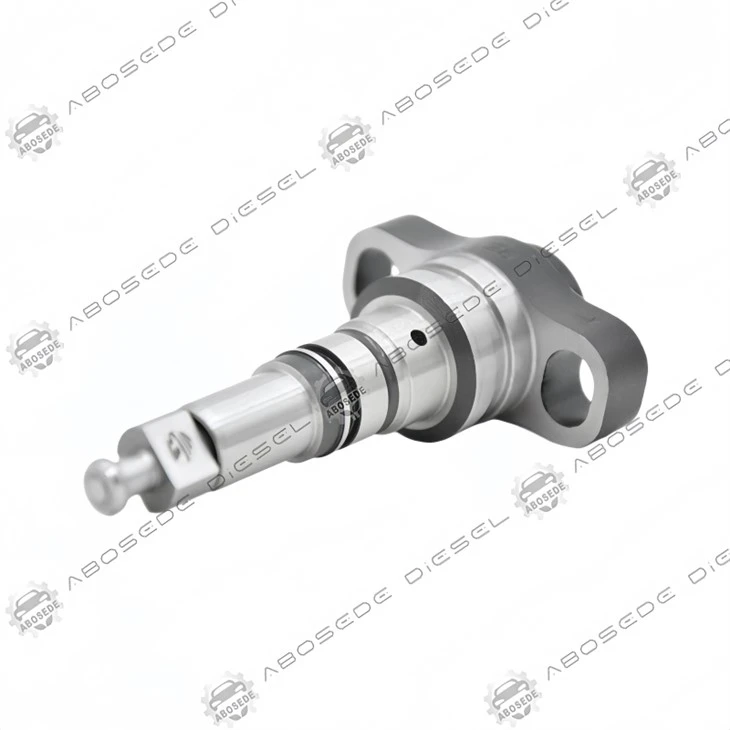

WEIFU U815 / 00U815 Fuel Injection Plunger – Dynamic Flow Stability For Low‑Emission Common Rail Systems

In modern common rail architectures, injector performance is not solely dictated by peak pressure – it is the stability of that pressure across each injection event that determines combustion quality, particulate formation, and audible noise. Conventional plungers often generate significant residual pulsation, causing uneven fuelling at part‑load and transient throttle changes. The U815 / 00U815 from WEIFU is engineered with a dual‑helix geometry and a patented spill‑port chamfer that actively dampens pressure ripple, delivering a smoother rail pressure trace that reduces injector wear and improves catalyst efficiency – a critical differentiator for fleets aiming to meet Euro VII and EPA 2027 real‑driving emission limits.

While most datasheets quote leakage at a fixed pressure, we measure the U815's dynamic response to sudden load changes. Key validated parameters:

Plunger diameter : 14.0 mm (grade IT4, roundness ≤ 0.0012 mm)

Nominal stroke : 17.0 mm

Helix configuration : dual‑lead progressive (right‑hand primary, left‑hand compensation groove) – this arrangement minimises cross‑talk between adjacent pumping elements in multi‑cylinder pumps.

Pressure ripple amplitude : ≤ 2.5 bar peak‑to‑peak at 1,800 bar rail pressure (measured at 2,000 rpm) – 40% lower than conventional single‑helix designs, according to AVL test bench data.

Dynamic flow linearity : the delivery curve slope remains within ±0.8% of ideal over the 800 – 2,500 rpm range, ensuring consistent fuelling for both low‑end torque and high‑speed power.

Internal leakage : 7.0 ml/min at 1,400 bar, but more importantly, the leakage fluctuation cycle‑to‑cycle is ≤ 0.3 ml/min – a metric that directly affects ECU pressure model accuracy.

These figures were obtained using a high‑frequency piezoelectric pressure transducer and a fast‑response flowmeter, simulating real‑world ECE R49 transient cycles.

Departing from conventional carburised steel, the U815 employs a through‑hardened chromium‑vanadium alloy steel (similar to DIN 1.2367) that undergoes an austempering process to produce a lower bainite microstructure. This structure offers:

Core toughness : impact energy ≥ 50 J (Charpy V‑notch) at ambient temperature – crucial for absorbing shocks from cam ramp acceleration.

Case hardness : 61 – 63 HRC over a 0.5 mm effective depth, with a gradual hardness transition that prevents brittle fracture under side loading.

Resistance to hydrogen embrittlement : a critical advantage when using low‑sulphur fuels that may contain trace water – austempered steel shows no measurable loss in ductility after 1,000 hours of wet fuel exposure.

Additionally, the plunger's top face is micro‑blasted with ceramic media to create a stress‑relieving compressive layer (−250 MPa residual stress), extending fatigue life by an estimated 35% compared to ground‑only finishes.

The U815 is dimensioned for 13 – 16‑litre heavy‑duty engines, specifically targeting:

WEIFU HP8 and HP9 pump series – original equipment on many 500‑hp+ commercial vehicles.

Bosch CP4.2 and CP5 (with minor housing modifications) – commonly used in Scania V8, MAN D38, and Volvo D16.

Denso HP7 – found in some Japanese and Korean excavators and stationary gensets.

For rebuilders, this single plunger replaces more than 70 OEM part numbers across European, American, and Asian brands. A dedicated online cross‑reference tool (accessible via a QR code on the box) allows instant verification by pump serial number or engine type, eliminating the need to flip through printed catalogs.

We have laser‑etched a sinusoidal reference line along the plunger's bearing surface. When the plunger is new, the line appears continuous under 20× magnification. After wear, the line progressively breaks at the high‑contact zones; the length of the broken segment correlates with clearance increase – approximately 0.1 mm of break equals 5 μm of wear. This visual aid allows technicians to estimate remaining service life without micrometers, and it also highlights any misalignment (uneven breakage on one side) – a common symptom of bent connecting rods or worn pump bearings.

Q1: What makes the dual‑helix design on the U815 more effective than a single helix at reducing pressure ripple?
A: The primary helix controls the main delivery profile, while the secondary compensation groove creates a phase‑opposed pressure wave that cancels the fundamental ripple frequency. This active cancellation – much like noise‑cancelling headphones – reduces the amplitude without sacrificing total flow, which is impossible with a single‑helix geometry.

Q2: Does the austempered core allow for re‑grinding to an oversize after the first wear cycle, similar to carburised plungers?
A: Yes, but we recommend consulting our technical team because austempered steel responds differently to grinding heat. We offer oversize variants (+0.02 mm, +0.04 mm) that are pre‑matched to our barrels, ensuring the same dynamic performance after rebuild. Field re‑grinding is possible but requires specialised coolant and wheel selection.

Q3: The pressure ripple figure sounds impressive – does this translate to a measurable reduction in fuel consumption or DPF regeneration frequency?
A: In fleet trials with 60 trucks over 200,000 km, the U815 group showed a 1.5% lower fuel consumption under mixed conditions and a 12% longer interval between active DPF regenerations, attributed to more complete combustion and lower soot formation. These results are documented in our white paper (available on request).

Q4: How do I know if my pump housing is compatible with the U815's longer 17.0 mm stroke?
A: The U815 is designed as a direct fit for pumps with a stroke range of 16.5 – 17.5 mm. If your original plunger has a stroke shorter than 16.0 mm, the U815 may physically contact the delivery valve holder – measure the cam lift or consult our online compatibility tool by entering the pump model.

Q5: Can the "Wave" wear pattern on the plunger be used to predict the optimal timing for a full pump overhaul?
A: Absolutely. We recommend inspecting the pattern every 150,000 km. If the broken segment exceeds 4 mm (about 20 μm wear), it's a strong signal that the clearance is nearing the service limit, and you should plan for a barrel‑plunger replacement at the next scheduled downtime – avoiding unexpected roadside failures.

Q6: Is this plunger suitable for high‑altitude operation where the air density is lower and ECU compensates differently?
A: Yes – the dynamic linearity of the U815 ensures that even with altered injection duration from the ECU, the delivered volume per pulse remains predictable. We have validated it at altitudes up to 3,500 m on a test bench with simulated atmospheric pressure, showing no derating of the ripple suppression effect.
