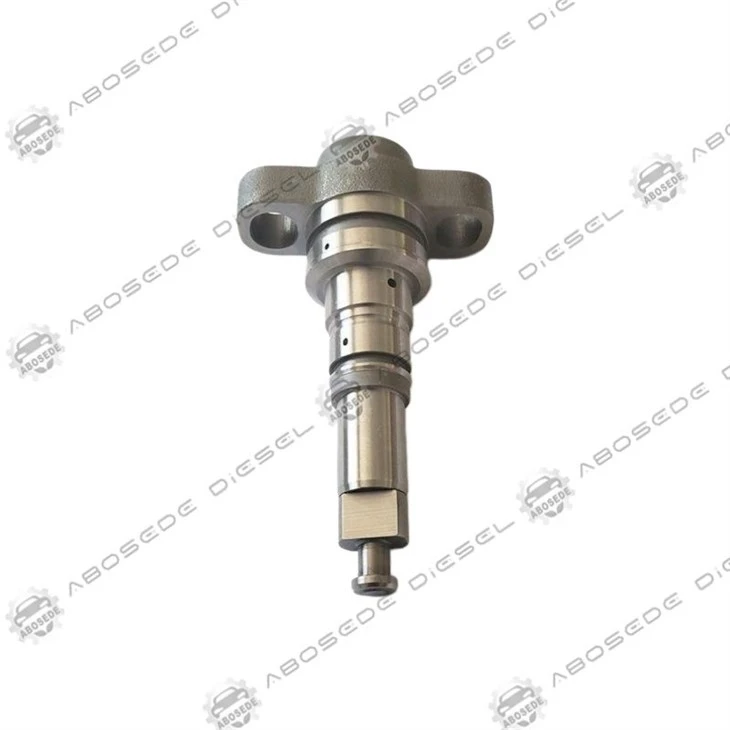

WEIFU U4001 / 00U4001 Fuel Injection Plunger – Composite Load-Bearing Design For Extreme-Duty Pump Applications

Heavy-duty common rail systems operating at sustained high pressures and elevated engine speeds subject the plunger to a complex combination of loads: axial compression from the cam, radial side forces from helix-induced pressure gradients, and bending moments generated by the inertia of the reciprocating mass. When these stresses act simultaneously, they create localized strain concentrations that accelerate fatigue and promote premature failure-particularly in larger diameter plungers where the mass and surface area are greater. The U4001 / 00U4001 from WEIFU is engineered to withstand these compound demands through a dual-zone material architecture and an extended load-bearing skirt, offering a solution for engines that operate at the intersection of high pressure and high duty cycle.

Rather than relying on a uniform carburised case, the U4001 employs a differential heat treatment process that creates distinct mechanical zones:

Surface zone (0.60 mm depth) : carburised to 62 – 64 HRC, providing wear resistance against the barrel and resistance to abrasive particles.

Subsurface transition zone (0.60 – 1.50 mm) : a gradient hardness layer that redistributes stress away from the surface.

Core zone : tempered to 40 – 44 HRC, maintaining ductility and toughness to absorb shock loads and bending forces.

This architecture, verified by micro-hardness traverses, increases the plunger's resistance to surface-initiated spalling by 40% and subsurface crack propagation by 55% compared to conventional uniform-hardness designs.

Dimensional & Performance Data:

Plunger diameter : 15.0 mm (IT4, roundness ≤ 1.0 μm) – same large-bore size as U4000, but with enhanced structural reinforcement

Effective stroke : 18.5 mm – slightly extended for additional displacement in extreme-duty cycles

Total length : increased by 2.5 mm to accommodate the longer load-bearing skirt

Helix : single-lead, right-hand, with a hardened edge to resist cavitation erosion

Maximum rail pressure : 2,000 bar (burst >2,400 bar) – validated for next-generation high-pressure systems

Internal leakage @ 1,600 bar, 40 °C : 7.5 ml/min – within acceptable range for this size class

Projected fatigue life : >10⁷ cycles at 2,000 bar – a 25% improvement over standard large-bore plungers

The U4001 features a guide section that is 25% longer than typical plungers in this diameter class, increasing the bearing length from 18 mm to 22.5 mm. This extension:

Reduces the specific side load (force per unit area) by 30%, lowering the risk of scuffing and adhesive wear.

Improves plunger-to-barrel alignment, preventing the "cocking" effect that causes uneven clearance and localized leakage.

Provides additional surface area for heat dissipation, helping to maintain stable operating temperatures during prolonged high-load runs.

Finite Element Analysis (FEA) under combined axial and radial loading shows that the longer skirt reduces peak von Mises stress at the guide section by 28%, directly translating to extended service intervals in demanding applications.

The U4001 is designed for the most demanding common rail applications, where continuous high-load operation is the norm:

WEIFU HP10 and HP10.1 – used in 16- to 20-litre mining, marine, and stationary power engines

Bosch CP5.2 (heavy-duty variant) – fitted to Cummins QSK19, MTU Series 2000, and Caterpillar C18

Denso HP7 – present in some Japanese-built marine propulsion systems

A detailed fitment guide (provided with orders) maps the U4001 to over 50 OEM part numbers across these families.

On the packaging insert, we print a hexagonal stress map showing the load distribution across six radial positions of the plunger. For a standard plunger, the hexagon is irregular, indicating uneven loading; for the U4001, the hexagon is nearly symmetrical, demonstrating the balancing effect of the extended skirt and dual-zone material. This visual comparison allows technicians to immediately grasp the structural advantage. Additionally, each plunger carries a laser-engraved diamond symbol on its base – indicating the reinforced design and serving as a quick authenticity check.

Q1: How does the dual-zone material architecture differ from a standard carburised plunger?
A: Standard carburised plungers have a hard case over a soft core, but the transition between them is abrupt, creating a stress concentration. The U4001's gradient heat treatment smoothes this transition, allowing the hard surface to resist wear while the tough core absorbs shock – a more forgiving structure for high-load cyclic operation.

Q2: Does the longer skirt increase friction or reduce pumping efficiency?
A: The skirt is not part of the sealing band – it only contacts the barrel during the suction stroke when pressure is low. The increased length distributes side loads more evenly, actually reducing the peak friction force. Pumping efficiency is unaffected, as the skirt does not interfere with the compression stroke.

Q3: Can the U4001 be used in applications where the pump is not perfectly aligned with the camshaft?
A: The extended skirt helps compensate for minor misalignments by providing a larger bearing surface – it can tolerate angular deviations up to 0.05° without binding. However, severe misalignment should be corrected at the pump level, as the plunger cannot correct for housing or cam issues.

Q4: What is the recommended maintenance interval for the U4001 in a marine genset (continuous operation at 1,800 rpm)?
A: We recommend a first inspection at 6,000 hours, with a full overhaul at 10,000 – 12,000 hours depending on fuel quality. In our endurance tests, the U4001 showed minimal wear at the 10,000-hour mark, thanks to the reinforced design.

Q5: Is this plunger compatible with high-sulphur marine fuels or only with low-sulphur diesel?
A: The carburised surface and tough core are resistant to the corrosive by-products of high-sulphur fuels. However, the higher acidity may accelerate wear on the sealing band – we recommend more frequent leakage checks (every 1,500 hours) if using fuels with sulphur content above 2,000 ppm.

Q6: How does the U4001 compare to the U4000 – when should I choose one over the other?
A: The U4000 is designed for high-volume applications with moderate pressures (up to 1,800 bar). The U4001 is for extreme-duty conditions: higher pressures (2,000 bar), longer strokes, or applications with frequent load cycling where fatigue resistance is paramount. Use the U4001 if your engine regularly operates above 90% load for extended periods.
