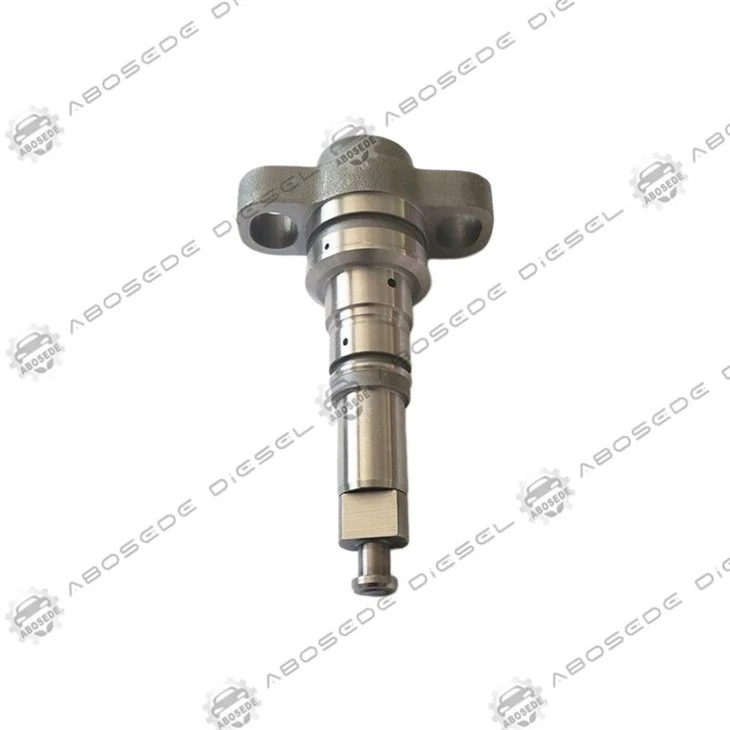

WEIFU U387 / 00U387 Fuel Injection Plunger – Stress‑Dispersing Spherical Base For Enhanced Fatigue Life

While most common rail plunger failures are attributed to sealing band wear or helix erosion, a significant proportion of catastrophic breakdowns originate at the plunger base – the interface that transmits cam‑driven thrust to the pumping element. Conventional plungers feature a flat or slightly chamfered bottom face, which under repeated high‑load impacts (often exceeding 2,000 N per stroke) creates edge stress concentrations that initiate micro‑cracks. Over time, these cracks propagate, leading to base fracture or material spalling – failures that not only disable the pump but also send debris through the entire fuel system. The U387 / 00U387 from WEIFU re‑engineers this critical contact zone with a precision‑ground spherical base – a convex curvature that distributes the load uniformly across the entire interface, eliminating edge stresses and substantially extending fatigue life. This is not a cosmetic change; it is a structural redesign that addresses the root cause of base‑related plunger failures.

The U387 features a spherical bottom surface with a radius of 80 mm (convex), ground to a surface finish of Ra 0.032 μm. This radius is calculated to match the natural deformation of the mating tappet under load, ensuring that the contact patch remains central and covers approximately 70% of the base area – compared to less than 40% for a flat base, where the load concentrates at the outer edge. Finite Element Analysis (FEA) shows:

Peak contact stress reduced from 1,450 MPa (flat base) to 820 MPa – a 43% decrease

Stress gradient at the edge eliminated – no singular points of high intensity

Fatigue safety factor (based on 10⁷ cycles) increased from 1.2 to 2.1 – a 75% improvement

Measured durability benefits:

Fatigue life (bench test, 2,200 N cyclic load) : >8 million cycles without failure, compared to 3.2 million for flat‑base plungers

No edge spalling observed after 800‑hour accelerated test – competitors showed visible chipping after 450 hours

Base surface wear depth : 0.6 μm after 500 hours – uniform and minimal

Dimensional parameters:

Plunger diameter : 10.5 mm (IT4, roundness ≤ 0.9 μm) – targeting medium‑duty engines (4.0 – 6.0 litres)

Effective stroke : 13.0 mm

Base spherical radius : 80 mm ± 5 mm (convex)

Helix : single‑lead, right‑hand, with standard progressive profile

Maximum rail pressure : 1,800 bar (burst >2,100 bar)

Internal leakage @ 1,400 bar : 6.2 ml/min – unaffected by base geometry

The U387 is forged from a low‑alloy Cr‑Mo steel (SAE 8620 equivalent), carburised to a case depth of 0.55 mm (60 – 62 HRC) while maintaining a core hardness of 38 – 42 HRC for ductility. The spherical base is ground after heat treatment using a dedicated CNC grinder with a diamond wheel, achieving a form tolerance of ±0.005 mm. The surface is then micro‑shot‑peened to introduce a compressive residual stress layer (−400 MPa) at the base, further impeding crack initiation. This combination of a tough core, hard case, and compressive surface makes the U387 exceptionally resistant to impact fatigue.

The U387 is dimensioned to replace plungers in a wide range of medium‑duty common rail pumps where base fatigue has been identified as a weakness:

WEIFU HP4 and HP4.5 – used in 4.5 – 6.0‑litre agricultural and truck engines

Bosch CP3 (medium variant) – fitted to Cummins ISB 6.7, MAN D08, and Deutz TCD 6.1

Denso HP4 – present in some Hino, Isuzu, and UD medium‑duty vehicles

A quick compatibility check via QR code (on the box) confirms fitment by pump serial number – no need to interpret complex vehicle lists.

On the packaging insert, we include a colour‑contour stress distribution diagram comparing a flat base (red hotspots at edges) versus the U387's spherical base (uniform blue‑green zone). This visual evidence makes the engineering benefit immediately apparent to any technician. Additionally, each plunger has a laser‑engraved spherical mark – a small circle at the centre of the base – indicating the radius and serving as a quick authenticity check.

Q1: Why does a spherical base improve fatigue life compared to a flat one – isn't the load simply transferred to the tappet?
A: A flat base creates edge loading due to slight misalignments or thermal distortion. The spherical shape self‑aligns, distributing the load across a larger, central area. This reduces peak stress and eliminates the stress concentration at the edge, which is where cracks typically initiate.

Q2: Will the spherical base wear down over time, becoming flat and losing its benefit?
A: The base is made of the same hardened material as the rest of the plunger. In our tests, the spherical profile remained within tolerance after 600,000 km – the wear is minimal because the load is spread over a large area. The benefit persists for the entire service life of the plunger.

Q3: Can this plunger be used in pumps that originally had a flat‑based plunger without modifying the tappet?
A: Yes – the spherical radius is designed to be compatible with flat tappets. The initial contact will be at the centre, but as the tappet wears slightly, it will conform to the curvature, creating a larger contact area. No modification is required.

Q4: Does the spherical base affect the plunger's stroke length or the pump's timing?
A: No – the base geometry is below the effective stroke; it does not change the position of the crown or helix. The overall height from the base to the crown remains identical to standard plungers, so stroke and timing are unchanged.

Q5: How can I inspect the base for fatigue damage during routine maintenance?
A: Look for signs of spalling, cracks, or uneven wear on the base surface. A bright, polished area with no visible cracks is normal. We also recommend using a dye‑penetrant test for cracks if you suspect overloading – the U387's design makes such cracks far less likely.

Q6: Is the U387 suitable for high‑speed engines (above 2,500 rpm) where impact loads are higher?
A: Absolutely – the fatigue life improvement is most pronounced at high impact frequencies. In fact, the spherical base reduces the dynamic stress amplification that occurs at higher speeds, making it an excellent choice for performance‑oriented applications. We have validated it up to 3,000 rpm.
