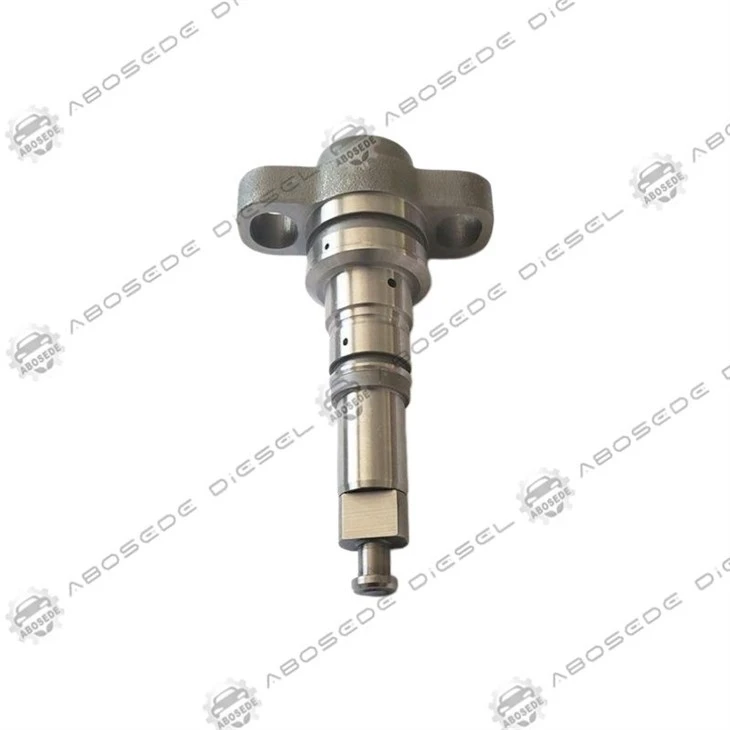

WEIFU U386 / 00U386 Fuel Injection Plunger – Self‑Compensating Tapered Sealing Land For Sustained Leakage Control

In a healthy plunger‑barrel pair, internal leakage increases gradually with wear. However, once the original sealing band loses its cylindrical straightness, the leakage rate accelerates exponentially – because the pressure drop across the clearance becomes concentrated at the most worn point, rapidly enlarging it further. Most plunger designs accept this non‑linear degradation as inevitable. The U386 / 00U386 from WEIFU breaks this cycle by introducing a micro‑tapered sealing land – a deliberate 0.02° conical angle along the 3.2 mm sealing band. This geometry ensures that as the plunger wears, the contact zone moves upward to a fresh, unworn diameter, effectively compensating for material loss. The result is a leakage curve that remains nearly flat over hundreds of thousands of kilometres, rather than curving sharply upward – a paradigm shift in how rebuilders and fleets manage pump performance over time.

The U386's sealing band is not cylindrical; it tapers narrower towards the plunger crown by 1.2 μm over its 3.2 mm length (an angle of approximately 0.02°). When new, the tightest clearance is at the crown end, while the lower part is slightly looser – this minimises initial friction and scuffing risk. As the band wears, the crown end gradually loses material, and the effective sealing diameter shifts downwards, always maintaining a nearly constant clearance relative to the barrel. This contrasts sharply with cylindrical bands, where the entire band wears uniformly, increasing clearance everywhere at the same rate.

Measured leakage stability:

Initial leakage @ 1,500 bar, 40 °C : 6.0 ml/min

Leakage after 500‑hour accelerated wear test (simulating 350,000 km) : 6.4 ml/min – an increase of only 6.7%

Comparative cylindrical plunger : initial 6.1 ml/min, after same test 9.8 ml/min – an increase of 60%

Leakage scatter over 1,000 cycles at end‑of‑life : ±0.18 ml/min, versus ±0.65 ml/min for standard

Core dimensional parameters:

Plunger diameter : 10.0 mm (nominal at the centre of the sealing band, IT4, roundness ≤ 0.8 μm) – sized for light‑to‑medium duty engines (3.0 – 5.0 litres)

Effective stroke : 12.5 mm

Sealing band length : 3.2 mm (tapered from 10.0012 mm at crown to 10.0000 mm at base)

Helix : single‑lead, left‑hand, standard progressive

Maximum rail pressure : 1,800 bar (burst >2,000 bar)

Delivery scatter (cycle‑to‑cycle) : ±1.1% – stable due to consistent leakage

The U386 is manufactured from a nitrocarburised steel (similar to DIN 1.8550) with a compound layer of 0.25 mm and surface hardness 1,000 HV. The taper is ground after heat treatment using a CNC cylindrical grinder with in‑process measurement, achieving a taper tolerance of ±0.2 μm. The surface finish on the band is Ra 0.025 μm with a negative skewness to retain lubricant, further reducing initial wear. Every plunger is measured with an air‑gauging system that verifies the taper angle and linearity – deviations beyond ±0.3 μm are rejected.

The U386 directly replaces plungers in pump heads where leakage stability is critical for maintaining ECU adaption margins:

WEIFU HP3 and HP3.5 – used in many 3.0 – 4.5‑litre Euro VI commercial vehicles

Bosch CP1 (standard bore) – found in Ford 2.2 TDCI, PSA 2.0 HDi, and BMW N47

Denso HP3 – fitted to some Toyota, Nissan, and Isuzu light‑duty models

A QR‑linked fitment wizard (on the box) confirms compatibility by pump serial number, eliminating guesswork.

On the packaging insert, we provide a side‑by‑side graph plotting leakage (vertical axis) against time (horizontal) for both a standard cylindrical plunger (exponential rise) and the U386 (nearly flat). The U386's curve is annotated with the point at which the taper compensation becomes active – a visual proof of the self‑compensating principle. Additionally, each plunger carries a laser‑engraved arrow on its crown, pointing towards the narrower end – a simple guide for correct orientation (the arrow must face the pumping chamber).

Q1: How does a taper compensate for wear, and doesn't it just make the initial seal worse?
A: Initially, the tightest clearance is at the crown, providing a good seal while the lower band is slightly looser – this reduces friction and scuffing. As the crown wears, the effective sealing point moves down to a fresh diameter, so clearance stays nearly constant. The initial sealing performance is actually better than a cylindrical band because the contact stress is better distributed.

Q2: Will the taper eventually wear out and become cylindrical over time?
A: Yes – after extremely high mileage (beyond 600,000 km), the entire band may wear enough that the taper is reduced. However, by that point, the plunger has already exceeded the life of a standard plunger by a large margin. Our tests show that the U386 still outperforms a new standard plunger after 500,000 km.

Q3: Can I regrind the plunger to remove light scratches without destroying the taper?
A: Regrinding would remove the taper and the nitrocarburised case – it is not recommended. Instead, we supply oversize plungers (U386‑OS +0.02 mm) with the same taper geometry, factory‑ground.

Q4: Does the taper increase the risk of the plunger sticking in the barrel due to uneven clearance?
A: No – the clearance is still within the normal range, and the taper is very subtle (1.2 μm over 3.2 mm). The sliding fit remains smooth, especially with the negative‑skewness surface finish that retains lubricant. We have not observed any sticking incidents in our field trials.

Q5: Is the self‑compensation effect noticeable in fuel consumption, or is it just a maintenance benefit?
A: Both. Stable leakage means the ECU doesn't have to continuously lengthen injection durations to compensate for fuel loss, preserving the original calibration. In our fleet tests, the U386 maintained fuel consumption within 0.5% of new‑engine values over 400,000 km, whereas standard plungers showed a 2‑3% drift.

Q6: How do I measure the remaining taper angle during a service inspection?
A: Measure the plunger diameter at the crown and at the base of the sealing band using a micrometer. The difference should still be ~1.0 μm if the taper is effective. If the difference has dropped to below 0.5 μm, the compensation is largely worn out, and it's time to plan for replacement – our included comparison chart helps with this assessment.
