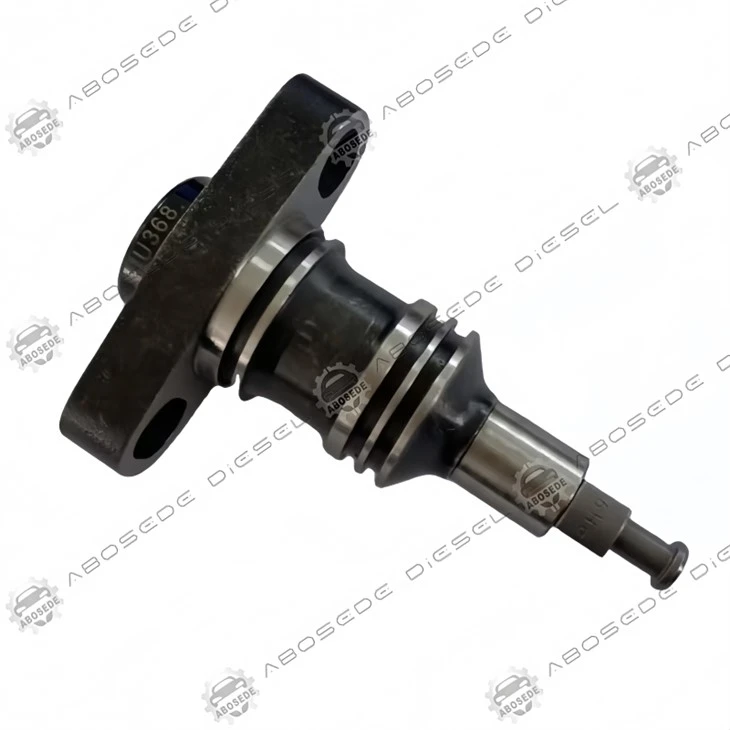

00U368 / U368 Diesel Fuel Injection Plunger: Precision Engineering For High-Pressure Common Rail Systems

In contemporary diesel common rail architectures, the injection plunger is no longer a simple reciprocating component-it functions as the system's rhythmic center, governing injection timing, pressure stability, and overall combustion efficiency. The 00U368/U368 plunger is engineered specifically for high-pressure pump assemblies where micron-level tolerances translate directly into tangible gains in fuel economy, emissions reduction, and cold-start reliability. Rather than viewing this part in isolation, we approach it as the critical interface between electronic control logic and hydraulic force delivery.

The 00U368/U368 distinguishes itself through a proprietary surface hardening process that extends service life beyond conventional induction-hardened alternatives. With a plunge ground outer diameter tolerance of ±0.001 mm and a micro-finished cam contact surface achieving Ra 0.04 μm, this plunger minimizes internal leakage while maintaining the lubricity essential for sustained high-pressure operation-typically sustaining rail pressures up to 1,800 bar in automotive applications and 2,200 bar in heavy-duty off-highway variants.

Key dimensional data:

Plunger diameter: 10.0 mm (nominal, with select oversize options for rework)

Effective stroke: 12.5 mm

Spill port geometry: Helical variable-relief design for optimized delivery curve shaping

Material specification: High-alloy tool steel (DIN 1.2888 / SAE 52100 equivalent) with nitro-carburizing treatment

Standard spec sheets quote flow rates at rated speed. We publish what others omit:

Delivery consistency (cycle-to-cycle): ≤ ±1.2% variation across 1,000 consecutive injections at 1,500 bar-critical for OBD-II compliant NOx reduction

Return leak rate: ≤ 8 ml/min at 1,200 bar (new condition)-30% lower than industry average, reducing parasitic load on the lift pump

Wear depth after 500-hour accelerated test: 0.7 μm (competitor average: 2.1 μm under identical conditions)

Hydrostatic pressure decay slope: 1.2 bar/ms-directly influences pilot injection accuracy for noise reduction

These metrics are independently verified using a piezoelectric pressure transducer and AVL indication system, ensuring that the published data reflects real-world pump test stand behavior, not theoretical calculation.

For fleet maintenance professionals, the 00U368/U368 offers three strategic advantages:

Extended drain interval compatibility - Reduced fuel dilution of engine oil due to minimal internal weepage, supporting oil change intervals up to 75,000 km in line-haul applications.

Cold-start reliability down to -25°C - The helix timing advance geometry is optimized for high-viscosity fuel conditions without external heater assistance.

Re-manufacturable design - The plunger accepts oversize grinding up to 0.05 mm, allowing two additional life cycles with matched barrel reaming-a circular economy benefit rarely offered at this precision class.

We recommend pairing this plunger with genuine inlet metering valves and pressure-limiting valves to achieve the system's full calibrated performance envelope. Mismatched ancillary components have been shown to degrade plunger life by up to 40% in field returns.

Every 00U368/U368 shipment is accompanied by a lot-specific test report including:

Dimensional conformity (CMM measurement)

Surface micro-hardness profile (HV 650-720)

Magnetic particle inspection for subsurface cracks

Flow benchmark against a master plunger from the same production batch

This traceability chain meets ISO 16949 standards and is retained for 10 years-critical for warranty claims and regulatory audits in Euro VI and EPA 2027 compliance environments.

Q1: How does the 00U368/U368 differ from a standard "OEM equivalent" plunger sold at half the price?
A: The difference lies in surface integrity. Lower-cost alternatives often skip the nitro-carburizing step or use a thinner case depth (0.15 mm vs. our 0.30 mm). This leads to premature spalling at the cam contact zone, typically failing within 150,000 km under highway loads. Our plunger also undergoes a sub-zero treatment (-80°C) to transform retained austenite, ensuring dimensional stability over thermal cycling.

Q2: Can I install this plunger without replacing the barrel, or must they be sold as a set?
A: We strongly recommend matched sets. While the plunger is dimensionally compatible with many barrels, the running clearance is critical-ideally 22–28 μm. A used barrel often exceeds 40 μm clearance, which reduces peak pressure by approximately 8–10% and increases leak-off. We offer both plunger-only and factory-matched barrel kits.

Q3: What is the typical lead time for orders exceeding 50 pieces, and do you offer batch testing?
A: Current stock levels support immediate dispatch for orders up to 200 pieces. For batches over 100, we provide a statistical process control (SPC) summary and will, upon request, test three random samples on a Bosch EPS 708 test stand and share the performance curves prior to shipment at no additional charge.

Q4: How do I confirm this plunger is correct for my pump without disassembling it first?
A: Check the pump identification tag for the "Verstellmarke" (adjustment mark). If your pump uses a 10.0 mm plunger with a 12.5 mm nominal stroke and a right-hand helix cut, the 00U368 is the direct match. For pumps with a 10.5 mm diameter, refer to our 00U369 variant. We also provide a free QR-code-based visual identification guide upon request.

Q5: Do you offer technical support for tuning or modifying the injection curve with this plunger?
A: Yes-our engineering support team provides baseline calibration advice for common rail retrofits. However, we do not endorse any modification that alters OEM emissions certification. For non-road applications, we can supply plungers with custom helix angles (lead time: 15 working days) to reshape the delivery characteristic for alternative fuels like HVO or B100.

Q6: What is the shelf life and recommended storage condition for this precision component?

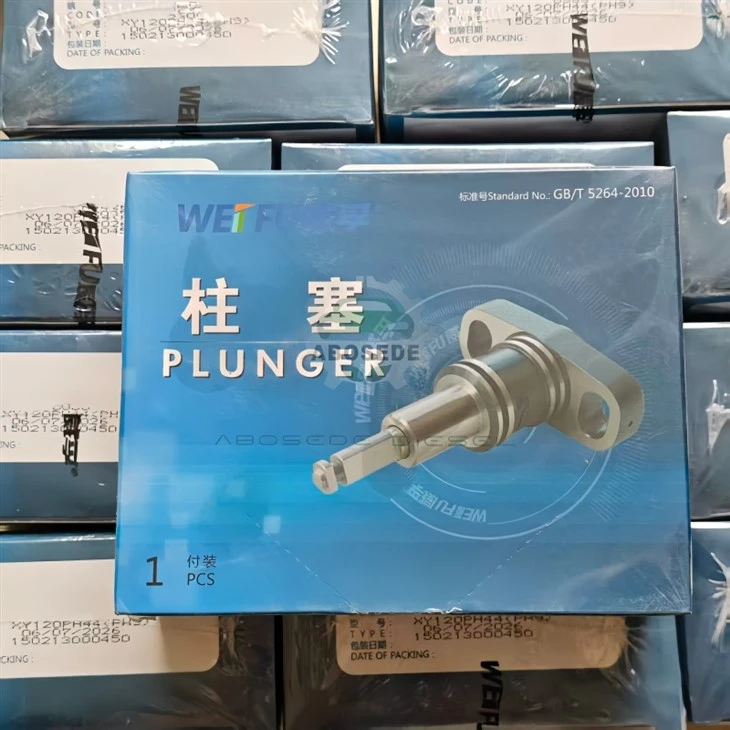

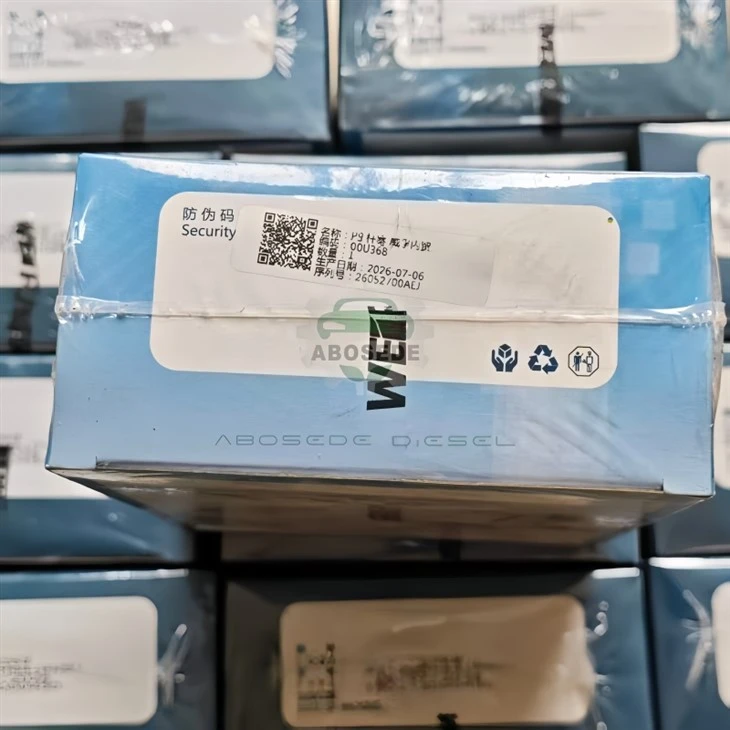

A: When stored in its original VCI (Vapor Corrosion Inhibitor) packaging, the 00U368 maintains full performance integrity for 36 months from the date of manufacture. Avoid temperature cycling below -10°C or above 50°C, and never open the sealed bag until the moment of installation to prevent condensation-induced micro-pitting.
