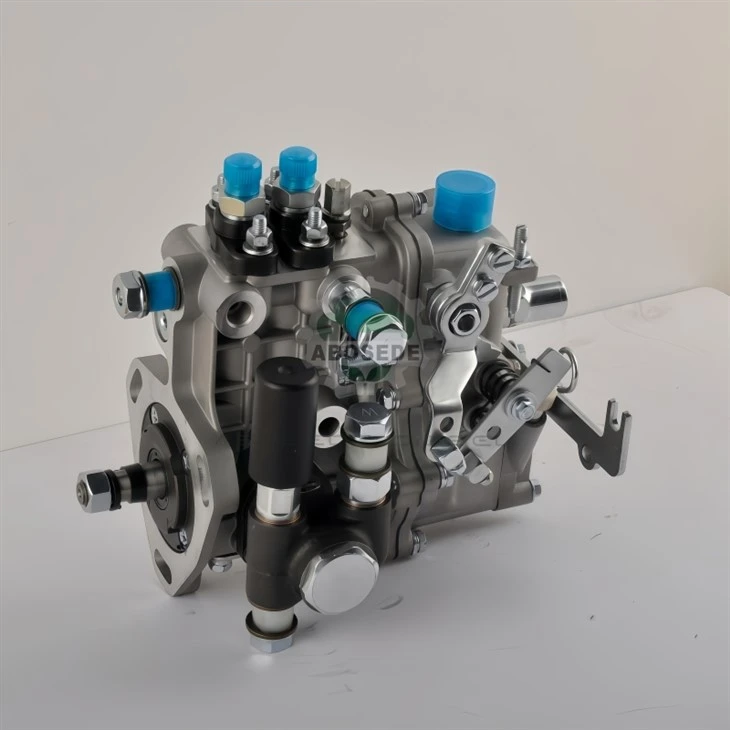

KANGDA 2Q30 BH2Q85R8 – Direct Mount Fuel Pump For Changchai 2102

Engineered for the Changchai 2102 diesel power unit, this KANGDA fuel injection pump carries order number 2Q30 and model designation BH2Q85R8. Rated for a governed speed of 2800 RPM with direct gear drive, this assembly delivers factory-matched fuel delivery characteristics for agricultural and light industrial applications. Workshops and parts suppliers benefit from a straightforward replacement solution that preserves the original engine calibration, removing the need for subsequent tuning adjustments or adapter kits.

Mounting this pump demands attention to the gear case interface and timing gear alignment. Fixing the 2Q30 to the Changchai housing requires clean mating surfaces and new sealing washers on all high-pressure line connections. Before turning the engine over, the timing marks on the pump drive gear and the idler gear must be visually confirmed-misalignment here directly alters injection onset and compromises combustion efficiency. As with any KANGDA precision component, the fuel system should be primed thoroughly prior to cranking; running the pump dry risks scoring the plunger and barrel, which shortens the service interval of the entire fuel delivery circuit.

This pump finds its sole application within the Changchai 2102 series, a two-cylinder diesel widely deployed in compact tractors, transplanters, and standby generator sets. Calibration of the BH2Q85R8 head and rotor assembly is uniquely matched to the swirl chamber and compression ratio of the 2102 block. Factory presets govern fuel quantity and timing progression across the load range, so workshop technicians avoid recalibration tasks when replacing a worn unit. The mechanical governor responds directly to engine speed, maintaining stable idle and governed maximum without electronic intervention-a feature that simplifies troubleshooting in field conditions.

The BH2Q85R8 operates as an inline mechanical pump with BQ series plunger elements. OEM part numbers 12C000-1111100 and variants 2Q80-1, 2Q81-1, 2Q82, 2Q83, and 2Q84 share identical mounting and calibration data with this 2Q30 batch code. Drive originates from the engine timing gear train, with the pump shaft rotating at engine speed-2800 RPM-to deliver injection events synchronised with piston position. The table below consolidates all critical specification data:

Although the Changchai 2102 relies on a traditional inline injection pump rather than a High-Pressure Common-Rail (HPCR) architecture, the precision demands placed on the BH2Q85R8 rival those of contemporary systems. Mechanical pumps of this class remain prevalent in global agricultural fleets, and workshops that maintain competency in their overhaul capture a loyal customer base among owners of older equipment. Fault diagnosis proceeds without scan tools-fuel delivery pressure and timing are verified through mechanical checks, shortening downtime compared to electronically controlled units. Replacing a degraded pump with this KANGDA assembly restores starting behaviour, load response, and fuel efficiency to factory benchmarks, delivering tangible operating cost reductions for end users. The straightforward construction also allows competent technicians to perform bench tests and calibration adjustments in-house, reducing dependence on specialised external service centres.

Q1: Is the BH2Q85R8 shipped with delivery valves already assembled?
A: Yes. The complete pump leaves the factory with delivery valve holders, springs, and plunger assemblies installed and bench-calibrated for the 2102 engine. You will need to reuse your existing fuel inlet fittings and stop solenoid.

Q2: What warranty applies to purchases of the KANGDA 2Q30 injection pump?
A: A 12-month manufacturer's warranty covers material and workmanship defects. Claims must be accompanied by installation records and proof that clean fuel was used-contamination remains the primary cause of premature plunger wear and is excluded from coverage.

Q3: Can this pump be fitted to a turbocharged Changchai engine?
A: No. Calibration of this BH2Q85R8 assumes naturally aspirated operation. Installing it on a turbocharged variant would result in inadequate fuel delivery under boost, potentially causing piston overheating and failure.

Q4: How critical is timing mark alignment during installation?
A: Absolutely critical. The pump gear carries a punch mark that must index with the idler gear. Incorrect alignment leads to retarded or advanced injection, manifesting as white smoke, rough idling, and loss of rated power output.

Q5: What operational lifespan can workshops expect from this pump?
A: With regular filter changes and water separation, these pumps commonly exceed 5,000 running hours before requiring a rebuild. Fuel quality and air bleeding procedures during installation heavily influence this figure.
