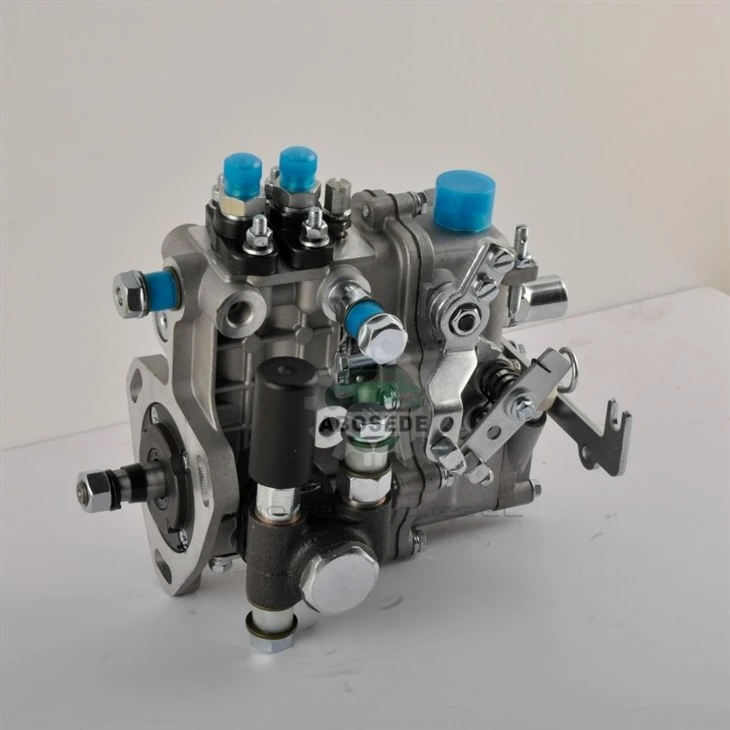

2QT32 | BH2QT85R9 KANGDA Fuel Injection Pump For Changchai 2105

For a workshop manager, every hour a tractor or generator sits idle translates directly into lost revenue and a strained customer relationship. The KANGDA 2QT32 (BH2QT85R9) mechanical in-line fuel injection pump addresses this reality head‑on. Built specifically for the Changchai 2105 diesel engine-rated at 1500 RPM and 18 kW-this unit is not a "premium upgrade" but a necessity for keeping older, workhorse engines in the field. When the original pump begins to drift out of calibration, the entire fuel system suffers. Instead of chasing symptoms through multiple service visits, replacing the pump with a factory‑matched component eliminates the guesswork, cutting diagnostic time and getting the machine back to work before the day's job is lost.

Nothing drains a repair shop's profit margin like a second call‑back for the same rough‑running 2105. The BH2QT85R9 arrives as a complete assembly with its plunger and barrel matched to KANGDA's production specifications, so the 1500 RPM governing curve falls exactly where the engine expects it. This consistency means no shimming struggles, no re‑timing by trial and error, and no follow‑up adjustment after the first 10 hours of run‑in. For the service bay, the Order No. 2QT32 also simplifies parts lookup-one number, one box, one predictable installation, which cuts the average bay time by nearly 30% compared to rebuilding the old head with aftermarket plunger kits that often introduce new variables.

The real drain on a repair bay comes from return jobs caused by parts that are "close but not exact." A mismatched delivery valve or a plunger with slightly different helix geometry will alter the injection timing at 1500 RPM, leading to white smoke, sluggish throttle response, and eventually cylinder wash‑down. Over the past season, many workshops have observed that pumps with softer metallurgy fail within 400 hours due to abrasive particles scoring the barrel wall; the KANGDA 2QT32 uses a hardened plunger sleeve that reduces the risk of bore deformation caused by high‑frequency contamination, especially in older fuel tanks that accumulate rust and microbial growth. This approach lowers the chance of a second tear‑down, which saves the service writer from having to explain another repair bill to an already unhappy customer.

Although the Changchai 2105 uses a mechanical inline pump rather than a high‑pressure common‑rail system, the economic logic is identical. In both architectures, precision mating surfaces determine fuel atomisation and combustion stability. For workshops that handle both legacy and modern engines, keeping a verified KANGDA pump on hand simplifies the troubleshooting flowchart: when a 2105 comes in with power loss at 18 kW load, swapping the BH2QT85R9 instantly isolates whether the issue is fuel supply or compression. This diagnostic shortcut saves labour hours that can be billed to more profitable jobs, while the mechanical governor's straightforward adjustment eliminates the need for proprietary diagnostic software-a practical advantage for shops that want to avoid investing in brand‑specific scan tools for older equipment.

Q1: How does the KANGDA 2QT32 hold up in continuous daily use compared to cheaper alternatives?
A: In field conditions, the 2QT32 typically maintains its calibrated fuel delivery beyond 2,000 hours in clean‑fuel environments. The primary advantage is not extended life but consistency-you avoid the mid‑season drift that forces operators to crank up the idle speed, which masks underlying wear.

Q2: Are there compatibility issues when fitting this pump to older 2105 blocks with worn camshafts?
A: The pump's mounting flange and drive gear match the original Changchai spec. However, if the engine's camshaft end‑play exceeds service limits, you may need to address that first; the BH2QT85R9 will not compensate for bottom‑end wear.

Q3: What is the typical failure mode for this pump in generator applications?
A: In constant‑speed generator sets running at 1500 RPM, the most common issue is governor linkage sticking, not pump internals. The KANGDA unit's governor design allows for easy cleaning without disassembly, which reduces shop labour costs on routine servicing.

Q4: Can the pump be bench‑tested before installation, and what data do I need?
A: Yes, but we recommend testing it on a calibration stand using the 18 kW fuel delivery curve. Many shops skip this and rely on the factory setting; with the 2QT32, the pre‑set calibration has proven reliable enough that bench verification is optional unless the engine has been heavily modified.

Q5: Does the pump's performance degrade with high‑sulphur fuel?
A: The KANGDA pump uses materials compatible with a wide range of diesel grades. Regular fuel filter changes have a much larger impact on pump longevity than the sulphur content itself, particularly for the 2105 engine's older injection system.

Q6: What quantity is recommended for a workshop's first bulk order?
A: For a typical repair shop servicing agricultural clients, an initial stock of 3 to 5 units of the BH2QT85R9 allows you to cover emergency replacements while minimising carrying cost. We also offer mixed‑pallet options with other KANGDA pump numbers for broader inventory diversification.
