KANGDA 2Q31 BH2Q85R8 Fuel Injection Pump – Direct Fit For Jiangdong 2102

Designed specifically for the Jiangdong 2102 series diesel engine, the KANGDA 2Q31 (BH2Q85R8) fuel injection pump delivers metered fuel at a governed speed of 3000 RPM in direct-drive configuration. This mechanical distributor-type pump is frequently specified by agricultural equipment workshops and aftermarket diesel parts suppliers as a like-for-like replacement for worn original assemblies, restoring proper fuel delivery without requiring modifications to the engine timing housing or fuel line routing.

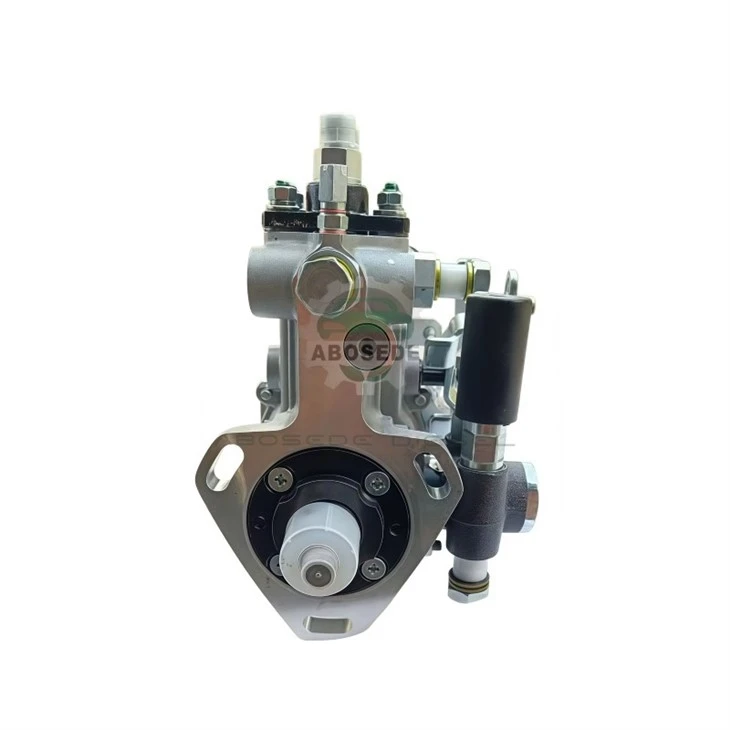

Fuel distribution in the BH2Q85R8 relies on a rotating plunger that simultaneously reciprocates to pressurize and sequence fuel to each cylinder. The pump is arranged for a 2-cylinder diesel cycle, employing a plunger measuring 8.5mm in diameter to regulate injection volume precisely for the Jiangdong 2102 under varying load conditions. A mechanical centrifugal governor is integrated within the pump body, modulating fuel rack position automatically to maintain steady idling and prevent overspeed at the 3000 RPM upper limit. Static injection advance is factory calibrated between 18° and 22° before top dead center, a window that suits the combustion chamber design of this particular engine. Mounting is accomplished through a flange-type connection that indexes directly with the engine gear train, assuring concentricity between the pump drive shaft and the camshaft-driven gear without requiring shimming or aftermarket adaptor plates.

Engine model Jiangdong 2102 powers a broad range of mobile and stationary machinery, including walk-behind tractors, combine harvesters, irrigation pumpsets, vibratory rollers, and standby generator units commonly deployed in Southeast Asian, African, and Latin American agricultural operations. For service facilities supporting Chinese-origin farm diesel equipment, the 2Q31 ordering code and BH2Q85R8 pump model serve as reliable cross-reference points when sourcing replacement fuel-metering components. Many repair shops keep this pump in stock because of its frequent demand during preseason overhauls, particularly in regions where the Jiangdong 2102 remains the dominant powerplant for small-holder farming and light construction tasks.

Before bolting the replacement pump into place, rotate the crankshaft until the No.1 piston reaches compression TDC, confirmed by aligning the mark on the vibration damper with the pointer on the timing cover. The drive gear on the BH2Q85R8 carries a timing dot that must mate with the corresponding mark on the engine's idler or cam gear; incorrect mesh will shift injection events and produce hard starting or excessive exhaust haze. Tighten the flange retaining nuts progressively in a cross pattern to 35–40 Nm, avoiding distortion of the pump housing. For final timing adjustment, the static drip method offers a simple workshop technique-rotate the pump drive until fuel just emerges from the delivery valve holder of No.1 cylinder, then lock the flange at that angular position. A dynamic check with a timing light and piezoelectric pressure pickup is recommended whenever available, but the drip approach yields acceptable results for field installations where sophisticated instruments are absent. After securing all high-pressure lines, idle the engine for roughly 5 minutes while bleeding trapped air from the injector lines, then inspect the mounting flange interface and delivery valve seals for any weeping fuel.

Q1: Will this pump physically interchange with older Jiangdong 2102 engines that originally used a different KANGDA pump code?
A: Yes, the BH2Q85R8 shares the same housing and gear-drive interface across all production years of the Jiangdong 2102. Always confirm that the drive gear tooth count matches your engine-units with early timing covers sometimes use a different idler ratio.

Q2: Can I operate this pump on high-sulfur diesel fuel found in some export markets?
A: The internal components are compatible with fuel sulfur content up to 5000 ppm. For fuels exceeding that level, we suggest shortening the oil-change interval and inspecting the plunger for lacquer deposits every 1000 hours.

Q3: How many hours of field operation typically pass before the governor requires recalibration?
A: Governor drift becomes measurable after roughly 2500–3000 operating hours, primarily due to spring fatigue. A simple no-load speed check at 3000 RPM reveals whether adjustment is overdue.

Q4: Are overhaul kits with gaskets, plunger, and delivery valves available for wholesale bulk orders?
A: Yes, KANGDA offers full BH2Q85R8 remanufacturing kits through its B2B channel. Bulk pricing and mixed-kit configurations can be negotiated for regular workshop accounts.

Q5: What visual clues point to a failing delivery valve rather than a worn plunger in this pump?
A: A delivery valve that fails to seat will cause fuel dribble and secondary injection, evident as a persistent haze at idle. A worn plunger, by contrast, shows up as power loss under load with no accompanying wetness around the high-pressure lines.

Q6: Is it mandatory to replace the drive gear when installing a new BH2Q85R8 pump?
A: No, the original gear can be transferred to the replacement pump, provided its teeth show no pitting or excessive backlash. Replace the Woodruff key and flange O-ring as a standard preventive measure during each pump swap.
