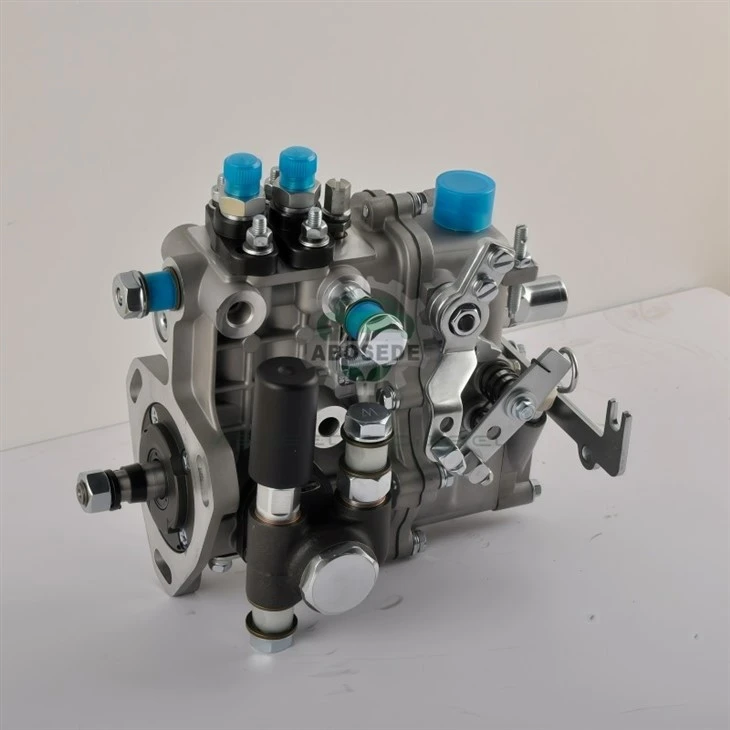

KANGDA 2Q01 BH2Q85R8 Fuel Injection Pump For 2100 Engine Applications

The KANGDA 2Q01 (ordering code 2Q01, pump assembly BH2Q85R8) is a factory-calibrated in-line plunger-type fuel injection pump developed specifically for the Yuchai 2100 two-cylinder industrial diesel platform operating at a governed 1800 RPM (electric) . This unit serves as the hydraulic heart of the fuel metering circuit, converting camshaft rotation into precisely timed high-pressure fuel pulses that trigger combustion in stationary power units, irrigation pumpsets, and compact construction loaders. Built around the time-proven port-helix spill control principle, the BH2Q85R8 delivers consistent injection quantity across both cylinders without relying on electronic actuators-a decisive advantage for workshops servicing off-grid equipment where diagnostic laptops are rarely available.

The BH2Q85R8 employs a P-type plunger and barrel set with a helical cut on the plunger's upper land, which governs the effective stroke by uncovering the spill port at a predetermined lift. This mechanical governor arrangement ties directly to the 2100 engine's torque curve, ensuring the fuel rack responds to load changes without excessive smoke or temperature spikes. The delivery valve, located atop each pumping element, incorporates a residual pressure retention feature that prevents secondary injection-a common failure point on worn pumps that causes nozzle coking. For the 1800 RPM synchronous speed (matching 60 Hz gen-set operation), the pump cam's lift profile is ground to a specific ramp angle that balances injection rate against combustion delay, reducing the mechanical knock typically heard on older two-cylinder diesels.

Beyond the primary application on Yuchai 2100 power units, this 2Q01 pump finds direct bolt-on compatibility with several Chinese 2L50 series blocks used in JMC tractors and Xinchai-derived stationary engines. Unlike CP3/CP4 common rail architectures that demand ultra-clean fuel (≤2 µm filtration), the BH2Q85R8 operates reliably with secondary fuel filters down to 10 µm, making it the preferred choice for African and Southeast Asian agricultural operations where fuel logistics remain challenging. The pump's mounting flange uses the standard SAE 2-bolt pattern shared across the YC2100 family, eliminating the need for custom adapters. Replacement of this mechanical unit typically restores full rated power within 45 minutes of shop labor, compared to the 4–6 hours required for common rail injector recalibration on modern Tier 4 engines.

Before securing the 2Q01 to the engine timing case, technicians must confirm the spill port closure point using the conventional static timing method. Rotate the crankshaft to 18° BTDC on the compression stroke of cylinder one, then slowly turn the pump drive gear counter-clockwise until fuel stops exiting the spill port on the number one delivery valve holder-this marks the precise commencement of injection. The pump gear's keyway orientation and the drive shaft's alignment marks must register perfectly; even a half-tooth error shifts injection timing by 6°, causing rough idle and elevated exhaust temperatures. After mounting, prime the low-pressure gallery by hand-pumping fuel until air-free fuel returns from the overflow valve, then crack each high-pressure line at the injector while cranking to purge residual air pockets that might delay start-up.

Q1: Does this BH2Q85R8 pump work with biodiesel blends up to B20?
A: Yes, the mechanical plunger tolerates B20 with minimal impact on the port-helix metering, provided fuel viscosity stays within 3–5 cSt. However, regular inspections of the delivery valve for gumming are advised-B100 is not recommended due to swollen rubber seals.

Q2: What is the typical overhaul interval for this KANGDA pump on a daily-use generator?
A: With quality fuel and OEM-grade filters, expect 6,000–8,000 running hours before the plunger and barrel show measurable wear. The telltale sign is a gradual drop in no-load maximum RPM-indicating internal bypass past the plunger helix.

Q3: Can I swap the BH2Q85R8 onto a Yuchai 2105 block that originally used a Bosch MW pump?
A: No direct swap-the cam lift profile and mounting hole spacing differ. The 2Q01 is dimensionally matched to the YC2100 series only; retrofitting would require a different timing gear cover and drive coupling.

Q4: Why does the pump occasionally lose prime after sitting for weeks?
A: The overflow valve or delivery valve seals may allow fuel drain-back. Install a low-pressure check valve in the supply line, or rebuild the governor housing o-rings-a common issue in high-ambient-temperature environments.

Q5: What failure mode occurs if the rack setting drifts beyond specification?
A: Over-fueling leads to black smoke and piston ring glazing; under-fueling causes power loss and misfire at 1800 RPM. Recalibrate the max fuel screw on a test bench to restore the factory fuel map-never adjust solely by ear.
