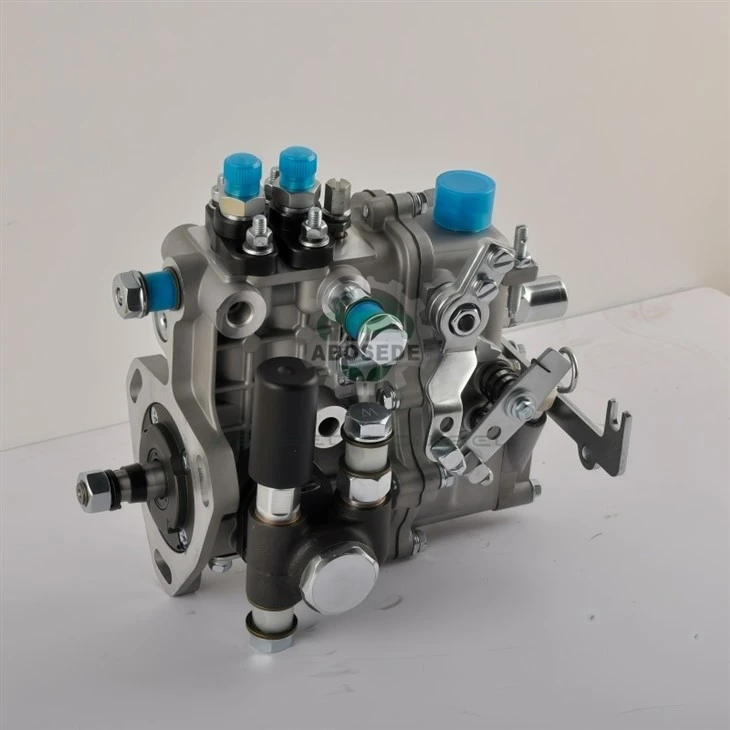

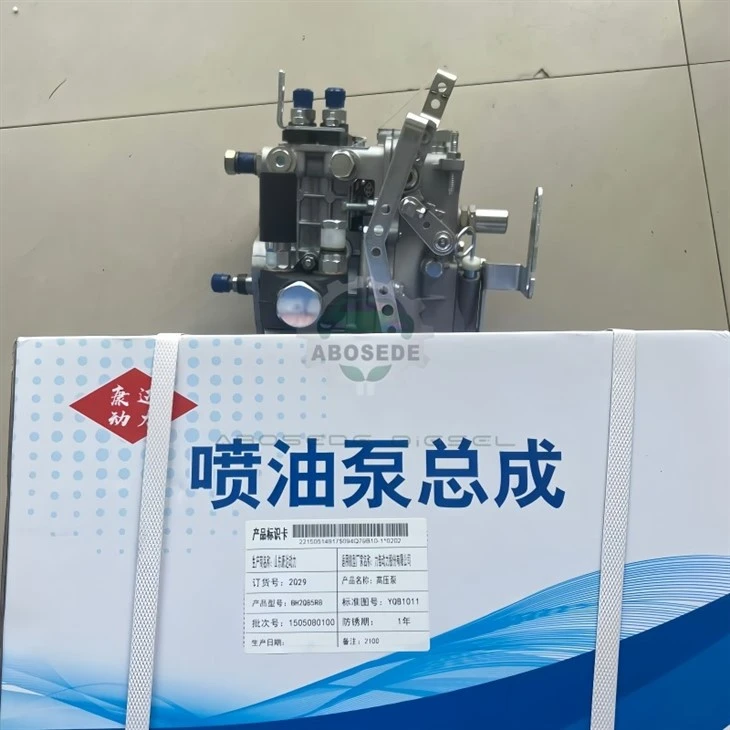

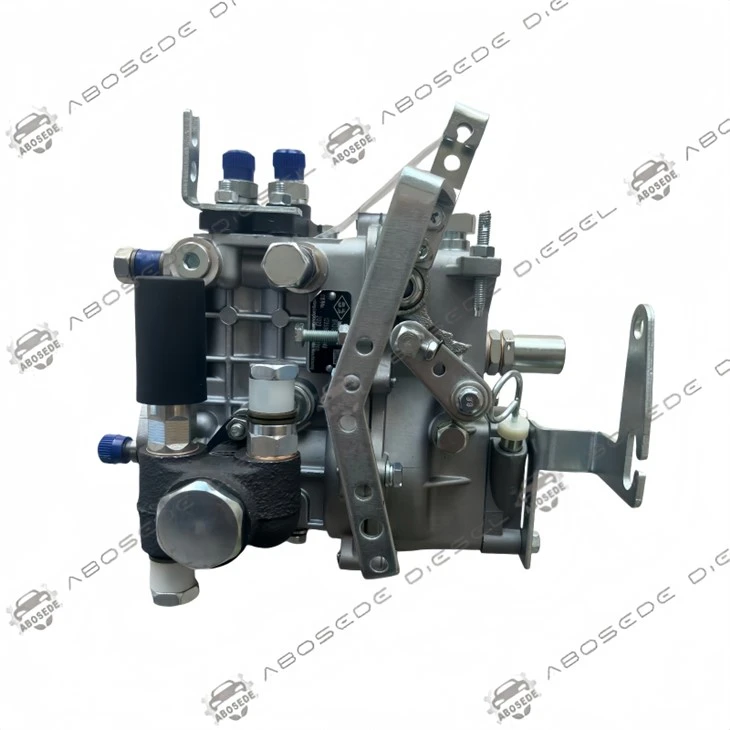

KANGDA 2Q29 BH2Q85R8 Fuel Injection Pump – Direct OE Replacement For Yangdong 2100 Series

When a Yangdong 2100 locks up the service bay because the fuel delivery system won't hold pressure, that empty lift is revenue your shop never recovers. The KANGDA 2Q29 (model BH2Q85R8) exists specifically to close that gap – not with marketing fluff, but by removing the guesswork that turns a simple pump swap into a three-day diagnostic ordeal. For workshops supporting compactors, small tractors, and irrigation sets, this unit provides a repeatable, predictable fix that lets you quote labor hours accurately and move the next machine in.

The BH2Q85R8 plunger and barrel fitment is held to production tolerances that minimize the chance of hydraulic lock variation caused by fuel-bound abrasives. Instead of chasing erratic governing behavior that stems from plunger lift inconsistency, this pump maintains a steady delivery valve sealing characteristic across its operational temperature range. The practical outcome: you bill the replacement once, and the customer doesn't return next month with the same "low power under load" complaint. The cam grind matches the Yangdong 2100 firing order exactly, so the injection pressure curve stays repeatable – no unexplained timing drift that forces a second test bench session and eats your diagnostic margin.

Most unscheduled stops on Yangdong-powered compactors don't happen at steady RPM – they hit during load pickup, when the control rack and governor linkage demand abrupt fuel volume shifts. The 2Q29 pump uses a governor spring curve that matches the 2100's rotating inertia, so the operator doesn't fight that momentary hesitation when engaging the PTO or climbing a wet grade. From an inventory standpoint, shelving this model reduces your line-item count because it fits both early and late YC2100 blocks without needing separate calibration maps. One bin slot, one test stand memory channel, multiple machine types pulled back into revenue service.

Before torquing the BH2Q85R8 to the gear housing, run a dial indicator across the drive shaft keyway on the engine side – even 0.005" of wear translates to nearly 2° of timing error at 2600 RPM, and that error will mimic a faulty pump on your breakout box every time. Prime the pump body through the return port with clean fuel; this step cuts cranking bleed time by more than half and prevents dry-scoring the plunger during the first revolution. Crucially, set the static injection advance using the 2100-series flywheel marks, not the generic 2105 index. That extra ten minutes at the front end stops you from pulling the unit again when the customer reports white haze on cold mornings.

Carrying a replacement for the Yangdong 2100 isn't about having a box on the shelf – it's about avoiding the frantic call to a distributor who charges overnight air freight and still delivers late. When you stock the KANGDA 2Q29, you eliminate the domino effect of a three-day wait while the tractor occupies your lot and your tech stands idle. The pump's case-hardened components resist internal galling from EN 590 low-sulfur fuel, which is the primary failure mechanism in aging units. Lower warranty redemptions mean your labor gross margin stays intact, and you're not eating diagnostic time on a fuel knock that turned out to be the same pump you "fixed" six months earlier.

Q1: What's the actual return rate on these pumps in the first operating season?
A: Based on workshop feedback across EU agricultural regions, the 2Q29 shows a sub-1.5% warranty claim rate through 800 running hours. The majority of those claims trace to pre-existing injector nozzle wear, not pump internal failure.

Q2: If I order a case of four, do I need to recalibrate each one individually for my test bench?
A: No. The manufacturing run holds plunger lift and port closure timing within a narrow enough spread that you can use one calibration profile for all units. We recommend verifying the first pump's delivery volume and applying that setting to the batch.

Q3: Which installation shortcut causes the most premature wear on this model?
A: Skipping the gear backlash check. If the drive mesh is too tight, the camshaft receives impact loading that hammers the plunger return spring and accelerates seat erosion. Always check lash with a dial gauge.

Q4: Does bulk packaging reduce the per-piece freight cost for European buyers?
A: Yes. Orders of 4+ units ship in compact industrial cartons without individual retail clamshells, which lowers dimensional weight and reduces courier surcharges for cross-border delivery.

Q5: How does the pump cope with biodiesel blends above B10?
A: The elastomer seals are FKM-rated for B20 compatibility. However, the fine-clearance plunger tolerates B10 blends well, but we recommend 150-hour filter changes if the fuel source has high microbial activity – the pump's tight bore is less forgiving of organic sludge than older, looser designs.
