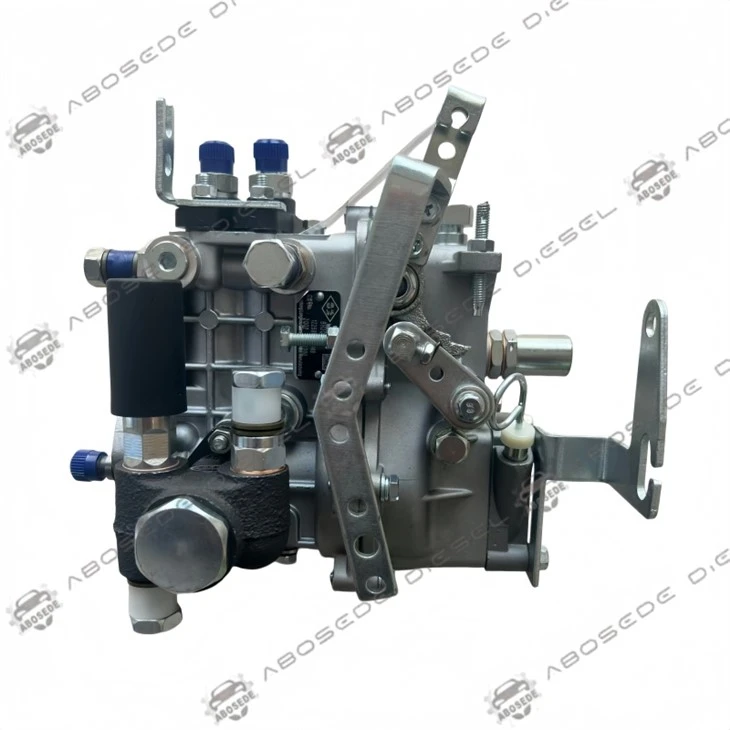

KANGDA 2Q02 BH2Q85R8 – Direct-Mount Fuel Pump For 2100 Diesel Power Units

This KANGDA 2Q02 fuel injection pump, identified by model BH2Q85R8, delivers factory-spec fuel pressure and timing for 2100 series diesel engines commonly found in Yunnan Jinma agricultural tractors and stationary industrial equipment. Rated for sustained operation at 1500 RPM, this mechanical inline unit governs fuel delivery through a precision plunger-and-barrel assembly, ensuring stable idle control and responsive load acceptance across varying field conditions. For workshop managers handling fleet maintenance or engine rebuilds, this pump represents a direct bolt-on solution that restores original power output without requiring additional adapters or calibration compromises.

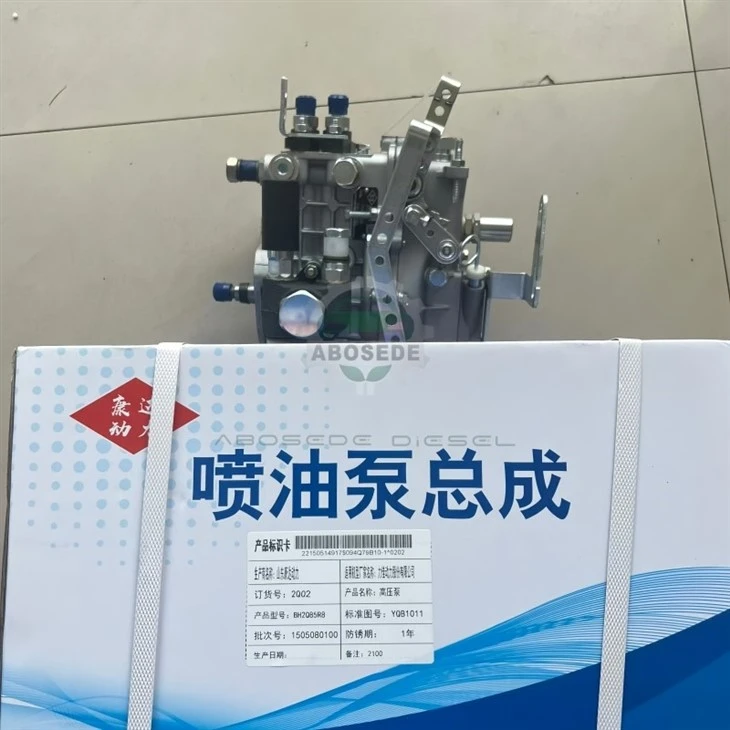

The BH2Q85R8 designation encodes the plunger diameter and cam stroke characteristics, directly influencing injection quantity and start-of-delivery timing. With a governed speed ceiling of 1500 RPM, this pump matches constant-speed applications such as generator sets and irrigation pumps, where throttle response linearity directly affects fuel economy. The 2Q02 ordering number corresponds to KANGDA's internal assembly batch, guaranteeing that each unit undergoes plunger matching and delivery valve leak testing before leaving the factory. Critical dimensional specs include the drive shaft spline count, mounting flange hole pattern, and governor lever arm geometry, all machined to align with Yunnan Jinma engine bell housings. Workshops should note that this pump employs a mechanical flyweight governor rather than electronic control, simplifying troubleshooting and eliminating sensor-related failure points common in modern common rail architectures.

Before bolting the BH2Q85R8 onto the engine, technicians must verify the fuel shut-off solenoid orientation and throttle linkage travel range to prevent binding. Proper installation begins with cleaning the mating surface on the gear housing, as old gasket residue often causes misalignment and premature drive shaft wear. Rotate the crankshaft to position the number-one cylinder at compression stroke TDC, then align the pump drive gear's timing mark with the idler gear reference point. Torque the mounting nuts progressively to avoid distorting the pump housing, which could bind the plunger inside its barrel. After installation, bleed the high-pressure lines thoroughly by cracking each delivery valve holder while cranking the engine, ensuring all trapped air evacuates before attempting to start. For shops performing in-frame overhauls, inspecting the drive coupling rubber element for cracking proves equally critical, as a worn coupler introduces timing scatter that mimics pump failure.

While modern common rail architectures dominate highway trucks, the mechanical BH2Q85R8 pump offers distinct advantages for off-road serviceability. Its component-level repairability allows workshops to replace individual plungers, delivery valves, or governor weights without scrapping the entire assembly-a cost-saving feature unavailable in electronically controlled units. For fleet operators running multiple 2100 engines, standardizing on this KANGDA pump simplifies spare parts inventory and reduces training overhead for maintenance crews. The mechanical governor's inherent fail-safe behavior, defaulting to idle position upon spring breakage, prevents runaway conditions that occasionally plague electronically actuated systems experiencing sensor shorts. Moreover, this pump tolerates minor fuel contamination better than high-pressure common rail pumps, making it a pragmatic choice for regions where diesel quality remains inconsistent.

Q1: Can I directly swap this BH2Q85R8 into a 2100 engine originally fitted with a different pump brand?
A: Yes, provided the drive shaft spline and mounting hole pattern match. We recommend measuring the existing pump's overall height and throttle lever offset, as minor variations exist between foundries. If mismatches occur, swapping the drive coupling and governor lever from your old pump usually resolves fitment issues.

Q2: What spare parts should I stock alongside this pump for routine overhauls?
A: Keep delivery valve holders, plunger return springs, and gasket kits on hand. The rubber coupler element between pump and drive gear also degrades with heat cycles, so ordering a spare coupler prevents unplanned downtime.

Q3: How do I verify if the pump's internal timing has shifted during shipping?
A: Check the witness mark alignment between the pump mounting flange and the timing gear cover. KANGDA paints a reference line across these components at the factory; if the paint line remains continuous, timing is preserved.

Q4: Does running biodiesel or high-sulfur fuel affect this pump differently than common rail units?
A: This mechanical pump tolerates B20 biodiesel and moderately high sulfur better than CR systems, but water separation remains critical. The plunger's tight clearances (approx. 2–3 microns) can still suffer corrosion from acidic combustion byproducts, so regular fuel filter changes are non-negotiable.

Q5: What is the typical lead time for pump calibration if I send my old unit in for core exchange?
A: Most calibration shops return a rebuilt exchange unit within 48–72 hours after receiving your core, depending on bench availability. Always request a calibration sheet showing delivery quantities at 100, 500, and 1500 RPM to confirm proper rack settings.
