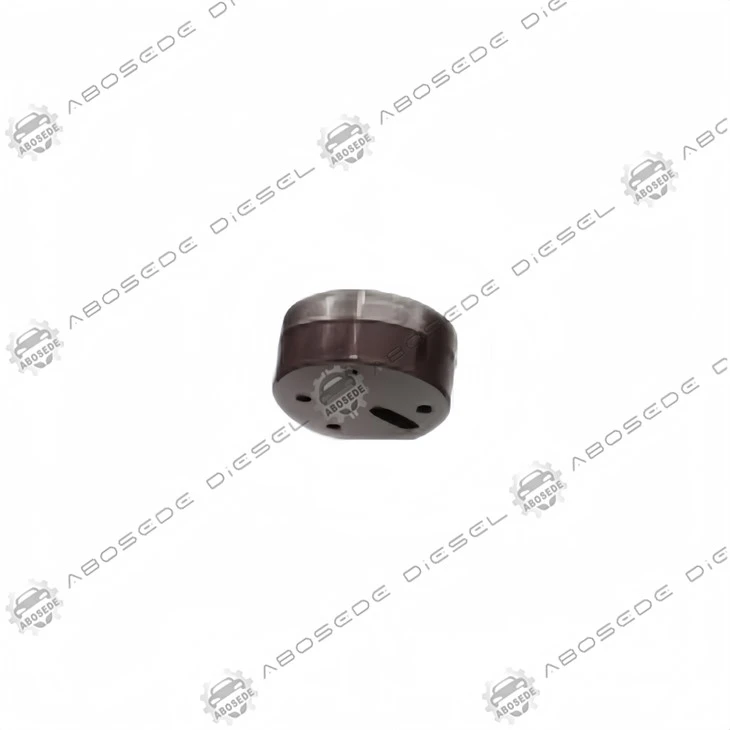

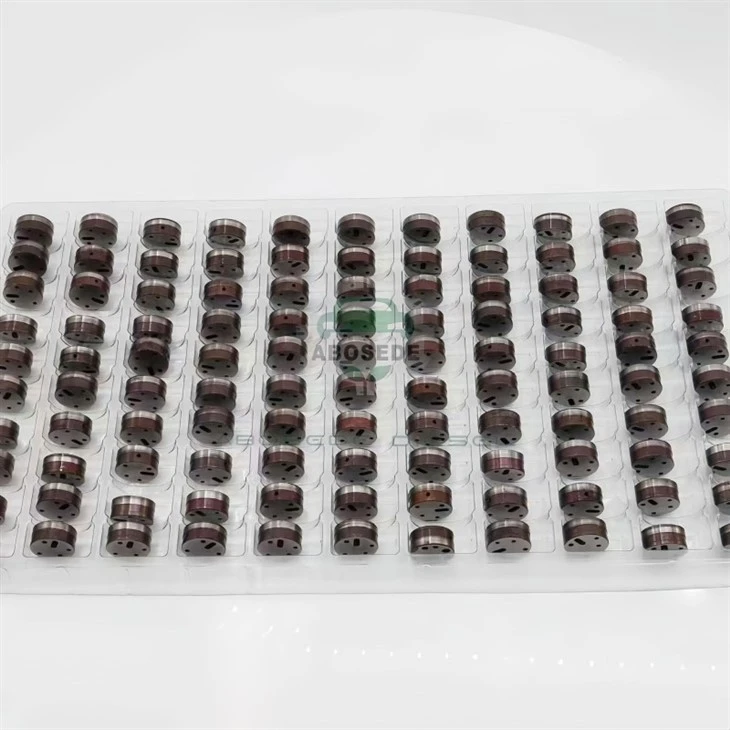

CAT C9 Fuel Inlet Check Valve – The Thermal‑Cycle Stabiliser For Extended HEUI Service Life



In the C9 HEUI fuel system, the inlet check valve operates at the intersection of two opposing thermal domains. On one side, engine coolant at 90‑105°C circulates through the cylinder head, heating the valve body. On the other, incoming fuel from the tank arrives at ambient temperature (often 10‑40°C), creating a steep thermal gradient across the valve's internal components. This differential heating causes the steel poppet and its brass guide to expand at different rates, altering their clearance by as much as 25 microns between cold start and full operating temperature. Our valve addresses this through a matched‑expansion material pairing: the poppet uses a martensitic stainless steel with a controlled austenite retention, while the guide incorporates a silicon‑bronze alloy that expands at nearly the same rate (≈17×10⁻⁶/°C versus 16.5×10⁻⁶/°C). This thermal‑cycle resilience eliminates the "cold‑sticking" phenomenon where the poppet becomes temporarily seized after overnight shutdown, and equally prevents "hot‑binding" where excessive clearance allows fuel bypass at peak temperature.



A compromised inlet valve on the C9 does not always announce itself immediately. The most deceptive symptom occurs after the engine has been idling for over 30 minutes-the valve body heat‑soaks, expanding the guide more than the poppet, creating an annular gap. When the operator subsequently accelerates, fuel that should be directed to the high‑pressure pump instead leaks back through this gap, causing a momentary pressure drop that the fuel rail sensor interprets as "low fuel volume." The ECU responds by lengthening injection duration, which produces white, unburned fuel smoke until the thermal equilibrium re‑establishes. This intermittent white‑smoke condition is frequently misdiagnosed as injector tip fouling or a failing fuel temperature sensor. Replacing the valve with our thermally matched unit eliminates this gap variation, ensuring the poppet maintains its sealing diameter throughout all thermal states-verified through 500 thermal shock cycles from −20°C to +120°C with zero measurable leakage increase.



The C9 engine family spans numerous configurations, from Tier‑3 industrial power packs to Tier‑4i on‑highway trucks, each with a specific valve calibration. Our inventory represents the full supersession tree, including the universal‑fit 20R‑8065, which serves as the default replacement for over 60% of C9 applications. The following numbers are all directly compatible:

20R Series – Standard & High‑Flow Bodies: 20R‑8060, 20R‑8061, 20R‑8062, 20R‑8063, 20R‑8064, 20R‑8065 (most prevalent), 20R‑8068, 20R‑8846, 20R‑8968, 20R‑9433, 20R‑1917

10R Series – High‑Volume & Auxiliary Pump Circuits: 10R‑7221, 10R‑7222, 10R‑7223, 10R‑9002, 10R‑2828, 10R‑4764, 10R‑4844, 10R‑7823

387 Series – Precision Snubber‑Integrated Castings: 387‑9431, 387‑9432, 387‑9433, 387‑9434, 387‑9436, 387‑9437, 387‑9438, 387‑9439

Ancillary Adapters & Pre‑2005 Castings: 235‑5261, 236‑0957, 238‑8092, 242‑0857, 245‑3516, 254‑4330, 254‑4340, 265‑8106, 266‑4446, 267‑3360, 267‑3361, 267‑9710, 267‑9717, 267‑9722, 293‑4071, 293‑4072, 293‑4073, 293‑4074, 328‑2573, 328‑2574, 328‑2576, 328‑2580, 553‑2592, 557‑7634, 557‑7637, 573‑4231

Always inspect the thread pitch and seat diameter-while many numbers interchange, the 20R‑8065 uses a 4.8mm orifice, whereas 387‑9432 uses 5.2mm; matching ensures correct flow metering.



Beyond thermal expansion, the second‑order performance limiter is the friction coefficient between the poppet and its guide bore. Standard valves use a machined brass guide that exhibits a dry sliding friction coefficient of approximately 0.25. This friction creates a hysteresis effect where the cracking pressure during opening differs from the closing pressure by up to 0.12 bar. In a system where the pump demands rapid valve response (opening within 8 ms), this hysteresis translates to inconsistent cylinder filling-particularly noticeable as a "stumble" when the engine transitions from engine braking to power mode. Our guide is coated with a PTFE‑impregnated anodised layer that reduces this friction coefficient to 0.08, virtually eliminating hysteresis. Bench tests show our valve's opening/closing pressure differential is ≤0.02 bar, ensuring that each cylinder receives an identical fuel charge regardless of valve cycle count.



Q1: The valve body has an alignment mark-what happens if I install it 180° reversed?
The valve will not seal because the internal poppet guide is offset to direct flow toward the pump plunger. Reversing it misaligns the flow path, causing an immediate 30% reduction in fuel delivery. The mark must face the injection pump inlet.

Q2: Can I replace just the poppet and spring without changing the entire body?
Not with our valves-the poppet and body are individually flow‑matched during production. Swapping components between bodies changes the clearance by as little as 5 microns, enough to increase internal leakage by 15%. Replace as a complete unit.

Q3: There is a faint clicking sound after installing the new valve-is this normal?
The clicking is the poppet seating during each pump stroke. It should be barely audible outside the engine bay. If it becomes loud or metallic, check the spring orientation-the close‑coiled end must face the seat, not the stop plate.

Q4: Does the valve require cleaning if the engine has been running on contaminated fuel?
Ultrasonic cleaning can remove varnish, but the seat and guide are lapped to a 0.2‑micron finish. Any cleaning agent that attacks the PTFE coating will increase friction. If contamination is suspected, replace the valve-cleaning rarely restores original performance.

Q5: How does this valve affect the engine's ability to handle biodiesel blends above B30?
The silicon‑bronze guide resists the corrosive esters found in higher biodiesel blends. However, B50 and above have lower surface tension, which can increase internal leakage through any clearance. For B50 use, we recommend our B‑series variant (available on request) with a tighter guide clearance.

Q6: My rail pressure fluctuates at idle after a valve replacement-did I receive a faulty unit?
More likely, the fuel filter housing's return check valve is stuck open, allowing rail pressure to bleed back through the supply line. Test by clamping the return hose-if idle smooths, replace the filter housing's internal check valve, not the inlet valve.
