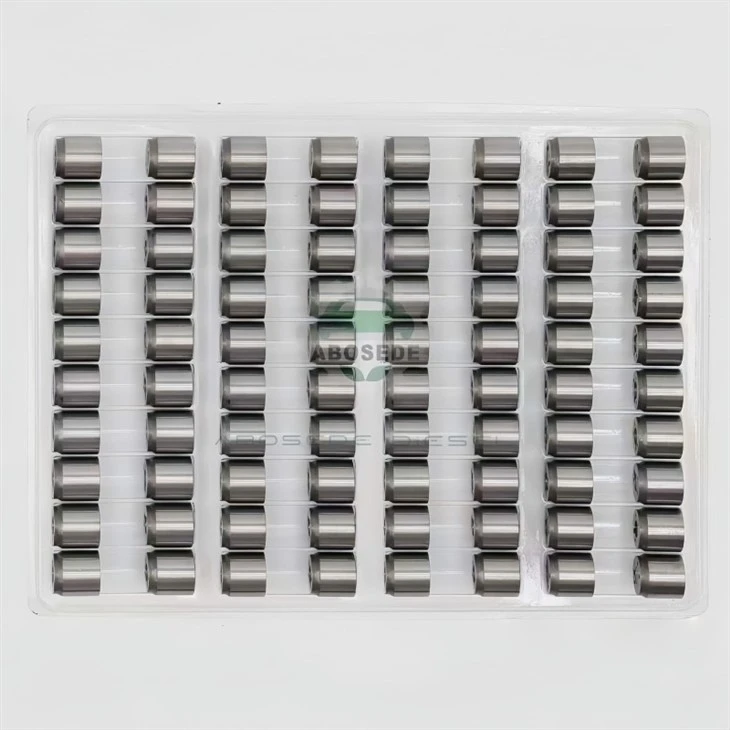

CAT C9 Diesel Valve – The High-Pressure Actuation Core For Precise Fuel Delivery Under Extreme Loads



Within Caterpillar's C9 high-pressure common-rail architecture, the diesel valve-often referred to as the fuel actuation valve or control metering unit-serves as the pneumatic-hydraulic transducer that converts the ECM's current commands into proportional fuel flow. Unlike smaller displacement engines, the C9 operates at rail pressures exceeding 1,800 bar while delivering fuel quantities up to 220 mm³ per stroke, demanding a valve that maintains consistent metering accuracy across a wide flow range. This component directly governs the timing and duration of fuel admission to the injector's control chamber, making it a primary determinant of combustion stability, emissions compliance, and fuel economy. This analysis examines the valve's engineering from a fluid power perspective, focusing on its pressure-balanced spool design, wear-resistant materials, and dynamic response under heavy-duty cycling.



The C9 diesel valve employs a servo-balanced spool configuration, where the high-pressure fuel acts on equal opposing areas, effectively neutralizing the hydraulic forces that would otherwise cause unintended opening or closing. This balance is achieved through precise land diameters and a central pressure-equalization groove that connects the two end chambers via a calibrated damping orifice. The result is a net hydraulic force near zero, allowing the solenoid to control the spool position with minimal current-typically 0.8–1.0 A for full stroke. The spool stroke is set at 0.6 mm, providing sufficient flow area (equivalent to a 2.5 mm diameter orifice) to fill the injector control chamber within 0.8 ms while maintaining excellent metering resolution. This geometry ensures that the C9 delivers consistent fuel quantities from idle to rated power, with a flow linearity error of less than ±2.5% across the entire operating range.



The following table consolidates all OEM references that are directly replaceable by this diesel valve assembly. These numbers span multiple C9 production variants, from early Tier 3 to interim Tier 4 configurations. Despite the variety of prefixes-such as 20R- (Caterpillar Reman), 10R- (service parts), and numeric codes like 235- or 387--the critical mounting interface, electrical connector pinout, and hydraulic port threading remain standardized, guaranteeing a straightforward replacement without modifications.

OEM Ref.	OEM Ref.	OEM Ref.	OEM Ref.	OEM Ref.
235-5261	254-4330	267-3361	293-4072	328-2573
387-9436	20R-8068	557-7637	10R-7221	20R-8968
236-0957	10R-9002	254-4339	267-9710	293-4073
20R-8065	328-2580	387-9437	20R-8062	573-4231
20R-8846	238-8092	254-4340	267-9717	328-2576
20R-8065	387-9431	387-9438	577-7633	10R-7223
20R-8065	242-0857	265-8106	267-9722	387-9432
20R-8065	387-9432	387-9439	20R-8061	10R-2828
11R-1582	245-3516	20R-8060	266-4446	293-4071
20R-8063	293-4074	387-9433	553-2592	10R-4764
20R-1917	387-9438	20R-8060	267-3360	387-9434
20R-8063	328-2574	387-9434	557-7634	10R-4844
20R-8064	-	-	-	-

Note: Minor suffix variations often correspond to different O‑ring materials or connector boot colors, but the functional dimensions and performance parameters are identical across all listed numbers.



Proper mounting of the diesel valve is critical to achieving its designed performance. The retaining bolts must be tightened to 35–38 Nm in a cross-pattern sequence to distribute the clamping force evenly. Prior to installation, inspect the O-ring groove for burrs and apply a thin film of clean engine oil to the seals to prevent rolling or pinching during insertion. After mounting, perform a preliminary electrical check: measure the coil resistance (should be 2.8–3.2 Ω at 20°C) and ensure there is no short to ground. During the first engine start, monitor the fuel return line for excessive flow-a sudden surge may indicate that the spool is stuck in the open position, requiring immediate removal and inspection.



Q1: How do I differentiate between a failing diesel valve and a faulty injector nozzle?
A: Perform a leak-off test: a sticking valve typically causes uniform flow deviation across all cylinders, while a faulty nozzle produces uneven patterns with one or two cylinders showing significantly higher or lower return volumes. Additionally, valve issues often trigger fuel trim codes (e.g., P0088, P0090), whereas nozzle problems manifest as misfire codes.

Q2: Can the valve be refurbished by replacing the O-rings and cleaning the spool?
A: While simple cleaning may restore function temporarily, the spool and sleeve are wear-matched pairs. Any abrasive cleaning alters the clearance and degrades the DLC coating, leading to premature failure. Replacement is the only guaranteed solution for restoring factory performance.

Q3: Why does the C9 valve use a peak-and-hold current profile instead of a constant current?
A: The peak current ensures fast opening (reducing electrical lag), while the lower hold current minimizes coil heating and power draw-especially important in the C9's high-duty applications where the valve may be energized for extended periods at full load.

Q4: What is the effect of fuel contamination on the valve's operation?
A: Water and particulates accelerate erosion of the metering edges and can cause the spool to stick. The C9 valve's fine-clearance design makes it particularly sensitive; using a 5-micron fuel filter is essential to protect the valve and maintain its calibration.

Q5: Is there a recommended replacement interval for the diesel valve in off-highway use?
A: Caterpillar does not specify a fixed interval, but many fleets adopt a proactive replacement every 8,000 hours or during an in-frame overhaul, as the valve's magnetic properties and spring tension gradually degrade, affecting fuel economy and emissions.

Q6: Can an aftermarket ECM tuning affect the valve's longevity?
A: Yes, aggressive tuning that increases injection pressure or extends pulse width will subject the valve to higher hydraulic forces and faster wear. Conversely, factory-compliant tuning preserves the valve's operational envelope and ensures its rated service life.
