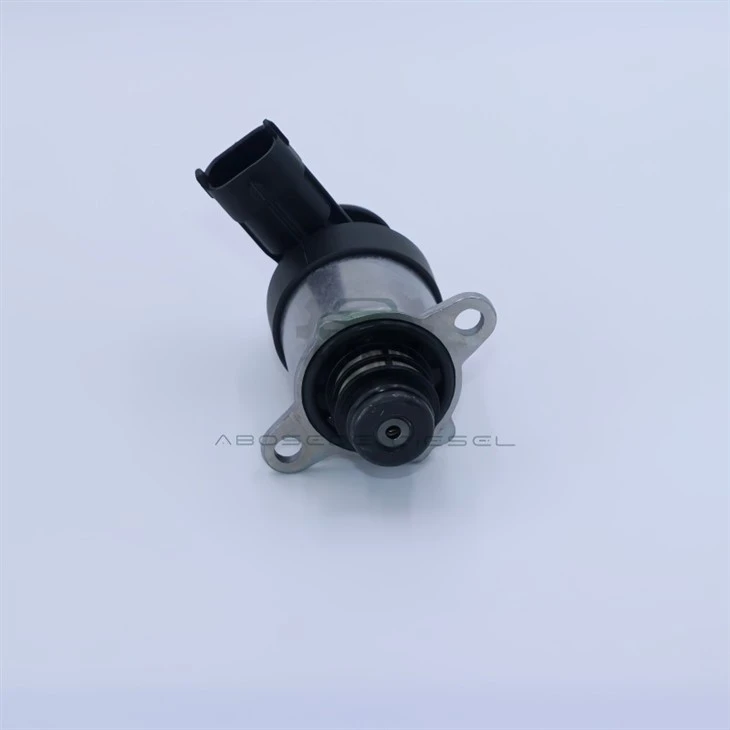

Bosch 0928400818 – The Metering Valve That Controls Spool Launch Friction For Consistent Start-of-Movement

Every time the ECU commands a duty cycle change, the metering valve spool must overcome its static friction-the force that holds it in place when it is not moving-before it can begin to slide. This static friction is not constant; it varies with the fuel temperature, the time the spool has been stationary, and the condition of the sliding surfaces. If the static friction varies, the spool's start-of-movement is delayed by a different amount each time, introducing a timing error that the ECU cannot correct. The 0928400818 is engineered with a spool and sleeve combination that minimises the variation in static friction, ensuring that the spool begins to move at the same time after each command, regardless of the operating condition. It is a valve that starts moving when the ECU expects it to start moving.

The spool in a metering valve is held in place by static friction when it is not moving. When the ECU increases the duty cycle, the magnetic force must overcome this static friction before the spool can move. The time required to overcome the static friction is the "breakaway delay" - it can be 1-2 ms of the total response time. If the breakaway delay varies - because the static friction has changed - the spool starts moving at a different time, and the fuel delivery is incorrect. The variation is small, but in a multiple-injection system, even a 0.5 ms variation in the pilot injection timing can affect the combustion noise and the particulate emissions. The 0928400818 uses a spool with a surface treatment that reduces the variation in static friction, and a sleeve that is honed to a specific surface finish that promotes consistent breakaway.

The static friction is determined by two factors: the material pair (spool and sleeve) and the surface finish of the sliding surfaces. The 0928400818 uses a spool made from a high-speed steel that has a surface treatment - a thin layer of tungsten carbide that reduces the coefficient of static friction. The sleeve is honed to a specific surface finish - Ra 0.06 µm - that is smoother than the finish used on standard valves. This smooth finish reduces the adhesion between the spool and the sleeve, which is the primary cause of static friction variation. The spool also has a micro-groove pattern that retains a thin film of fuel, preventing the spool from sticking to the sleeve when it is stationary. This combination of surface treatment, finish, and micro-grooving ensures that the static friction is consistent and low.

The static friction can increase over time if the spool and sleeve become contaminated with varnish deposits or abrasive particles. The increase in static friction causes the breakaway delay to increase - the spool starts moving later than it should. The symptom is often a slight roughness in the idle - the variation in the breakaway delay causes the pilot injection timing to vary, which is audible as a change in the combustion noise. The genuine 0928400818 uses a spool coating that resists varnish adhesion, and the sleeve is made from a material that does not react with the fuel to form deposits. If the static friction does increase, the only solution is to replace the valve - the spool and sleeve are a matched pair that cannot be serviced separately.

Installing the 0818 is similar to other CP4 valves - clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 23 Nm ± 2 Nm. However, there is a specific procedure: perform a dwell time check after installation. The breakaway delay can be measured by commanding a rapid duty cycle step and monitoring the rail pressure - the time between the command and the pressure change is the breakaway delay. With a new 0818, the delay should be consistent and short (less than 2 ms). If the delay is longer or varies, check the installation - the valve may not be seated correctly, or the O-ring may be damaged. The dwell time check is a quick test that can be performed with a diagnostic tool that has a transient recording function.

Q1: How can I tell if my valve's static friction has increased without removing it?
→ Use a diagnostic tool to record the response time of the metering valve. A valve with increased static friction will show a longer and more variable response time - the delay between the command and the pressure change will be inconsistent. A well-functioning 0818 will show a consistent response time of less than 14 ms.

Q2: Can I use the 0928400818 on a VW Touareg that originally used the 0742?
→ Yes, in most CP4.2 applications. The 0818 has the improved static friction control, and it is a direct replacement for the 0742 in many applications. Always verify compatibility with the engine's calibration.

Q3: Why does my engine have a slight roughness at idle that goes away when the engine speed is increased?
→ This is a classic symptom of variable static friction - the breakaway delay is inconsistent at idle, causing the pilot injection timing to vary. The roughness disappears at higher speeds because the dither frequency is higher and the spool is moving continuously. The 0818's controlled static friction is designed to prevent this.

Q4: What is the most common cause of static friction increase in this valve?
→ Varnish deposits from low-quality diesel and debris from a degraded fuel filter. The 0818 uses a coating that resists varnish, but regular fuel filter changes are still the most effective prevention. The filter should be changed every 20,000 km.

Q5: I replaced the valve but the idle roughness persists - is the valve defective?
→ Check the injector balance rates - a worn injector can cause a roughness that the metering valve cannot correct. Also, check the rail pressure sensor - a drifting sensor can cause the ECU to command incorrect duty cycles. If the injectors and sensor are good, then the valve may be the issue.

Q6: Does the static friction change with the fuel temperature?
→ Yes, the static friction changes slightly with temperature because the fuel viscosity changes. The 0818 is designed to keep the static friction variation within ± 5 % across the full temperature range, so the breakaway delay remains consistent.
