4903523 Bosch Fuel Metering Valve – Micro-Contaminant Defense & Injector Protection For CP3 High-Pressure Pumps On Heavy-Duty Diesel Engines

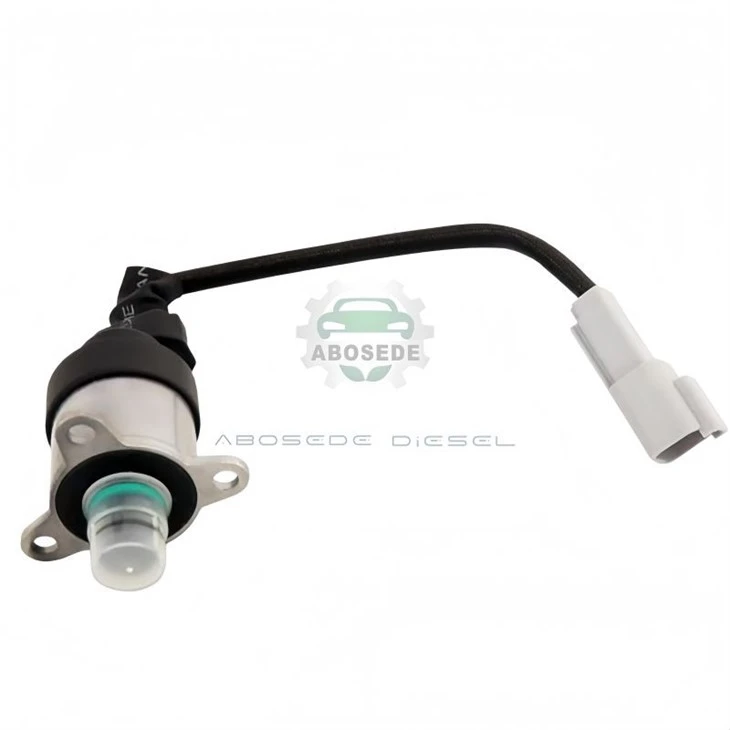

The 4903523 is a Bosch inlet metering valve for CP3 high-pressure common rail pumps. Its most critical protective function is not widely discussed: it acts as the final hydraulic barrier against microscopic abrasive particles that have passed through the fuel filter. A typical heavy-duty fuel filter captures particles larger than about 5 microns. However, hard silicate dust particles in the 2–5 micron range can still pass through. These particles are small enough to enter the precision clearances inside the metering valve and the high-pressure pump, yet sharp enough to erode metal surfaces over time. A metering valve with soft, unprotected metering edges will gradually be worn away by this continuous micro-abrasion. As the edges erode, the valve's flow calibration drifts, and - more importantly - the eroded metal particles are carried downstream into the pump and injectors, where they cause secondary damage. The 4903523 is built with hardened, erosion-resistant metering edges and internal surfaces that minimize the generation of wear debris. By preserving its own geometry and not contributing to the particulate load in the fuel, this valve directly protects the high-pressure pump and the expensive injectors that depend on clean fuel. It fits heavy-duty diesel engines using Bosch CP3 high-pressure pumps.

Diesel fuel contains microscopic particles even after passing through a properly maintained filter. Road dust, primarily composed of silica, is extremely hard - around 7 on the Mohs scale, compared to hardened steel at around 6–7. Particles in the 2–5 micron range have just enough mass to be carried by the fuel flow but are small enough to escape the filter media. Inside the metering valve, fuel accelerates to speeds over 15 meters per second as it passes through the narrow metering slots. These high-velocity particles strike the sharp metering edges like a continuous sandblasting process. Each impact removes a microscopic amount of material. Over hundreds of thousands of kilometers, the once-sharp edges become rounded. The flow coefficient changes. The engine computer detects the resulting pressure error and adjusts the duty cycle upward to compensate. Meanwhile, the tiny metal fragments eroded from the valve - typically chromium carbide or steel particles - join the silica dust in the fuel stream, heading toward the high-pressure pump's plunger barrels and the injector nozzles.

The 4903523 incorporates a two-part defense against particle-induced damage. First, the metering spool and its control edges are case-hardened to a depth that maintains hardness even as surface material slowly erodes. This is not a thin coating that can be penetrated; it is a metallurgical treatment that transforms the near-surface material into a wear-resistant layer. The metering edges retain their sharp geometry far longer than unhardened or thinly coated alternatives. Second, the internal flow paths inside the valve are designed to avoid trapping particles or creating recirculation zones where debris can accumulate and then release as a concentrated slug. The smooth, continuously curved galleries guide particles through the valve without allowing them to embed in surfaces or build up. These design choices mean the 4903523 generates significantly less internal wear debris over its service life, so the fuel reaching the high-pressure pump is cleaner.

Injector nozzles have precision-drilled holes measured in microns. A single hard particle larger than 3–4 microns can become lodged in a nozzle hole, disrupting the spray pattern and causing uneven combustion. Even if the particle passes through, the continuous passage of micro-abrasives erodes the hole edges, increasing flow and degrading atomization over time. The 4903523 reduces this risk in two ways: it does not shed its own metal into the fuel, and its erosion-resistant edges maintain correct metering for longer, preventing the over-fueling that can lead to excessive soot formation and further abrasive carbon particles in the combustion chamber. By maintaining clean, accurately metered fuel delivery, the valve helps injectors achieve their designed service life.

Particle-induced wear in a metering valve produces a gradual upward drift in the hot idle duty cycle, similar to other wear mechanisms. However, it may be accompanied by signs of injector wear if the contamination has been ongoing. If a fleet notices both rising metering valve duty cycles and premature injector failures - such as spray pattern defects, increased leak-off, or uneven cylinder balance - the root cause may be micro-contamination eroding multiple components. Inspecting the removed metering valve under magnification can reveal the characteristic "frosted" appearance of the metering edges, indicating erosion. Regularly cutting open and inspecting fuel filters for silica content can also help identify contamination sources before they cause damage.

Q1: Can the 4903523 filter out particles that the fuel filter missed?

No. The metering valve is not a filter. It does not remove particles from the fuel. Instead, it is built to resist the erosive effects of those particles and to avoid generating its own wear debris that could damage downstream components.

Q2: What fuel filter rating should I use to best protect the 4903523?

Use a fuel filter with a nominal rating of 5 microns or better, as specified by the engine manufacturer. While the valve is erosion-resistant, no component is immune to high concentrations of abrasive particles. Good filtration is the first line of defense.

Q3: How can I tell if the metering valve has been damaged by contaminated fuel?

If the valve's hot idle duty cycle has risen significantly and the removed valve shows a dull, matte finish on the metering edges under magnification, contamination erosion is likely. The presence of silica or metal particles in the fuel filter element supports this diagnosis.

Q4: Will the 4903523 stop existing fuel system contamination from damaging the injectors?

It will not generate new debris, but if the fuel already contains a high concentration of abrasive particles from a failed component upstream, those particles will still pass through. The source of contamination must be addressed.

Q5: Does the 4903523 require a break-in period?

No. The hardened surfaces are ready for service immediately. There is no break-in procedure. After the standard ECM fuel trim reset, the valve will operate within its calibrated range.

Q6: Can using biodiesel blends increase the risk of particle erosion?

Biodiesel has higher lubricity, which can reduce some wear mechanisms, but it does not alter the hardness of silica particles. The same filtration and fuel quality practices apply regardless of fuel type.
