0928400502 Bosch Fuel Metering Valve – Cylinder Balance Support & Combustion Uniformity For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

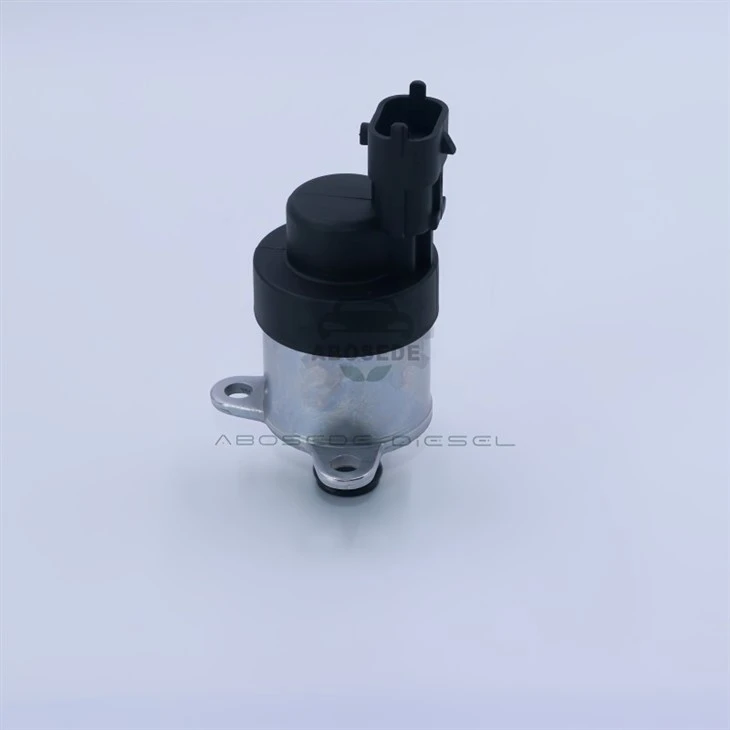

The 0928400502 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. In a multi-cylinder diesel engine, every cylinder should produce the same power. The engine computer commands the same injection duration to each injector, expecting the same fuel mass to enter each cylinder. This only works if the rail pressure is the same every time an injector opens. When the metering valve maintains steady rail pressure, all six cylinders receive equal fuel. The engine runs smoothly, with balanced power strokes and even exhaust temperatures. When the valve allows rail pressure to drift, cylinder-to-cylinder fuel delivery becomes uneven. One cylinder may receive slightly more fuel, another slightly less. The imbalance creates vibration, uneven wear, and increased emissions - often without triggering a fault code. The 0928400502 is calibrated to hold rail pressure within a tight window, supporting balanced fuel distribution across all cylinders. This valve fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

Common rail injectors are not individually flow-controlled. Each injector opens for the exact duration the engine computer commands. The amount of fuel sprayed depends on the injection duration and the rail pressure at the moment of opening. If the rail pressure is 1,600 bar when cylinder one fires, and 1,585 bar when cylinder three fires a fraction of a second later, those two cylinders receive different fuel quantities even though the computer commanded the same opening time. A 15-bar difference may seem small, but at high injection pressures it can shift the delivered fuel mass by several percent. Over thousands of combustion cycles, this imbalance creates measurable differences in cylinder contribution. The engine computer monitors crankshaft acceleration after each power stroke to detect misfires, but small imbalances can exist below the detection threshold - gradually wearing one cylinder's components faster than the others. The 0928400502's stable flow control keeps the pressure baseline consistent, ensuring that each injector starts from the same hydraulic condition.

Uneven cylinder fueling produces a visible symptom: exhaust port temperature differences. A healthy engine with balanced fuel delivery shows exhaust temperatures within 40–50°C across all cylinders at steady load. When the metering valve contributes to cylinder imbalance, the spread widens. One or two cylinders may run 80–120°C hotter than the others. This temperature spread accelerates valve seat wear on the hottest cylinder, can cause localized overheating of the piston crown, and may lead to uneven turbocharger inlet conditions. A technician can measure exhaust port temperatures with an infrared thermometer during a routine service - a non-invasive check that takes minutes. If the spread exceeds the manufacturer's guideline and the injectors have been ruled out through leak-off testing, the metering valve should be evaluated. A hot idle duty cycle that has drifted above 30% combined with a wide temperature spread points toward the valve as the likely cause.

Cylinder imbalance from uneven fueling also affects how the engine feels. Each cylinder's power stroke creates a torque pulse. When all pulses are equal, the engine runs smoothly and the engine mounts absorb the regular vibration. When one cylinder consistently produces more or less torque, the pattern becomes irregular. The driver may feel a subtle shake or roughness, often at idle or light load, that is difficult to localize. Unlike a misfire, which is sharp and obvious, a metering-valve-induced imbalance produces a softer, more diffuse vibration. It may be more noticeable in the cab than in the engine bay. Because the imbalance is small, the engine computer does not flag it as a fault. The driver may simply report that the truck "doesn't feel as smooth as it used to." Replacing a worn metering valve with the 0928400502 restores the even fuel delivery that supports balanced combustion, eliminating this source of vibration at the root.

Both a worn metering valve and worn injectors can cause cylinder imbalance, but the patterns differ. Injectors tend to fail individually - one injector's spray pattern degrades or its leak-off increases. The resulting imbalance affects one or two specific cylinders, and the problem stays with those cylinders. A metering valve affects all cylinders together, but the imbalance can shift. Because the rail pressure instability is not synchronized to a particular cylinder, which cylinder runs hot or cold may change with engine speed and load. If a cylinder balance test shows the weak cylinder changing between tests, the metering valve is more likely than a specific injector. For accurate diagnosis, perform both an injector leak-off test and a metering valve duty cycle check. If all injectors pass but the duty cycle is elevated, the valve is the probable source of the imbalance.

Q1: My truck has a slight vibration at idle that disappears above 1,000 RPM. Injectors were tested and passed. Is the metering valve a possible cause?

Yes. Cylinder imbalance from rail pressure instability is often most noticeable at idle, where the fuel demand is lowest and the metering valve operates in its most sensitive range. A valve with low-flow non-linearity can produce uneven pressure that shifts cylinder contribution, creating a vibration that smooths out as engine speed and fuel demand increase.

Q2: Can a metering valve cause one cylinder to run hotter than the others?

Yes. If rail pressure varies slightly from one injection event to the next, the cylinder that receives the higher-pressure injection gets more fuel and runs hotter. An exhaust port temperature check can reveal this pattern. If the hot cylinder changes position between tests, the metering valve is more likely the cause than a fixed injector problem.

Q3: Will a cylinder balance test on a scan tool always catch a metering valve imbalance?

Not always. A metering valve imbalance can be subtle and shifting, so a single test may not capture it. Repeating the test at different engine speeds and loads improves the chance of detection. If the imbalance appears inconsistently, the valve should be investigated alongside the injectors.

Q4: Does the 0928400502 need any special setup to support even cylinder fueling?

No. The valve's cylinder balance benefit comes from its factory flow calibration and stable mechanical design. There is no adjustment or programming related to cylinder balance. After installation and the standard ECM fuel trim reset, the valve supports balanced operation as part of its normal function.

Q5: How can I confirm that replacing the metering valve fixed the imbalance?

After replacement and a short period of operation, repeat the exhaust port temperature measurement under the same conditions as before. The temperature spread between cylinders should shrink to within the manufacturer's guideline. A follow-up cylinder balance test should show steady, even contributions across all cylinders.

Q6: Does uneven fuel distribution damage the engine over time?

Yes. The cylinder that consistently receives more fuel operates at a higher combustion temperature, which accelerates exhaust valve and valve seat wear. It also subjects the piston and cylinder head to greater thermal stress. Over tens of thousands of kilometers, this can lead to premature component failure in the hottest cylinder while the others remain in good condition.
