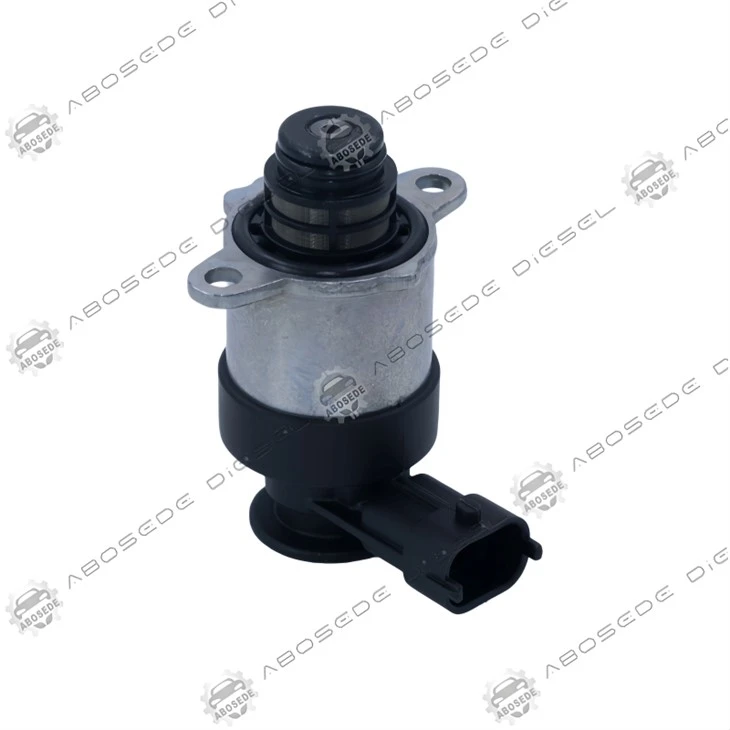

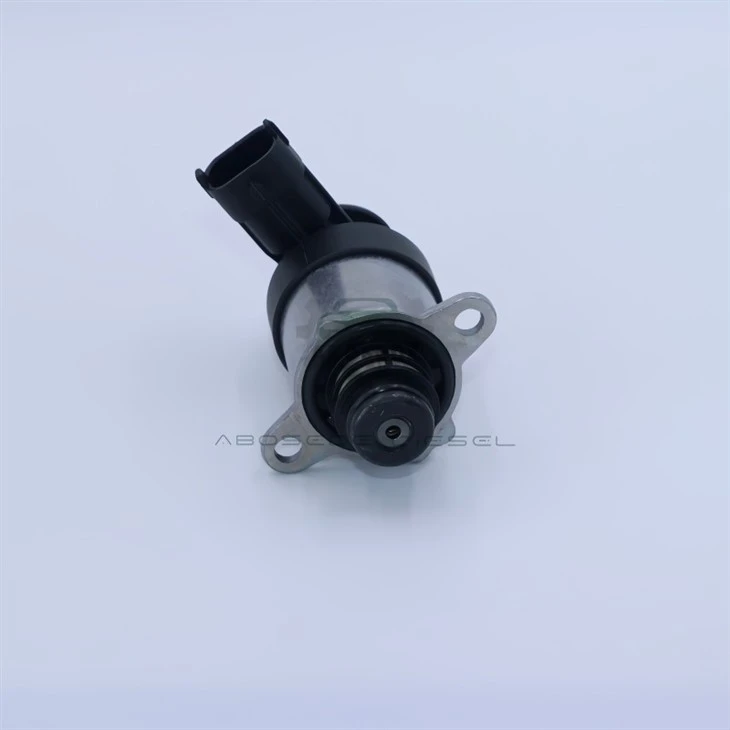

Bosch 0928400815 – The Metering Valve That Manages Reverse Flow Transients For Stable Pressure Control

In a common-rail system, the metering valve is typically considered a forward-flow device-it controls the fuel entering the pump plungers. However, during certain operating conditions, such as when the throttle is released or when the pump speed changes rapidly, a reverse flow transient occurs. Fuel momentarily flows backward through the valve, creating a pressure wave that can disturb the armature position and introduce a metering error on the subsequent forward cycle. The 0928400815 is engineered with a reverse-flow damping feature that attenuates these transients, ensuring that the valve remains stable regardless of the flow direction. It is a valve that manages flow in both directions, not just forward.

When the high-pressure pump's plungers are in the suction stroke, fuel flows forward through the metering valve into the plunger chamber. However, when the plunger transitions to the compression stroke, a momentary pressure rise at the valve outlet can create a reverse flow-fuel flows backward through the valve toward the inlet. This reverse flow is brief, typically 2-5 ms, but it creates a pressure wave that travels back through the valve and acts on the armature. If the valve is not designed to handle this reverse flow, the armature can be pushed off its commanded position, introducing a metering error that persists into the next forward flow cycle. The 0928400815 uses a reverse-flow damping chamber at the valve outlet that absorbs the pressure wave before it reaches the armature, ensuring that the armature remains stable.

The reverse-flow damping is achieved by a chamber at the valve outlet that is connected to the main flow path through a calibrated restriction. When the forward flow is occurring, the chamber is filled with fuel at the outlet pressure. When the reverse flow begins, the pressure wave enters the chamber and is absorbed-the chamber acts as a hydraulic capacitor, compressing the fuel and absorbing the energy of the wave. The restriction limits the rate at which the pressure wave can pass through the chamber, ensuring that the armature face does not see the full pressure spike. The chamber volume and restriction diameter are calibrated to the CP4.2 pump's flow reversal frequency-the damping is effective across the full operating range, reducing the reverse-flow disturbance by approximately 85 %.

The reverse-flow damping can be lost if the damping restriction becomes blocked, or if the chamber is damaged. A blocked restriction prevents the chamber from absorbing the pressure wave, and the reverse-flow disturbance is transmitted to the armature. The first symptom is often a slight hesitation on tip-out-the reverse flow disturbs the armature, and the valve does not open as quickly on the next tip-in. The genuine 0928400815 uses a restriction that is designed to resist blockage-the orifice is positioned in a high-flow area, and the chamber is designed so that the flow through it clears any deposits. If the damping is lost, the valve must be replaced.

Installing the 0815 is similar to other CP4 valves-clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 23 Nm ± 2 Nm. However, there is a specific verification step: perform a tip-out test after installation. With the engine at a steady speed, release the throttle suddenly and monitor the rail pressure. The pressure should drop smoothly without any hesitation or spike. If the pressure hesitates or spikes, the reverse-flow damping may not be effective. The tip-out test is a simple functional check that can be performed on a test drive.

Q1: How can I tell if my valve's reverse-flow damping is compromised without removing it?
→ Perform a tip-out test-release the throttle suddenly and monitor the rail pressure. If the pressure hesitates or spikes, the reverse-flow damping may be compromised. A well-functioning 0815 will show a smooth pressure drop without hesitation.

Q2: Can I use the 0928400815 on a VW Touareg that originally used the 0831?
→ Yes, in most CP4.2 applications. The 0815 has the reverse-flow damping that is particularly valuable for transient stability, and it is a direct replacement for the 0831 in many applications. Always verify compatibility with the engine's calibration.

Q3: Why does my engine hesitate on tip-out but respond normally on tip-in?
→ This is a classic symptom of lost reverse-flow damping-the reverse flow disturbs the armature, and the valve does not recover quickly. The 0815 is designed to prevent this by attenuating the reverse-flow transients.

Q4: What is the most common cause of reverse-flow damping loss in this valve?
→ Blockage of the damping restriction-debris or varnish can restrict the flow. The 0815 uses a restriction that is designed to resist blockage, but regular fuel filter changes are the most effective prevention.

Q5: I replaced the valve but the hesitation on tip-out persists-is the valve defective?
→ Check the accelerator pedal sensor-a slow sensor can cause a hesitation that appears to be fuel-related. Also, check the injector response times-slow injectors can cause a hesitation that appears to be from the metering valve.

Q6: Does the reverse-flow damping work with biodiesel blends?
→ Yes. The reverse-flow damping is a hydraulic effect that is based on the chamber volume and the restriction-it works with any fuel that has a similar compressibility. The 0815 is calibrated to work with biodiesel blends up to B20.
