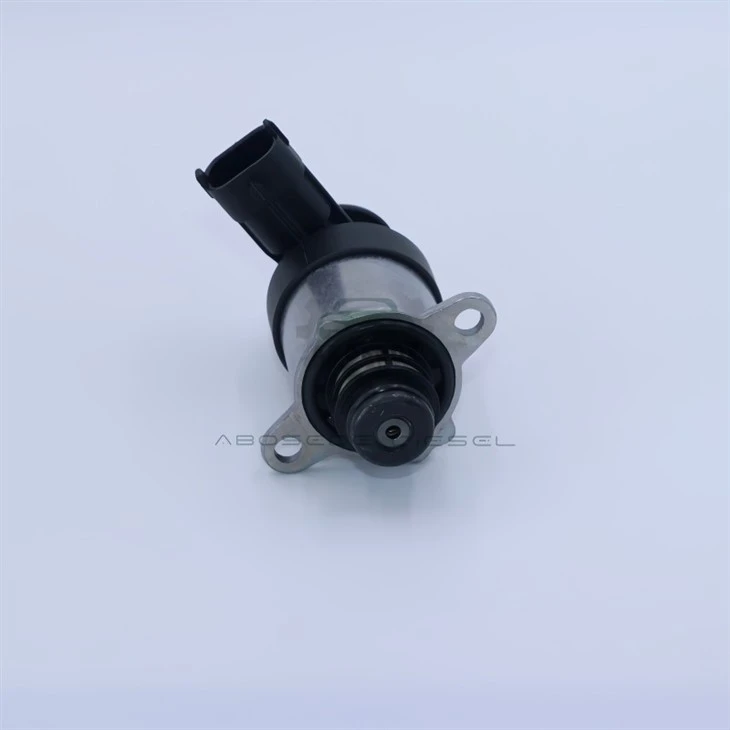

0928400750 Bosch Fuel Metering Valve – Bump-Induced Pressure Fluctuation Recovery & Transient Stability For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

The 0928400508 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. A common complaint from drivers of high-mileage trucks is a subtle but annoying idle surge - the tachometer needle drifting up and down, the engine note changing rhythmically, a faint vibration through the cab floor. This condition often has no fault code. The engine computer is working correctly, but the metering valve is not. At idle, the valve must hold a steady, very small opening to supply the tiny amount of fuel the engine needs. If the spool inside the valve sticks slightly, or if its movement is uneven, the flow of fuel becomes irregular. The rail pressure drifts, the computer corrects, and the cycle repeats - creating a low-frequency oscillation that drivers feel as a surge. The 0928400508 is built to hold this small opening with precision, eliminating the hunt at its source. It fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.The 0928400750 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. Heavy-duty trucks do not operate on perfectly smooth roads. They hit potholes, cross railway tracks, and rumble over expansion joints. Each impact sends a shock through the chassis and into the fuel system. Fuel sloshes in the tank. The lift pump momentarily draws air. Inlet pressure to the high-pressure pump fluctuates sharply. At this instant, the metering valve faces a difficult test. It must hold its commanded position and continue delivering accurate fuel flow while the pressure at its inlet is anything but steady. If the valve cannot manage this transient, rail pressure dips. The driver feels a brief hesitation - a stumble just as the truck hits a bump. The 0928400750 is built with a hydraulically stable spool and an internal damping design that resists these external pressure shocks. It holds steady flow through momentary disruptions, maintaining rail pressure and engine output. This valve fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

The fuel system in a heavy truck is a long chain of components, from the tank to the injectors. Most of it is rigidly mounted. When the vehicle hits a sharp bump, the fuel in the tank slams against the pickup area. Air can mix into the fuel. The lift pump, which relies on a steady supply of liquid fuel, may momentarily draw a mixture of fuel and air bubbles. Its output pressure drops for a fraction of a second. The metering valve, bolted directly to the high-pressure pump, experiences this pressure drop at its inlet. Meanwhile, the engine is still running. The rail is still pressurized. The injectors are still firing. The metering valve must continue to supply the correct fuel volume despite the suddenly reduced inlet pressure. If the valve's spool is sensitive to inlet-side pressure fluctuations - if the changing pressure differential across the metering slots alters the flow rate - rail pressure dips before the engine computer can correct. The injection quantity drops for one or two cycles. The driver feels a hesitation synchronized with the bump. The 0928400750 minimizes this sensitivity through careful spool geometry that maintains consistent flow across a range of inlet pressure conditions.

Pressure fluctuations at the valve inlet can do more than change flow rate - they can physically move the spool. The spool is held in position by a balance between the magnetic force from the solenoid and the force of the return spring. This balance assumes stable hydraulic forces acting on the spool surfaces. When a sharp pressure spike or dip enters the valve, the pressure forces on the spool change momentarily. A pressure drop on the inlet side can create a net force that tries to close the spool slightly, reducing the metering slot opening. A pressure spike can push it wider. Either way, the flow changes. The 0928400750 resists these transient spool movements through an internal hydraulic damping chamber. This chamber acts like a shock absorber for the spool. Any sudden pressure change must push fluid through a small damping orifice before it can affect the spool position. This slows the spool's response to rapid pressure transients - the very transients that would otherwise cause it to flutter. The spool holds its commanded position, and the fuel flow remains steady. The damping is tuned so that the valve still responds quickly to genuine command changes from the engine computer, but ignores the sharp, short-duration disturbances from road impacts.

The benefit of a hydraulically stable metering valve is most obvious on rough roads. A truck that previously stumbled over bumps or hesitated on washboard surfaces will track smoothly. The engine does not lose power momentarily when the chassis takes a hit. This is not just a comfort issue. In situations where precise throttle control matters - maneuvering a loaded trailer in a tight yard, climbing a steep gravel access road, operating on a construction site - a sudden unexpected loss of power can be dangerous. The 0928400750 provides the predictable, steady fuel delivery that keeps the engine responding to the driver's throttle pedal rather than to the road surface. It also protects the fuel system from the wear that repeated pressure shocks can cause. Each pressure spike that reaches the pump plungers and the rail stresses those components. By damping these disturbances at the metering valve, the 0928400750 reduces the hydraulic noise reaching downstream components.

Road-impact-related fuel delivery problems can be difficult to reproduce in the workshop. The engine runs perfectly on the shop floor. The diagnostic scan tool shows normal values. The problem only appears on the road. If a driver reports a hesitation that occurs specifically when hitting bumps or rough pavement, and the fuel system otherwise checks out, the metering valve's transient stability should be considered. A useful test is to monitor rail pressure with a scan tool while the vehicle is driven over a known rough surface at a steady throttle. A healthy 0928400750 will show minimal pressure fluctuation - the trace stays close to the target. A valve that is sensitive to impacts will show sharp dips or spikes that coincide with suspension movement. This test confirms whether the valve is the source of the complaint.

Q1: How do I confirm that the Bosch 0928400750 is the correct metering valve for my application?
Verify the OE number printed on your existing valve matches 0928400750 or 0 928 400 750. Cross-reference with your vehicle's VIN or consult Bosch's application catalog. The valve is commonly specified for Hyundai, Kia, Renault, Peugeot, Citroën, Ford, and Volvo diesel applications.

Q2: What are the telltale symptoms of a failing 0928400750 metering valve?
Typical indicators include hard starting or no-start conditions, rough or unstable idle, surging during acceleration, noticeable loss of power, and the engine entering limp-home mode with RPM capped around 1,500. Some vehicles may also trigger diagnostic trouble codes such as P0252 or P0002.

Q3: Can a faulty metering valve be cleaned or repaired, or must it be replaced?
The 0928400750 is a precision solenoid valve with tight mechanical clearances and calibrated electromagnetic characteristics. While some mild contamination can occasionally be flushed, internal wear, coil degradation, or seat damage are not field-serviceable. Replacement with a new or OEM-certified unit is the recommended course of action.

Q4: What is the difference between a metering valve (ZME) and a pressure limiting valve in a Bosch common rail system?
The metering valve (ZME) controls the volume of fuel entering the high-pressure pump-it meters inlet flow. The pressure limiting valve, by contrast, is a mechanical safety device that opens to relieve excess pressure from the rail when the system exceeds its designed threshold. They serve complementary but distinct roles: one regulates, the other protects.

Q5: How does the 0928400750 compare to metering valves from other common rail manufacturers like Denso or Delphi?
All three manufacturers employ proportional solenoid metering valves, but they use different acronyms: Bosch refers to them as ZME or MEUN; Denso calls them SCV (Suction Control Valve) or PCV; Delphi designates them as IMV (Inlet Metering Valve). While the underlying physics are similar, valves are not interchangeable across brands due to differences in flow characteristics, electrical parameters, and mechanical interfaces.

Q6: What is the expected service life of the Bosch 0928400750 metering valve, and what factors shorten it?
Service life varies significantly with operating conditions, but the valve is designed to last the life of the high-pressure pump under normal circumstances. Factors that accelerate wear include fuel contamination (particulates or water), poor fuel lubricity, excessive thermal cycling, and operation with degraded fuel filters that allow abrasive particles to reach the valve seat.
