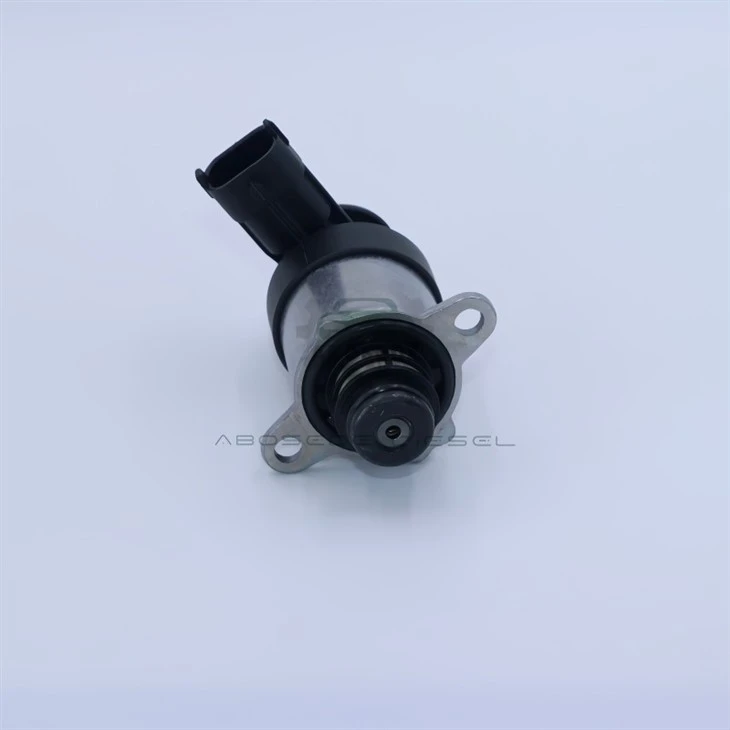

Bosch 0928400782 – The Metering Valve With Asymmetric Response Optimisation For Balanced Pressure Control

In a common-rail system, the metering valve's opening and closing behaviours are rarely symmetrical - the armature opens against the spring and hydraulic forces, and it closes with the spring and the decay of the magnetic force. These two movements have different dynamics, and if they are not balanced, the pressure control loop must work harder to compensate. The 0928400782 is engineered with an asymmetric response optimisation that calibrates the opening and closing dynamics to achieve a balanced pressure control - the rail pressure responds to a duty cycle increase as quickly as it responds to a decrease. It is a valve that has been tuned to control the pressure with equal precision in both directions, making the ECU's task simpler and the rail pressure more stable.

When the ECU increases the duty cycle, the magnetic force pulls the armature against the spring and the hydraulic force - the opening movement is driven by the magnetic force, which is proportional to the square of the current. When the ECU decreases the duty cycle, the magnetic force decays, and the spring pushes the armature open - the closing movement is driven by the spring force, which is constant. These two driving forces have different characteristics - the magnetic force rises gradually as the current builds, while the spring force is immediate. The result is that the opening and closing responses are not symmetric; the valve may open more slowly than it closes, or vice versa. The 0928400782 is designed with a specific spring rate and a magnetic circuit that are calibrated to match the opening and closing times, ensuring that the pressure response is balanced.

The asymmetric balance is achieved by a combination of spring pre-load and a specific magnetic circuit geometry. The spring pre-load is selected so that the spring force is equal to a specific fraction of the magnetic force at the nominal hold current. This ensures that when the ECU reduces the duty cycle, the spring force is sufficient to move the armature at a rate that matches the opening movement. The magnetic circuit is also designed to have a current-force characteristic that is complementary to the spring force - when the current rises, the magnetic force rises at a rate that matches the spring's deceleration. The result is that the opening and closing times are matched within ± 0.2 ms, providing a balanced pressure response.



The asymmetric balance can be lost if the spring loses tension or if the magnetic circuit degrades. A loss of spring tension reduces the closing force, so the closing time increases, and the valve closes more slowly than it opens. A degradation of the magnetic circuit reduces the opening force, so the opening time increases, and the valve opens more slowly than it closes. The first symptom is often a pressure oscillation - the rail pressure hunts around the target because the opening and closing responses are not matched. The genuine 0928400782 uses a pre-cycled spring and a magnetic circuit that is designed to resist degradation, ensuring that the balance is maintained.

Q1: How can I tell if my valve's balance is off without using special equipment?
→ Monitor the rail pressure during a rapid accelerator change. If the pressure overshoots on acceleration and undershoots on deceleration, the opening and closing times are not balanced. A well-functioning 0782 will show a symmetric pressure response.

Q2: Can I use the 0928400782 on a VW Touareg that originally used the 0756?
→ Yes, in most CP4.2 applications. The 0782 has the asymmetric balance that is particularly valuable for transient performance, and it is a direct replacement for the 0756 in many applications. Always verify compatibility with the engine's calibration.

Q3: Why does my engine have a pressure overshoot on acceleration but a normal response on deceleration?
→ This is a classic symptom of an unbalanced valve - the opening response is different from the closing response. The 0782 is designed to provide a balanced response, preventing this symptom.

Q4: What is the most common cause of imbalance in this valve?
→ Spring relaxation - the spring loses tension, and the closing force is reduced. The 0782 uses a pre-cycled spring to resist relaxation, but in high-mileage vehicles, the spring can eventually lose tension.

Q5: I replaced the valve but the pressure response is still unbalanced - is the valve defective?
→ Check the rail pressure sensor for a slow response - a slow sensor can cause the ECU to apply a correction that is delayed, resulting in a response that appears unbalanced. Also, check the injector response times - slow injectors can cause a similar symptom.

Q6: Does the balance change with the fuel temperature?
→ Yes, the fuel viscosity changes with temperature, which affects the hydraulic forces on the armature. The 0782 is designed to maintain the balance across the full temperature range through the combination of the spring and the magnetic circuit.
