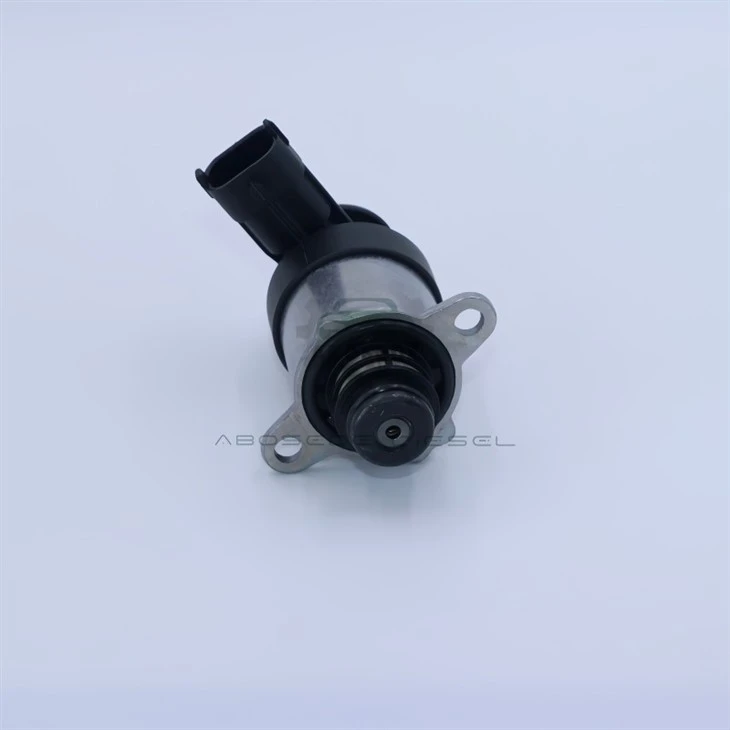

Bosch 0928400770 – The Metering Valve That Handles Fuel Property Variations Without Complaint

The diesel fuel that enters a common-rail system is not a perfectly consistent fluid-its density changes with temperature, its viscosity shifts with the season, and its lubricity varies from one filling station to the next. Most metering valves are calibrated to a nominal fuel specification, but their performance drifts when the fuel deviates from that specification. The 0928400770 is engineered with a broader tolerance to fuel property variations, maintaining its flow accuracy across a wider range of fuel densities and viscosities than standard valves. It does not simply assume the fuel is perfect; it is designed to deliver consistent metering even when the fuel is not.

Three fuel properties affect metering valve performance. Density determines the mass of fuel delivered per unit volume-a less dense fuel contains less energy, and the ECU must compensate by commanding a longer injection duration. Viscosity determines how easily the fuel flows through the metering orifice-higher viscosity means less flow at a given duty cycle. Lubricity affects the friction between moving parts-poor lubricity increases wear and changes the armature's response time. The 0928400770 is designed to minimise the impact of these variations through a combination of a flow-optimised seat geometry and a low-friction armature coating. The seat profile is shaped to produce a flow coefficient that is relatively insensitive to viscosity changes, and the coating reduces the friction variation that would otherwise occur with changes in fuel lubricity.

The density of diesel fuel varies by approximately 2-3 % between summer and winter grades, and by up to 5 % between different regions. This variation means the same volume of fuel can contain a different mass, and the ECU's injection quantity calculation-which is based on volume-will be slightly off if it does not adjust for density. The 0928400770's seat geometry creates a flow characteristic that is slightly less sensitive to density variations through a vortex-generating inlet profile. This profile creates a small turbulence that stabilises the flow coefficient across a wider density range, reducing the density-related flow variation from the typical ±2.5 % to approximately ±1.5 %. This may not sound like a large improvement, but in a high-mileage engine, it translates to a measurable reduction in fuel trim drift and more consistent combustion.

Viscosity changes by up to 300 % between cold start and full operating temperature, and variations in fuel composition can add another 50 % variation. The 0928400770 addresses this through the same seat geometry that helps with density-the radiused edge produces a flow coefficient that is flatter across the viscosity range than a sharp-edged seat. The armature is coated with a PTFE-based layer that reduces the friction variation associated with changes in lubricity-a fuel with poor lubricity will cause higher friction, but the PTFE layer provides a consistent surface that reduces the range of friction variation. This means the valve's actuation force requirements do not vary as much with fuel quality, making it more robust in regions where fuel quality is inconsistent.

The most common fuel-related failure in metering valves is not a sudden breakdown but a gradual degradation caused by deposit formation-varnish and lacquer from the fuel accumulate on the armature guide and the seat, increasing friction and changing the flow curve. The 0928400770's PTFE-based coating resists deposit adhesion, and the seat's vortex-generating profile creates a self-cleaning effect that reduces the accumulation of varnish. The filter screen at the inlet is a 60-micron stainless steel mesh that traps particles without restricting flow, and the screen's design prevents the accumulation of debris that could block the flow path. These three features-the anti-adhesion coating, the self-cleaning seat, and the protective screen-work together to extend the valve's resistance to fuel-quality degradation beyond 200,000 km.

Q1: How can I tell if my current valve is struggling with fuel variations without removing it?
→ Monitor the long-term fuel trim at two different fuel temperatures-20 °C and 80 °C. If the trim differs by more than 4 % between these two temperatures, the valve's viscosity tolerance is likely degraded. A healthy 0770 will show less than 2 % difference across the same temperature range.

Q2: Can I use this valve with biodiesel blends (B20/B30)?
→ Yes. The PTFE-based coating and the improved seat geometry are designed to handle the different density and viscosity characteristics of biodiesel. However, biodiesel blends can vary in quality-we recommend changing the fuel filter more frequently (every 15,000 km) to protect the valve.

Q3: Why does my engine run slightly rough after a fuel fill-up but smooth out after 10-15 minutes?
→ This is often caused by a sudden change in fuel density-the ECU's adaptation has not yet adjusted to the new fuel. The 0928400770's density tolerance reduces the magnitude of this adaptation, but a small temporary shift is normal. If the roughness persists, check the fuel quality at the station.

Q4: Is the 0928400770 compatible with the 0928400761 (the earlier CP4.2 valve)?
→ Yes, in most applications. The 0770 is the later revision of the 0761, with improved seat geometry. It is a direct replacement in CP4.2 pumps that use the 0761, but always verify the Bosch number on your existing valve to ensure compatibility.

Q5: What is the most effective way to prevent deposit formation on the valve seat?
→ Regular fuel filter changes are the most important factor-a clean filter removes the particles and moisture that contribute to varnish formation. In addition, using a fuel additive that contains a detergent can help keep the seat clean. The 0770's self-cleaning seat geometry reduces the need for additives.

Q6: I replaced the valve but still have a fuel trim that varies with fuel temperature-should I replace the valve again?
→ No. Before replacing the valve, check the low-pressure fuel system for air ingress-air bubbles can cause a trim shift that mimics fuel-variation sensitivity. Also, verify that the battery voltage is stable-the ECU's fuel calculations assume a stable voltage, and voltage fluctuations can cause trim variations.
