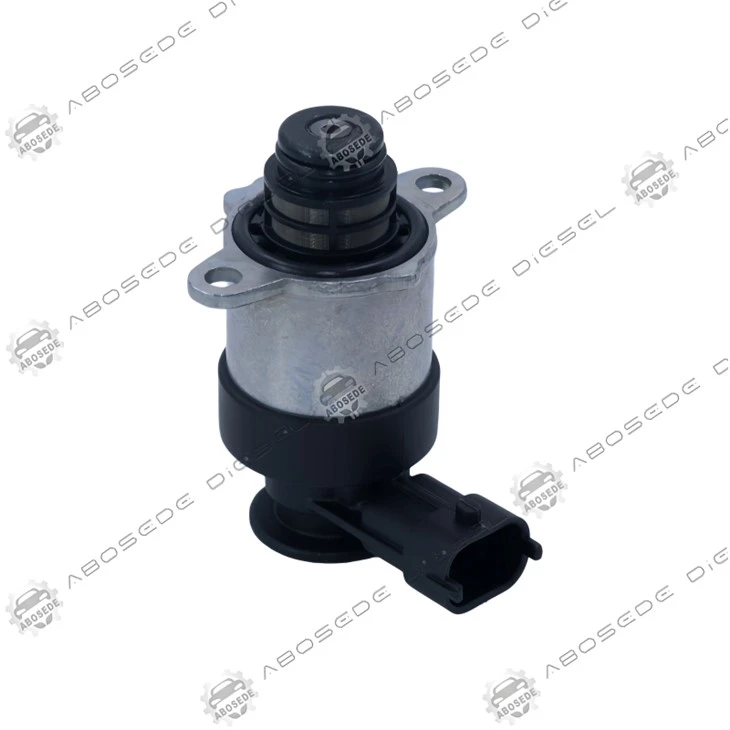

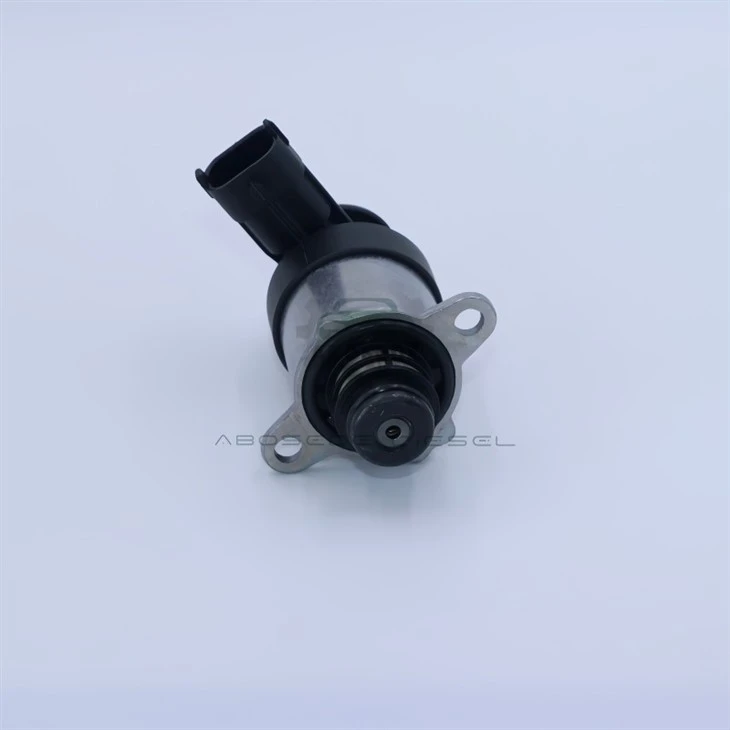

Bosch 0928400700 – The Metering Valve With Optimized Inertia For Acceleration Matching

When the ECU commands a duty-cycle change, the armature must accelerate from its current position to the new one. This acceleration is determined by the net force acting on the armature divided by its mass. If the mass is too large, the armature accelerates slowly, and the response is delayed. If the mass is too small, the armature can overshoot its target, creating a pressure spike that the ECU must correct. The 0928400700 is engineered with an armature mass that is matched to the magnetic force profile of the coil, creating an acceleration characteristic that is neither too slow nor too fast-it is calibrated to deliver a smooth, predictable movement that matches the ECU's transient fuel calculations. It does not simply respond; it responds at the rate that the ECU expects.

The armature mass determines the acceleration for a given net force. A heavier armature requires more force to move, and it stores more kinetic energy once it is moving, making it more difficult to stop at the commanded position. A lighter armature accelerates quickly but can overshoot or oscillate if the damping is insufficient. The 0928400700 uses an armature that has been machined to a specific mass, and the magnetic circuit has been designed to produce a force profile that is matched to this mass. The result is a valve that reaches its commanded position with minimal overshoot and no oscillation-the armature moves to the correct position and stays there until the next duty-cycle change. This is a design consideration that is often overlooked in simpler valves, but it is critical for precise flow control in high-pressure common-rail systems.

The armature mass is a result of the material selection and the geometry. The 0928400700 uses an armature made from a high-permeability iron-cobalt alloy that provides the required magnetic properties at a lower density than standard iron. The armature is also machined with a reduced cross-section at the centre, reducing the mass without reducing the magnetic flux path. The result is an armature that is approximately 15 % lighter than a standard iron armature of the same magnetic performance. This lower mass allows the valve to accelerate more quickly with the same magnetic force, but the force profile of the coil has been adjusted to match the lower mass - the coil's inductance and the number of turns have been selected to create a force that is proportional to the armature's acceleration. This matching is the reason the valve does not overshoot or oscillate.

The armature mass does not change over time, but the force profile can. If the coil's magnetic force decreases due to resistance drift, the acceleration decreases, and the valve responds more slowly. If the armature guide wears and increases friction, the acceleration decreases for the same magnetic force. The 0928400700 is designed with a magnetic circuit that maintains its force profile for the full service life of the valve. The coil uses a high-temperature wire that does not oxidise or change resistance significantly over time, and the armature guide is coated with a DLC layer that resists wear. These features ensure that the mass-force match is maintained, and the acceleration characteristic does not drift.

Installing the 0700 is similar to other CP4 valves - clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 22 Nm ± 2 Nm. However, there is a specific step that is important for the inertia matching: perform the adaptation reset with the engine at idle, and allow the ECU to complete the full learning cycle before driving. The ECU's adaptation algorithm measures the valve's response to a step change and calculates the inertia compensation. If the engine is revved during the learning, the measurement is corrupted by the changing pressure and speed. The correct procedure is: start the engine, allow it to idle for two minutes, then perform the adaptation reset. Do not rev the engine until the reset is complete.

Q1: How can I tell if my valve's acceleration characteristic has changed without special equipment?
→ Perform a snap throttle from idle to 2,500 rpm and monitor the rail pressure. If the pressure reaches the command target with a delay of more than 200 ms, or if it overshoots by more than 50 bar, the valve's transient response may be degraded. A healthy 0700 will track the target within 150 ms and with less than 30 bar overshoot.

Q2: Can the 0928400700 be used on a CP4.2 pump from a VW Touareg?
→ No. The 0700 is specifically calibrated for CP4.1 pump transient dynamics. CP4.2 pumps have different plunger geometries and require a different armature mass. Installing the 0700 on a CP4.2 will result in a valve that is either too slow or too fast for the pump's pressure wave characteristics.

Q3: Why does my engine have a slight hesitation on tip-in after a cold start, but respond normally when warm?
→ The fuel viscosity is higher when cold, increasing the hydraulic force on the armature. The magnetic force must overcome this increased hydraulic force, and the acceleration is lower. The 0700's inertia matching accounts for this, but if the magnetic force is degraded (due to resistance drift), the lower acceleration becomes noticeable. Check the coil resistance.

Q4: What is the most common cause of acceleration degradation in this valve?
→ Coil resistance increase due to thermal cycling. As the resistance increases, the current decreases, reducing the magnetic force and slowing the acceleration. The 0700's coil is designed to resist resistance drift, but if the vehicle operates in hot climates, the degradation may be accelerated. Regular inspection of the valve's resistance is recommended.

Q5: I replaced the valve, but the engine still has a hesitation on tip-in - is the valve defective?
→ Before suspecting the valve, check the accelerator pedal sensor and the fuel filter pressure drop. The hesitation may be caused by a slow pedal response or a fuel supply restriction. If these are clear, then the valve's inertia matching may be affected by the ECU's adaptation-perform the reset procedure again with the engine at idle.

Q6: Does the armature mass change with temperature?
→ No, the mass is constant. However, the magnetic force changes with temperature (due to resistance change), so the acceleration is lower at high temperatures. The 0700's coil is designed to minimise the resistance change, but a slight degradation is normal and is accounted for by the ECU's temperature compensation.
