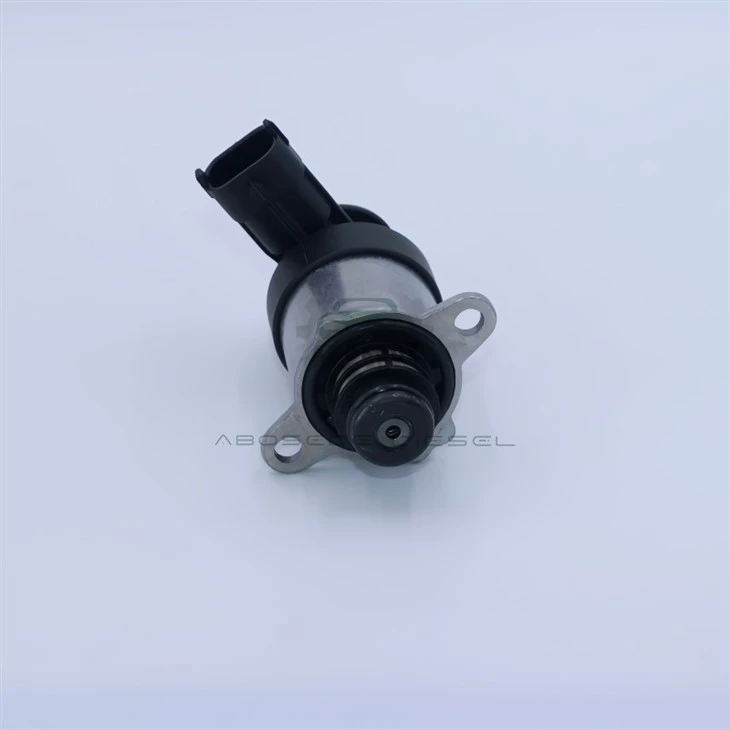

Bosch 0928400741 – The Metering Valve With Matched Dynamic Gain For Consistent Pump Response

In a common-rail system, the high-pressure pump does not run at a fixed speed - it accelerates and decelerates with the engine, and the time available for the plunger to fill changes with each revolution. The metering valve's flow gain - the change in flow for a given change in duty cycle - must be matched to the pump's speed-dependent filling time to maintain a consistent rail pressure response. If the gain is too high at low pump speeds, the rail pressure overshoots; if it is too low at high pump speeds, the pressure lags. The 0928400741 is engineered with a dynamic gain characteristic that is inversely proportional to the pump speed - the gain is higher at low speed and lower at high speed, matching the pump's filling time variation. This speed-compensated gain ensures that the rail pressure response is consistent across the full engine speed range, regardless of the pump's rotational speed.

The metering valve controls the fuel flow into the pump plungers. At low engine speeds, the plungers have a relatively long time to fill - the pump rotates slowly, and the valve can deliver the required flow with a small opening. At high engine speeds, the plungers have less time to fill - the pump rotates quickly, and the valve must open wider to deliver the same flow. If the valve's flow gain is constant, the same duty cycle change will produce a smaller flow change at high speed than at low speed (because the plungers have less time to fill), causing the pressure to lag. The 0928400741 is designed so that its flow gain increases with the pump speed, compensating for the reduced filling time. This speed-dependent gain ensures that the pressure response is consistent, regardless of the engine speed.

The speed-compensated gain is achieved through a combination of spool port sizing and a specific damping characteristic. The spool has a series of ports that are positioned so that the effective flow area increases with the spool speed - at high pump speeds, the pressure drop across the ports is higher, which helps to fill the plungers faster. The damping chamber is sized to provide a frequency-dependent response - at low frequencies (corresponding to low pump speeds), the spool moves with a certain gain; at high frequencies, the spool's effective gain is higher. This is achieved by the interaction of the pilot orifice and the damping chamber - the same combination that provides dynamic stability also provides the speed-dependent gain. The 0741's gain curve is calibrated so that the rail pressure response is consistent across the engine speed range.

The speed compensation relies on the precise interaction of the spool ports and the damping chamber. If the ports become worn or the damping chamber is contaminated, the speed-dependent gain is altered. The first symptom is often a pressure lag at high rpm - the rail pressure does not rise as quickly as it should because the gain is not increasing with speed. The genuine 0928400741 uses hardened spool ports and a damping chamber that is designed to resist contamination, ensuring that the speed-compensated gain is maintained over the valve's service life.

Installing the 0741 is similar to other CP4 valves - clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 23 Nm ± 2 Nm. However, there is a specific verification step: perform a speed sweep test after installation. With the engine running, gradually increase the engine speed from idle to rated speed while monitoring the rail pressure response. The pressure should remain stable, with no significant lag or overshoot as the speed changes. If the pressure lags at high speed, the speed compensation may be compromised. The test is a simple functional check that can be performed with a diagnostic tool.

Q1: How can I tell if my valve's speed compensation is compromised without removing it?
→ Perform a sweep from idle to 3,000 rpm and monitor the rail pressure and the metering valve duty cycle. If the duty cycle has to increase significantly at high rpm to maintain the pressure, the gain may be too low - a well-functioning 0741 will maintain the pressure with a stable duty cycle.

Q2: Can I use the 0928400741 on a BMW that originally used the 0806?
→ Yes, in most CP4.2 applications. The 0741 has the speed-compensated gain that is particularly valuable for transient performance, and it is a direct replacement for the 0806 in many applications. Always verify compatibility with the engine's calibration.

Q3: Why does my engine have a pressure lag at high rpm but stable pressure at low rpm?
→ This is a classic symptom of a valve without speed-compensated gain - the gain is not increasing with speed, so the plungers do not fill completely at high rpm. The 0741 is designed to prevent this.

Q4: What is the most common cause of speed compensation loss in this valve?
→ Wear on the spool ports - the flow area changes with the wear, altering the speed-dependent characteristic. The 0741 uses hardened ports to resist this wear, but if the fuel contains abrasive particles, the wear can be accelerated. Regular fuel filter changes are the most effective prevention.

Q5: I replaced the valve but the pressure still lags at high rpm - is the valve defective?
→ Check the low-pressure supply to the pump - if the inlet pressure drops at high rpm, the plungers cannot fill completely regardless of the valve's performance. Also, check the fuel filter pressure drop - a blocked filter can cause a pressure drop at high flow rates.

Q6: Does the speed compensation work with biodiesel blends?
→ Yes, the speed compensation is based on the hydraulic characteristics of the valve, not the fuel type. However, biodiesel has a different viscosity and compressibility, which can affect the response. The 0741 is designed to work with standard diesel and biodiesel blends up to B20.
