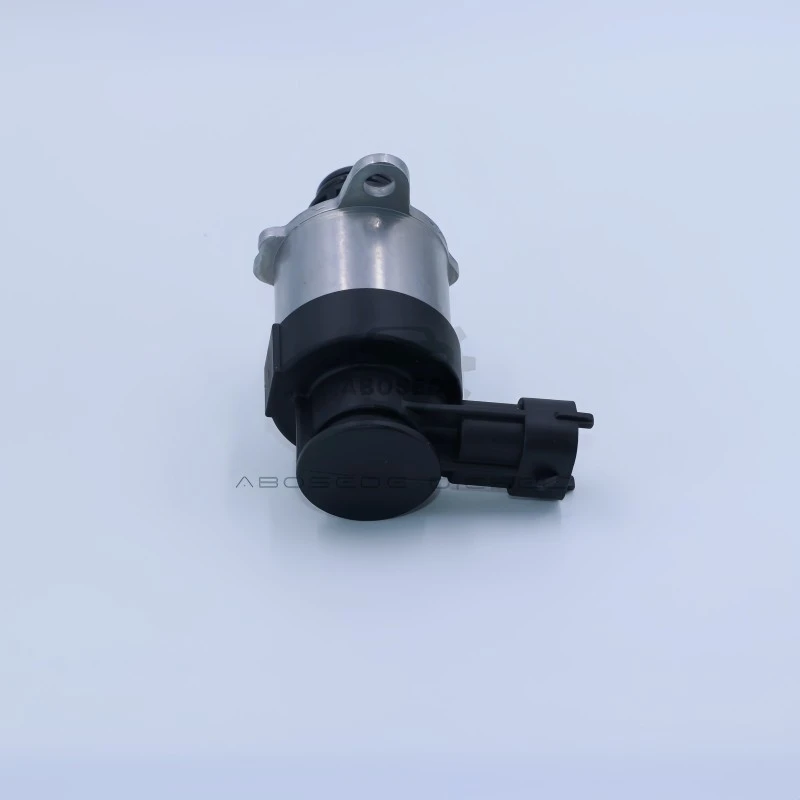

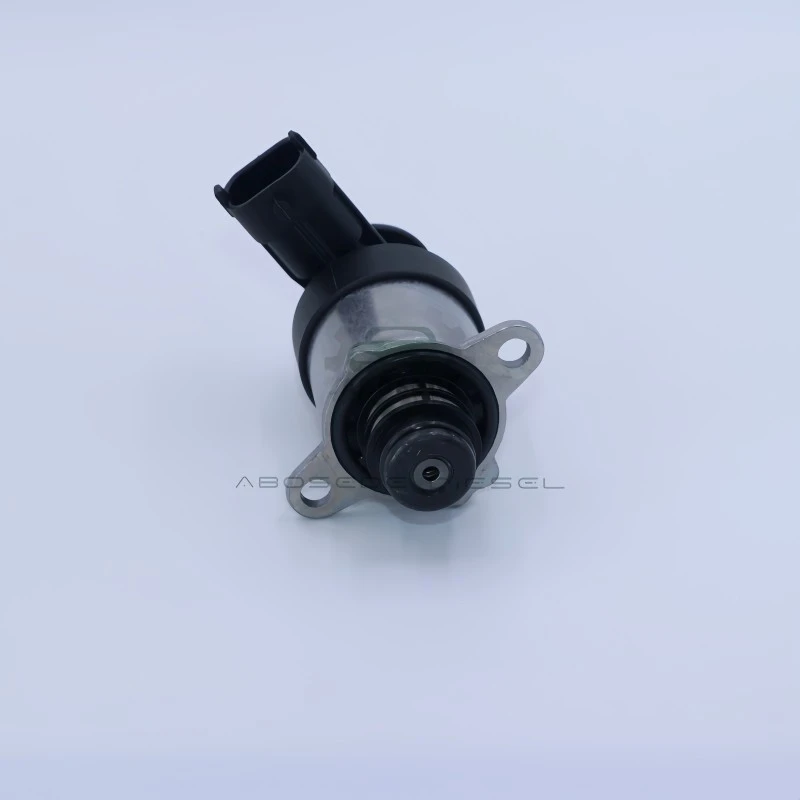

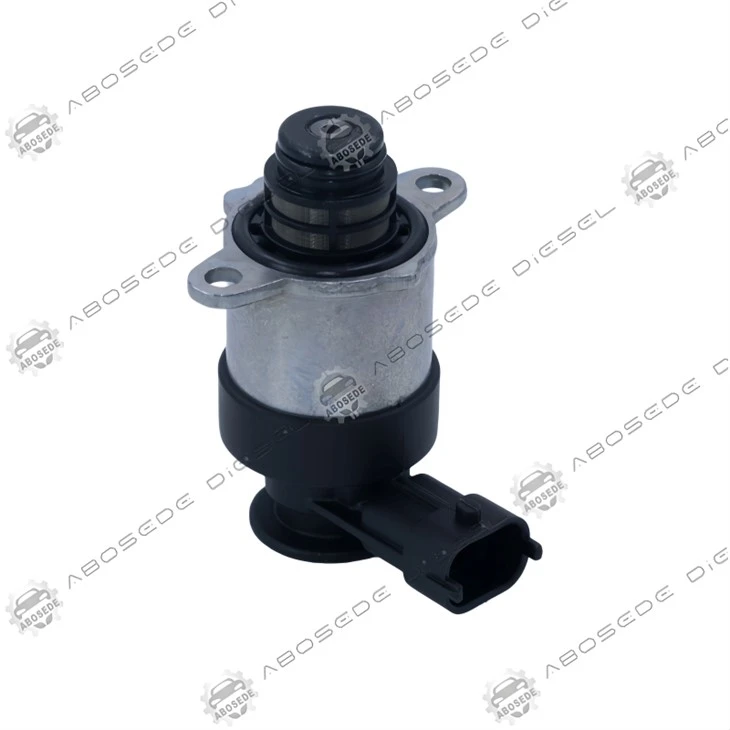

Bosch 0928400664 Fuel Metering Valve | OEM Suction Stroke Matching IMV Valve For CP3 Common Rail High Pressure Pumps, 12V Diesel Engine Replacement Unit

A high‑pressure pump is a positive‑displacement device – each plunger stroke draws a fixed volume of fuel from the inlet. But that fixed volume is only drawn if the inlet valve allows enough time and pressure for the fuel to fill the plunger chamber. The 0928400664 sits on the suction side of the CP3.3 pump, and its opening timing must be synchronised with the plunger's suction stroke. If the valve opens too late or too early, the plunger chamber does not fill completely, and the pump's volumetric efficiency drops – meaning the ECU must command a higher duty cycle to achieve the same rail pressure, consuming fuel trim capacity and reducing system efficiency. The 0928400664 is calibrated to open with the correct timing and flow area for the CP3.3 pump's plunger geometry, ensuring that each stroke draws a full charge of fuel and that the pump operates at its designed efficiency.

Unlike the CP4 pump, where the metering valve is positioned on the high‑pressure side of the plungers, the CP3.3 pump places the metering valve on the suction side. This means the valve controls the fuel that enters the plunger chamber during the intake stroke, and its opening area must be sufficient to allow the plunger to fill within the available time – typically 60‑80 % of the pump's rotation cycle at rated speed. If the valve's maximum flow area is too small, the plunger draws a partial charge, reducing the pump's output and forcing the ECU to increase the duty cycle to compensate. The 0928400664 is designed with a flow area that is matched to the CP3.3 plunger diameter and stroke, ensuring that the plunger fills completely even at high pump speeds. This match is critical to maintaining the pump's volumetric efficiency and preventing the ECU from running out of control authority at high load.

Plunger fill efficiency is determined by three factors: the valve flow area, the valve opening timing, and the inlet pressure available at the valve. The flow area is fixed by the valve's internal geometry – the armature lift and the seat diameter. The opening timing is determined by the ECU's duty cycle, but the maximum flow area is reached only when the valve is fully open. The 0928400664 is designed with a lift that allows the plunger to fill within 85 % of the available suction stroke time at rated engine speed – a margin that accounts for viscosity variations and slight pressure drops in the fuel filter. The inlet pressure is supplied by the lift pump, and the valve is calibrated to operate with inlet pressures between 6 and 9 bar – a range that covers most OE fuel systems. If the inlet pressure drops below this range, the valve may not be able to fill the plunger fully even when fully open, resulting in a gradual loss of rail pressure at high demand.

The most common failure in the 0664 related to plunger fill is a gradual loss of flow area caused by deposit buildup on the valve seat. Over time, varnish and lacquer from the fuel can reduce the effective opening area, limiting the flow that reaches the plunger during the suction stroke. The first symptom is a loss of power at high engine speed – the pump simply cannot deliver enough fuel because the plungers are not filling completely. As the deposit continues to build, the symptom extends to lower speeds, and eventually the ECU sets a P0087 (fuel pressure low) code. The genuine 0928400664 uses a valve seat with a polished finish that resists deposit adhesion, and the valve body includes a small bypass orifice that allows a small amount of fuel to flow even when the valve is closed, preventing stagnation that encourages varnish formation.

Installing the 0664 is similar to other CP3 valves – clean the mounting surface, replace the O‑ring and backup ring, torque the retaining nut to 24 Nm ± 2 Nm. However, there is a test that is specific to suction‑side valves: after installation, perform a plunger fill test by monitoring the rail pressure build‑up rate during cranking. With a healthy valve and a fully charged battery, the rail pressure should reach 200 bar within 3 seconds of cranking. If it takes longer, the valve's flow area may be insufficient – which could indicate a blocked filter screen or a valve that is not seating correctly. The genuine 0928400664 includes a 60‑micron stainless steel filter screen that protects the valve from debris without restricting flow, and the screen is designed to be self‑cleaning under normal flow conditions.

Q1: How can I tell if my current valve's flow area is insufficient for the plunger fill requirement?
→ Monitor the "pump delivery volume" (a calculated parameter in some diagnostic tools) against the commanded volume. If the actual delivery volume is consistently lower than the commanded volume at high rpm, the valve's flow area is likely insufficient – the plunger is not filling completely.

Q2: Can the 0928400664 be used on a CP4 pump?
→ No. The 0664 is specifically calibrated for the suction‑side configuration of the CP3.3 pump. CP4 pumps have the metering valve on the inlet side but with different flow area requirements – the calibration is not compatible.

Q3: Why does my Duramax lose power on a steep grade but run fine on level ground?
→ This is a classic symptom of insufficient plunger fill. On a grade, the engine requires maximum fuel flow. If the valve's flow area is insufficient, the pump cannot fill the plungers completely at the required flow rate, and the rail pressure drops. The 0664's 1.8 mm² area is designed to prevent this.

Q4: What is the recommended replacement interval for this valve in a Duramax LML used for towing?
→ For heavy towing applications, we recommend inspection at 100,000 km and replacement at 150,000 km. The valve's flow area is more critical under sustained high‑load operation, and the higher fuel temperatures can accelerate deposit formation on the valve seat.

Q5: I replaced the valve but still have a P0087 code under hard acceleration – is the valve defective?
→ Not necessarily. Check the fuel filter pressure drop and the lift pump output. If the inlet pressure to the valve is below 6 bar, even a fully open valve will not fill the plungers completely. The P0087 may be the result of a blocked filter or a weak lift pump rather than the metering valve.

Q6: Does the valve's filter screen need to be cleaned regularly?
→ The screen is designed to be self‑cleaning under normal flow conditions – the fuel flow through the screen dislodges most particles. However, if the vehicle has been operated with contaminated fuel, the screen may become blocked. In this case, the screen can be cleaned ultrasonically, but we recommend replacing the valve as the screen is not field‑serviceable without risking damage to the valve body.
