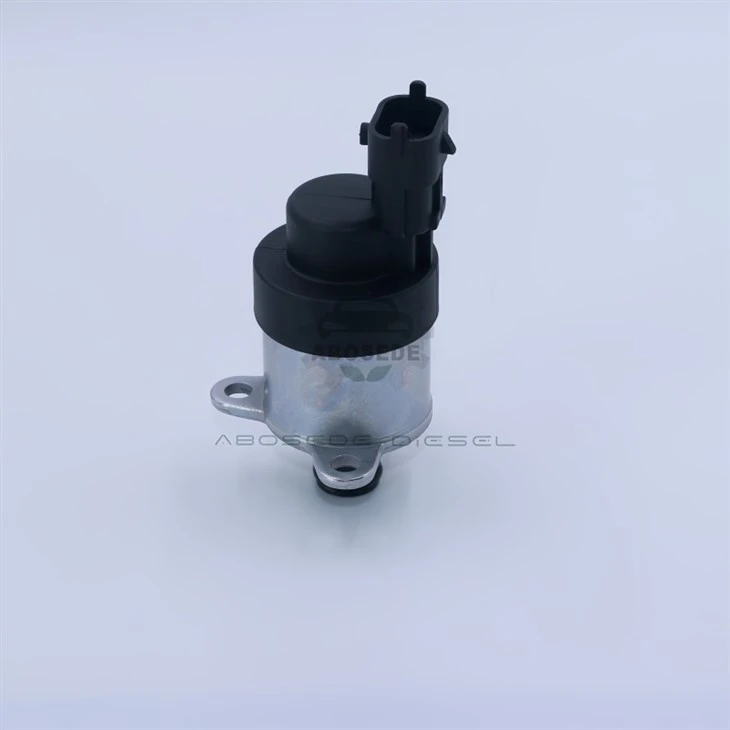

Bosch 0928400664 Metering Valve: Predictability Inside the Rail-Pressure Closed Loop
video
Bosch 0928400664 Metering Valve: Predictability Inside the Rail-Pressure Closed Loop

Bosch 0928400664 Metering Valve: Predictability Inside the Rail-Pressure Closed Loop

1. Product:0928400664
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction



A metering valve is not an independent flow controller-it is the actuator inside the ECU's rail-pressure closed loop. The pressure sensor provides feedback, the ECU computes duty cycle, and the 0928400664 converts that command into fuel flow. What matters for driveability is not peak flow capacity, but whether the valve's current-to-flow response is predictable enough for the loop to stay stable across temperature, wear, and contamination. That predictability is the specification buyers should evaluate.



📉 Current-to-Flow Transfer Function: Dead Zone, Linear Band, Saturation



Region Command range Valve behavior Consequence if mismatched
Dead zone Low duty cycle Armature below breakaway force No flow response; ECU integral term winds up
Linear band Mid duty cycle Flow proportional to command Main control region; hysteresis matters most here
Saturation High duty cycle Flow plateaus at max delivery Loop loses authority; pressure droop under load

⚠️ A valve with a wide dead zone forces the ECU to carry a larger integral term, which shows up as pressure overshoot after a load step. A valve with early saturation cannot hold pressure at high demand-both are transfer-function problems, not flow-capacity problems.



🔄 Hysteresis: The Parameter That Decides Loop Stability



Hysteresis is the difference in flow between increasing and decreasing command at the same duty cycle. It comes from armature guide friction, seal stiction, and magnetic remanence. In a closed loop:

Low hysteresis → ECU can use tighter proportional gain → faster pressure correction

High hysteresis → ECU must detune → slower response, visible as pressure lag during acceleration

🔎 Two valves can have identical full-flow numbers and different hysteresis. A supplier who quotes only max flow has not described the control-relevant behavior.



🧪 Contamination Tolerance: Where the Transfer Function Drifts



Contaminant path What it affects Observable drift
Particulate at damping orifice Damping force increases Slower ramp, wider dead zone
Varnish on armature guide Friction increases Higher hysteresis
Seat contamination Closed-position leakage Rail pressure bleed-down after shutdown
Seal hardening Internal bypass Reduced authority at high duty

✅ Fuel filtration at 4 μm absolute or better is the practical defense. A valve that meets specification on a clean bench can drift out of the loop's tolerance band within thousands of kilometres if filtration is inadequate.



📊 Failure Is Gradual: Drift, Not Sudden Death



Metering valves rarely fail open or closed without warning. They drift:

Early stage-slightly longer crank, minor pressure lag during tip-in

Mid stage-ECU adaptation values shift; fuel trim moves; fuel temperature rises

Late stage-pressure deviation fault codes, limp mode, or hard start

💰 Replacing a valve at mid-stage drift is cheaper than chasing injector or pump faults caused by a loop that cannot hold pressure.



❓ FAQ



Q1: How do I know whether my 0928400664 valve has drifted out of the loop's tolerance band?
A: Log rail pressure vs desired pressure during a load step and during cold crank. Growing pressure lag, wider dead zone, or increased fuel temperature at steady load all indicate transfer-function drift before a fault code appears.

Q2: Can I substitute 0928400664 for 0928400560 without recalibration?
A: Only with an OEM cross-reference document and confirmation that the ECU calibration accepts the valve's transfer function. They share a family but differ in spring rate and damping, which changes loop behavior.

Q3: What causes hysteresis to increase in service?
A: Armature guide friction from varnish, seal stiction, and magnetic remanence. Poor fuel filtration accelerates varnish formation and is the most common controllable cause.

Q4: Why does rail pressure bleed down after shutdown?
A: Seat contamination or seal hardening prevents full closure. This is a leakage fault, not a flow-capacity fault-check the seat and seal before replacing the valve.

Q5: What batch data should a distributor request for CP3 metering valves?
A: Current-to-flow curve, hysteresis at mid-band, dead-zone width, saturation point, and coil resistance. A single max-flow figure does not describe control behavior.

Q6: What warranty terms matter most for metering valve buyers?
A: DOA window, response/leakage failure coverage, and clarity on whether a single valve can be claimed without returning the full set. Transfer-function data and batch traceability matter more than warranty length.
