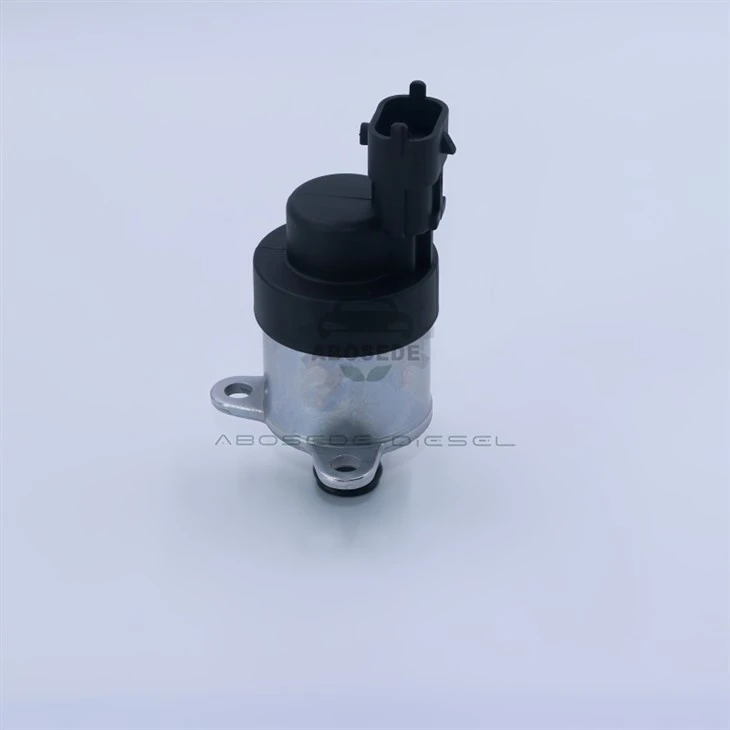

0928400481 Bosch Fuel Metering Valve – Stable Pump Torque & Timing Gear Protection For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

The 0928400481 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. Its primary job is controlling how much diesel enters the pump. But the way it does this has a direct impact on the engine's timing system - the gears or chain that synchronize the crankshaft, camshaft, and high-pressure pump. The CP3 pump is driven by the timing gear train. Every time a pump plunger compresses fuel, it demands a pulse of torque from the gear drive. If the metering valve delivers fuel unevenly, these torque pulses become irregular. The timing gears, which are designed for smooth, predictable loads, now face sharp, repeating knocks. Over thousands of kilometers, this irregular loading can accelerate wear on gear teeth, stretch timing chains, and fatigue the tensioner. The 0928400481 is calibrated for consistent fuel delivery, which keeps the pump's torque output smooth and protects the timing drive components from excessive stress. This valve fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

The CP3 pump uses three plungers driven by an eccentric ring on the pump shaft. As each plunger rises, it compresses the fuel trapped inside its barrel. The effort required depends on how much fuel the metering valve allowed into that barrel. A full chamber demands high torque; a partially filled chamber demands less. When the metering valve is working correctly, each plunger receives the same fuel mass, and the three torque pulses per pump revolution are even and predictable. The timing gears that drive the pump see a steady, rhythmic load. However, if the metering valve's flow becomes uneven - perhaps due to a sticking spool, a worn bore, or solenoid instability - the fuel mass per stroke varies. One plunger demands more torque, the next demands less. These torque variations travel backward through the pump shaft and into the timing gears as irregular hammer-like pulses. The gear teeth, which are in constant mesh, now experience rapid loading and unloading that they were not designed to handle.

The timing drive system - whether gear-driven or chain-driven - relies on consistent loads to maintain proper alignment and minimize wear. In a gear-driven system, irregular torque causes the gear teeth to alternately slam together and pull apart within their backlash clearance. This hammering can produce pitting on the tooth flanks and, over time, lead to excessive gear rattle or whine. In a chain-driven system, the torque fluctuations cause the chain to whip between the sprockets, stretching the links and wearing the tensioner faster. The tensioner must work harder to take up the slack, cycling its internal mechanism more frequently than intended. If the tensioner reaches its limit, the chain can become loose enough to jump a tooth, causing catastrophic engine damage. Even if no immediate failure occurs, a stretched timing chain or worn gears will alter camshaft timing slightly, reducing engine efficiency and increasing emissions. The 0928400481 helps prevent these problems by maintaining smooth, even fuel delivery to all three pump plungers, eliminating the irregular torque spikes that cause timing component wear.

The key to smooth pump torque is consistent fuel mass per compression stroke. The 0928400481 achieves this through precision manufacturing: its metering spool has a low-friction DLC coating that prevents sticking, its return spring is stress-relieved to maintain consistent preload, and its magnetic circuit is designed for stable force output across the duty cycle range. These features ensure that for a given ECM command, the valve opens to exactly the same position every time, delivering the same flow. When the spool moves smoothly and predictably, the fuel volume per intake stroke is uniform, and the resulting torque pulses from the pump are even. The timing system then operates within its design parameters, extending component life.

Technicians can look for early signs of timing system stress. A rattling noise from the front of the engine that changes with load may indicate gear backlash hammer or chain slap. An inspection of the timing chain tensioner during a major service may reveal excessive extension. If these signs appear alongside a rising hot idle duty cycle on the metering valve (above 30%), the valve may be the root cause. A simple check: monitor the rail pressure actual value at idle with a diagnostic scan tool. A healthy 0928400481 shows a smooth, steady trace. If the pressure trace shows random small spikes or dips, the valve is not delivering smooth flow, and irregular pump torque is likely present. Replacing the valve with the 0928400481 can eliminate the torque irregularity and stop further timing component wear.

Q1: Can a faulty metering valve really cause timing chain stretch?

Yes. The timing chain drives the CP3 pump. If the pump's torque demand fluctuates due to uneven fuel delivery, the chain is subjected to repeated sharp pulls and relaxations. This accelerates chain link wear and can stretch the chain beyond the tensioner's ability to compensate. Replacing a worn metering valve with the 0928400481 can stop this irregular loading and prevent further chain damage.

Q2: My truck has a noticeable rattle from the front of the engine at idle that goes away when I raise the RPM slightly. Could this be pump-related?

Yes. This is a common symptom of timing gear rattle caused by irregular pump torque. At idle, the gear teeth have time to bounce within their backlash clearance between torque pulses. At higher RPM, the pulses are closer together and the rattle often disappears. Check the metering valve's duty cycle and rail pressure stability. If the valve is worn, replacing it may quiet the rattle.

Q3: How can I tell if the noise is from the timing system or from the pump itself?

Use a mechanic's stethoscope or electronic chassis ear. Place the probe on the timing cover near the pump drive gear, then on the pump body. If the noise is loudest at the timing cover, the gear mesh is the source. If it is loudest at the pump, the pump's internal components may be the source. In either case, irregular torque from a worn metering valve can contribute to the noise.

Q4: Does the 0928400481 require any special break-in to reduce timing system stress?

No. The valve's smooth operation is effective immediately. After installation and the ECM fuel trim reset, the valve delivers even flow from the first drive cycle. No special break-in period is required.

Q5: Can regular fuel filter replacement help protect the timing system?

Indirectly, yes. Clean fuel prevents particles from wearing the metering valve's internal surfaces, which helps maintain smooth fuel delivery and even pump torque. Regular filter replacement is part of a comprehensive strategy to protect the entire fuel system and the components it affects.

Q6: If the timing chain is already stretched, will replacing the metering valve fix it?

No. A stretched chain or worn gears are mechanical damage that has already occurred. Replacing the metering valve will prevent further irregular loading, but the damaged timing components must be replaced to restore correct engine timing. The valve replacement addresses the root cause to avoid a repeat failure.
