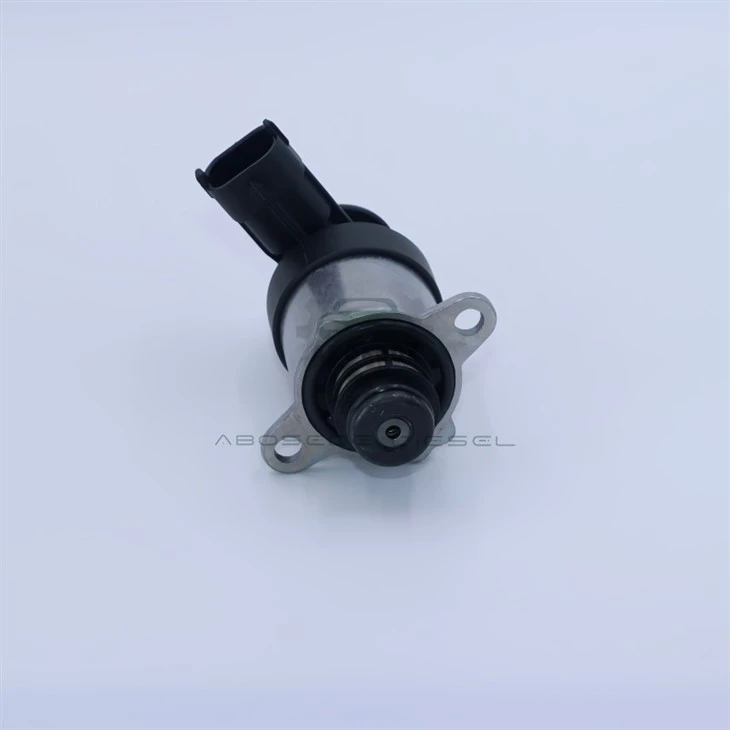

0928400679 Bosch Fuel Metering Valve – OEM Matched Calibration & Factory-Spec Performance Restoration For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

The 0928400679 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. When a truck leaves the factory, every component in the fuel system is calibrated to work together. The engine computer's fuel map is programmed around the specific flow characteristics of the original metering valve - how much fuel flows at 20% duty cycle, at 50%, at 80%. As the valve ages and is eventually replaced, the accuracy of that original match determines how well the engine runs. A valve that does not precisely match the original flow specification forces the engine computer to compensate with larger fuel trim corrections. The engine runs, but it is never quite right - fuel consumption creeps up, throttle response softens, and the computer's diagnostic margins shrink. The 0928400679 is manufactured to the exact flow specification that the engine computer expects. It restores the fuel system to its as-designed calibration, allowing the computer to operate with the small, stable corrections that indicate a healthy, well-matched system. This valve fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

The engine computer's fuel delivery strategy is built on a stored table that links duty cycle percentage to expected fuel flow. At 20% duty cycle, the computer expects a specific flow rate. At 60%, another. These values were determined during engine development using the original equipment metering valve specification. When the valve on the pump delivers exactly what the table expects, the computer's fuel calculations are accurate from the start. It makes only small adjustments for fuel temperature, air density, and engine wear. When a replacement valve has a different flow characteristic - perhaps it flows 8% more at low duty cycles and 5% less at high duty cycles - the computer must learn new correction values across the entire operating range. This learning process takes time. During adaptation, the engine operates with imperfect fuel delivery. Even after adaptation, the corrections are larger than they should be, consuming the computer's adaptive range. The 0928400679 eliminates this problem by matching the original flow specification. When installed and the adaptations are reset, the computer finds that the new valve's flow matches its stored table almost perfectly. Corrections are minimal from the first drive cycle.

Matching the original flow specification is not simply a matter of copying external dimensions. The 0928400679 achieves it through precise control of internal features. The metering spool diameter and the bore diameter are held to tolerances measured in single-digit microns. The metering slot geometry - its width, length, and edge profile - is machined to exact specifications and verified with optical measurement systems. The return spring preload, which sets the spool's zero-flow position, is individually tested and adjusted. The magnetic stator core, which converts electrical current into the force that moves the spool, is manufactured from a specific grade of silicon-iron electrical steel with controlled permeability. Every 0928400679 undergoes a flow calibration test on a Bosch test bench before leaving the factory. The valve is cycled through its full duty cycle range, and the flow at each point is measured and compared to the specification. Valves that do not match are rejected. This process ensures that every 0928400679 entering service delivers the flow characteristic that the engine computer expects.

The driver notices the difference a properly matched valve makes. Throttle response is crisp and predictable - the engine reacts immediately when the accelerator is pressed, without hesitation or surge. Idle is smooth and steady, with no rhythmic hunting or vibration. The engine starts quickly, hot or cold, because the valve delivers the correct starting fuel quantity from the first crank. Fuel consumption settles to the level expected for the engine and duty cycle, without the slow upward creep that indicates the computer is working harder to compensate. For the workshop, a valve that matches the original specification means fewer comebacks. The engine computer adapts quickly after installation, and the stored fuel trim values remain small and stable. When the next service comes around, the technician sees a flat trend line - no unexplained duty cycle drift, no developing fault codes.

A new 0928400679 provides an opportunity to establish a clean diagnostic baseline. After installation and the mandatory ECM fuel trim reset, record the hot idle duty cycle with the engine fully warm and all accessories off. On most engines, this value should fall between 18% and 25%. Record the rail pressure deviation - the difference between actual and target pressure - at steady highway cruise. It should hold within ±3 MPa. These two numbers become the reference for all future diagnostics. If the hot idle duty cycle begins to rise, or the pressure deviation widens, the technician knows the valve is beginning to wear and can plan replacement before fault codes appear. This data-driven approach is only possible when the replacement valve starts from a known, accurate baseline. The 0928400679 provides that baseline.

Q1: Why does my truck not feel quite the same after a metering valve replacement at an independent workshop?

If the replacement valve does not precisely match the original Bosch flow specification, the engine computer must use larger fuel trim corrections to compensate. The engine runs, but throttle response and idle quality may not be as crisp as with the factory valve. The 0928400679 matches the original specification, restoring factory performance.

Q2: Can a valve that fits mechanically still have the wrong calibration?

Yes. Many aftermarket valves share the same mounting flange and electrical connector but differ in internal flow calibration. The engine computer can compensate to a degree, but large differences consume adaptive range and may prevent the engine from ever reaching optimal fuel delivery.

Q3: How can I confirm that the 0928400679 is the correct part for my engine?

Verify the part number against the engine serial number. Bosch parts catalogs specify the correct metering valve for each engine variant. The 0928400679 is manufactured to match the calibration of the engines for which it is specified.

Q4: Will the 0928400679 improve fuel economy on my truck?

If the previous valve was not matched to the original specification, the engine computer was using large fuel trim corrections that can reduce combustion efficiency. Restoring the correct calibration can improve fuel economy, typically by a few percent.

Q5: How long does it take for the engine computer to adapt after installation?

With the 0928400679 matching the original specification, adaptation is rapid. The engine computer detects that the flow characteristic matches its stored table and makes only small adjustments. Stable operation is typically achieved within 50–100 kilometers of driving.

Q6: Is the 0928400679 more expensive than a generic replacement, and is the difference worth it?

The difference in cost reflects the internal precision, materials, and factory calibration that generic valves often lack. The value is realized through accurate fuel delivery, stable ECM operation, reduced diagnostic time, and restored engine performance.
