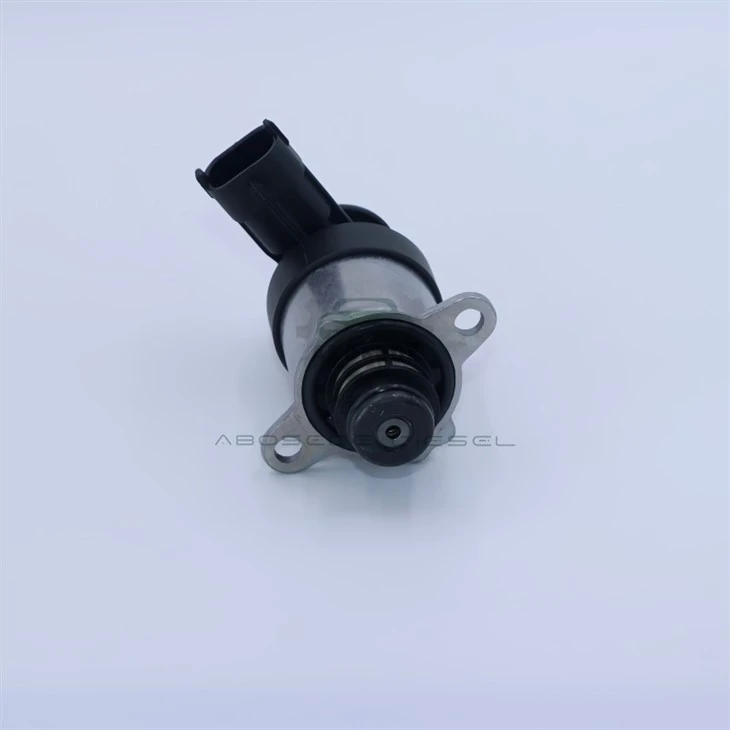

Bosch 0928400709 – The Metering Valve That Manages Pressure Waves, Not Just Flow

In a common‑rail system, steady‑state flow is only half the story. The other half is what happens during tip‑in, tip‑out, and gearshifts – moments when the pump speed changes abruptly and the fuel column inside the supply line experiences sudden acceleration or deceleration. The 0928400709 is engineered with a specific hydraulic damping characteristic that smooths these pressure waves before they reach the high‑pressure plungers. It does not simply meter fuel volume; it shapes the rate of fuel entry so that the rail pressure sensor sees a clean, predictable rise and fall, even under aggressive pedal movements. This transient‑response focus makes this valve particularly suited to modern Euro 5 and Euro 6 engines where rapid torque delivery and emission compliance must coexist.

Every metering valve has an internal armature that moves against a spring, and that movement is governed by the PWM current from the ECU. However, the fuel itself acts as a hydraulic fluid – its compressibility and viscosity change with temperature, and any sudden change in pump rotational speed creates a momentary pressure spike at the valve inlet. If the valve lacks sufficient internal damping, these spikes can push the armature off its intended position, causing a momentary over‑fuel or under‑fuel event that shows up as a dip in rail pressure. The 0928400709 incorporates a calibrated damping orifice in the pilot stage that slows the armature reaction just enough to absorb these inlet disturbances, while still allowing the ECU's current to override the hydraulic force when a change is commanded. This balancing act – fast enough to respond to the ECU, yet slow enough to ignore pump‑induced noise – is what sets this valve apart.

The 0928400709 is a direct replacement for the original metering valve used on Bosch CP1H and CP4.1 high‑pressure pumps, commonly fitted to:

Ford Transit 2.2 TDCi (Euro 4/5) – with Puma engines

Peugeot / Citroën 2.2 HDi (DW12) – in Boxer, Jumper, and some passenger cars

Mazda 6 and CX‑7 with 2.2 MZR‑CD diesel

Land Rover Freelander 2 and Range Rover Evoque with 2.2 SD4

Jaguar XF 2.2 diesel

It cross‑references to Bosch 0 928 400 709, Ford 1751423, and Peugeot 9818073280. Always verify the eight‑digit Bosch number stamped on your existing valve – the 0709 has a specific connector orientation (clocked at 30°) and a different coil resistance compared to the 0679 and 0664 variants.

Aftermarket valves often mimic the external dimensions but compromise on the critical magnetic circuit lamination, spring rate, and plunger‑to‑bore clearance. Genuine Bosch 0928400574 units are calibrated on precision flow benches, ensuring that the duty‑cycle vs. flow curve matches the ECU's internal map within ± 1.5 %. Any deviation here forces the PID controller to apply excessive correction, potentially leading to pressure fluctuations or even a permanent offset that reduces overall system efficiency. For workshops and fleet operators, using OEM‑certified components eliminates the guesswork and preserves the original emissions and performance certifications.

Many aftermarket valves copy the electrical resistance and dimensions but ignore the internal damping orifice size and the coating quality. The genuine 0928400709 has a laser‑calibrated damping hole that is matched to the pump's displacement per revolution. In contrast, generic valves often use a standard orifice that is either too large – causing the armature to flutter under high‑frequency pump pulses – or too small – slowing the response to the point where the ECU detects a lag and sets a P0090 (fuel pressure regulator performance) code. Furthermore, the genuine coil is wound with a copper‑clad aluminium wire that provides better thermal conductivity, keeping the solenoid temperature lower during prolonged high‑duty operation. These differences are not visible on a spec sheet but become apparent during live‑data monitoring of the "actual rail pressure" versus "demand pressure" under transient throttle changes.

Q1: What is the most common symptom of a failing 0928400709?
→ A sharp drop in rail pressure during sudden acceleration – you will see a momentary hesitation, and the live data will show a pressure undershoot of >100 bar that the ECU cannot correct quickly. This is due to the armature sticking and failing to open quickly when demand increases.

Q2: Can I install this valve without resetting the ECU adaptation?
→ You can, but the ECU will carry over the old valve's wear compensation – this may cause a slight over‑fuel on light throttle for the first 50–100 km while it re‑adapts. We always recommend resetting the metering valve adaptation to avoid this transitional period.

Q3: Is the 0928400709 interchangeable with the 0928400679?
→ No. The 0709 has a different armature stroke and a smaller damping orifice. Physically, they may look similar, but the connector pins are clocked differently – the 0709 has a 30° angled connector, while the 0679 is straight. Installing the wrong one will result in persistent rail pressure oscillations and a stored fault code.

Q4: How often should I replace this valve in a delivery van doing stop‑and‑go driving?
→ For city driving with frequent starts and stops, we suggest inspection at 120,000 km and replacement at 160,000 km – the constant thermal cycling accelerates coating wear. For highway fleets, 200,000–250,000 km is a safe window.

Q5: I have a rough idle after replacing the valve – is the valve faulty?
→ Not necessarily. Check the fuel filter and the low‑pressure supply pressure (should be >3.5 bar). If those are fine, then run the "actuator learn" procedure – rough idle often comes from the ECU still applying the old valve's zero‑point offset.

Q6: Can I clean the valve with solvent and reuse it?
→ Ultrasonic cleaning with a mild solvent can remove superficial varnish, but it will not restore the worn DLC coating or the spring pre‑load. We only recommend cleaning as a temporary diagnostic step – permanent solution is replacement with a genuine new unit.
