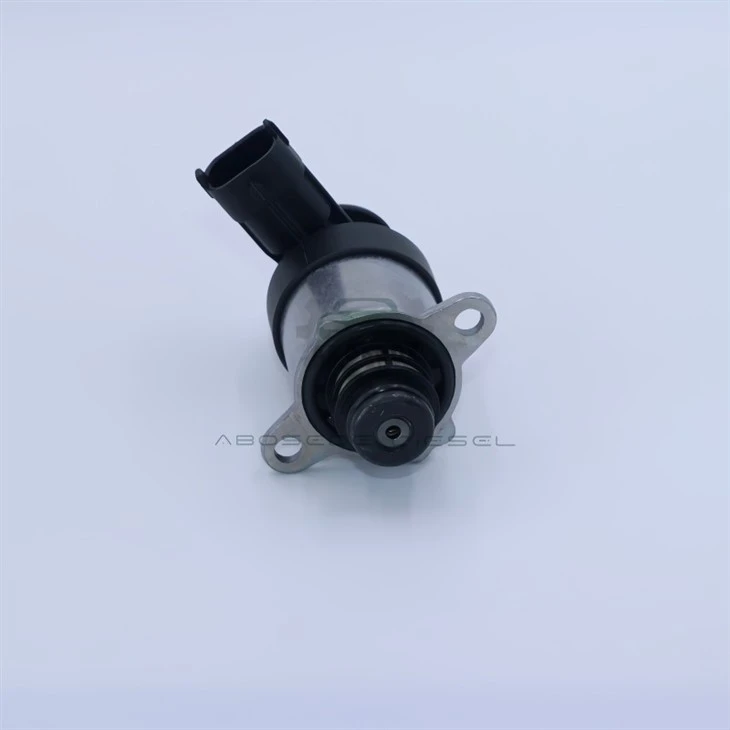

Bosch 0928400629 – The Metering Valve With Compensated Leakage For Stable Idle Control

At idle, a diesel engine requires very little fuel - typically 5-8 mg per cylinder per stroke. At this low flow rate, any leakage in the metering valve becomes a significant portion of the total flow, and a small change in leakage can cause a large percentage change in the delivered fuel. The 0928400629 is engineered with a leakage-compensated design that maintains a consistent idle fuel delivery, even as the valve wears or the fuel temperature changes. It is a valve that understands that idle stability is not about high flow - it is about managing the small flows with precision.

At high load, the metering valve is operating at 60-80 % duty cycle, and the flow through the valve is large compared to any leakage. A 5 % change in leakage changes the total flow by less than 1 %. At idle, the valve is operating at 15-25 % duty cycle, and the flow is small. A 5 % change in leakage can change the total flow by 10-20 %, causing the engine speed to fluctuate. The 0928400629 uses a spool and sleeve combination with a specific leakage path - a controlled clearance that allows a small amount of fuel to bypass the metering edge. This bypass flow is not wasted; it is used to stabilise the idle condition. The clearance is calibrated so that the leakage is consistent across the temperature range, and the ECU's idle control algorithm can compensate for it predictably.

The leakage path is a small clearance between the spool and the sleeve - approximately 5 µm, maintained by precision grinding and honing. This clearance is larger than the clearance used in high-flow valves, because it must allow a small but significant flow at idle. The clearance is also designed to be insensitive to temperature changes - the spool and sleeve are made from materials with similar coefficients of thermal expansion, so the clearance does not change significantly as the valve warms up. At idle, the ECU commands a duty cycle that positions the spool so that the combination of the metered flow and the leakage flow equals the required idle fuel quantity. Because the leakage is predictable, the ECU's idle control is stable.

The leakage compensation relies on the 5 µm clearance remaining consistent. If the clearance increases - due to spool or sleeve wear - the leakage flow increases, and the ECU must adjust the duty cycle to compensate. The first symptom is often a rough idle - the engine speed fluctuates because the ECU is constantly adjusting the duty cycle to maintain the idle speed. If the clearance increases beyond 10 µm, the leakage becomes so large that the valve cannot reduce the flow sufficiently at the minimum duty cycle, and the idle speed increases. The genuine 0928400629 uses a hardened spool and sleeve that resist wear, and the materials are matched for thermal stability, so the clearance remains within the specification for the full service life.

Installing the 0629 is similar to other CP3 valves - clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 24 Nm ± 2 Nm. However, there is a specific verification step: after installation, check the idle speed stability with the air conditioning and all electrical loads on. The leakage compensation is designed to maintain idle stability even with varying loads. Start the engine, allow it to reach operating temperature, and then turn on the air conditioning, headlights, and rear defogger. The idle speed should remain within ± 20 rpm of the target. If the speed fluctuates significantly, the leakage compensation may be compromised - either the valve is not seated correctly, or the spool clearance is not within the specification.

Q1: How can I tell if my valve's leakage compensation is working correctly without removing it?
→ At idle, with the engine warm and all electrical loads off, monitor the engine speed and the metering valve duty cycle. If the duty cycle is stable and the speed is within ± 10 rpm of the target, the leakage compensation is working. If the duty cycle varies by more than 2 % at idle, the leakage may be incorrect.

Q2: Can I use the 0928400629 on a Duramax that originally used the 0656?
→ Yes, in most CP3.2 applications. The 0629 has the leakage compensation that is particularly valuable for idle stability, and it is a direct replacement for the 0656 in many applications. Always verify compatibility with the engine's calibration.

Q3: Why does my engine have a rough idle only when the air conditioning is on?
→ The leakage compensation is designed to handle varying loads, but if the clearance is incorrect, the valve may not respond quickly to the load change. A rough idle with the A/C on is a classic symptom of incorrect leakage compensation - the 0629 is designed to prevent this.

Q4: What is the most common cause of the leakage clearance increasing in this valve?
→ Abrasive wear from particles in the fuel - this is the primary cause of clearance increase. The 0629 uses a hardened spool and sleeve to resist wear, but regular fuel filter changes are still the most effective prevention. The filter should be changed every 20,000 km.

Q5: I replaced the valve but the idle speed still fluctuates - is the valve defective?
→ Before suspecting the valve, check the fuel pressure sensor - a drifting sensor can cause the ECU to adjust the duty cycle incorrectly, leading to an unstable idle. Also, check the injector balance rates - an uneven injector can cause a speed fluctuation that the metering valve cannot correct.

Q6: Does the leakage clearance change with the fuel type?
→ Yes, the leakage flow depends on the fuel viscosity - a lower viscosity fuel (e.g., biodiesel or winter diesel) will leak more at the same clearance. The 0629's clearance is calibrated for standard diesel fuel, and the ECU's adaptation can compensate for small variations. For biodiesel blends above B20, the leakage may be slightly higher, but the ECU will adjust.
