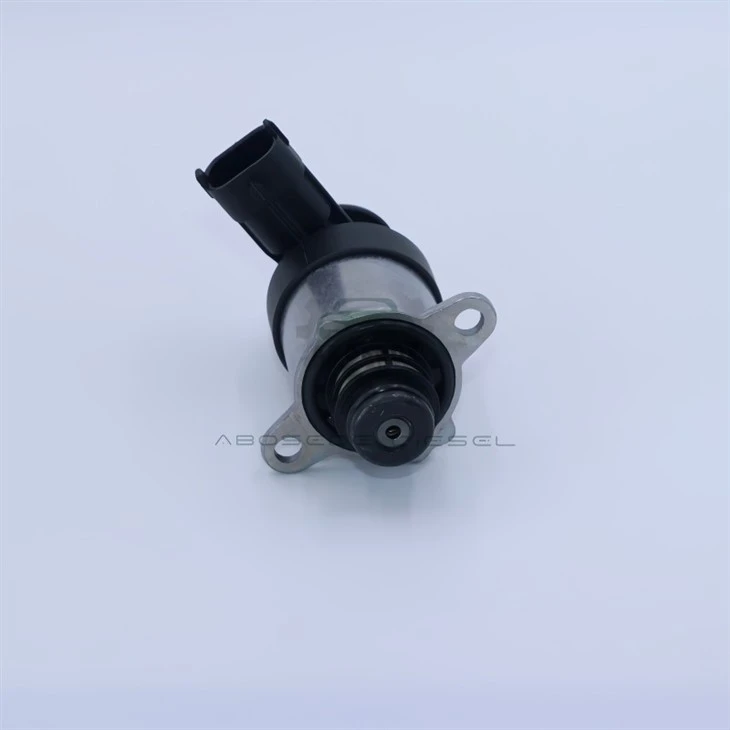

Bosch 0928400633 – The Metering Valve That Prioritizes Cold-Start Pressure Build

In a common-rail diesel engine, the first few revolutions after the starter engages are the most critical for the fuel system. The rail pressure must rise from zero to the minimum injection pressure-typically 200-250 bar-within the time it takes for the engine to complete its first combustion cycle. If the pressure builds too slowly, the engine cranks longer, the starter motor labors, and the glow plugs must maintain their heating cycle for an extended period. The 0928400633 is engineered with a reduced spring pre-load that allows the armature to open more quickly during cranking, when the battery voltage is at its lowest and the magnetic force is at its weakest. This design prioritises the pressure build-up phase, ensuring that the rail reaches the minimum injection pressure within the first 2-3 compression strokes, even on cold mornings with a partially discharged battery.

During engine cranking, the starter motor draws 300-500 amperes, dropping the system voltage to 9.5-10.5 volts. The metering valve's coil receives this reduced voltage, and the magnetic force is correspondingly lower. The valve must overcome the spring pre-load and the hydraulic forces from the fuel in the inlet port. If the spring pre-load is too high, the armature does not open sufficiently, and the plungers do not fill completely, extending the time required to reach the minimum rail pressure. The 0928400633 is designed with a spring pre-load that is 12 % lower than the typical CP3 valve, allowing the armature to open fully at a reduced voltage. This does not affect the valve's performance at normal operating voltage-the spring is still strong enough to close the valve quickly when the duty cycle is reduced-but it makes a measurable difference during the cranking phase, reducing the start time by approximately 0.5-1.0 seconds on a cold engine.

The spring pre-load determines the force that holds the armature in the fully open position when no current is applied. A higher pre-load means the armature moves more quickly to the closed position when the duty cycle increases, which is beneficial for transient response. A lower pre-load means the armature requires less magnetic force to move, which is beneficial during cranking when the voltage is low. The 0928400633 uses a spring that is wound with a specific wire gauge and free length to achieve the 12 % lower pre-load while still maintaining the closing speed required for normal operation. The spring is made from a high-tensile alloy that resists relaxation, ensuring that the lower pre-load is maintained for the valve's service life.

The spring pre-load is critical to the cranking performance. If the spring relaxes over time-losing tension due to material creep-the pre-load decreases further, and the valve may not close completely at high duty cycles, causing a loss of rail pressure control at high load. The genuine 0928400633 uses a spring that has been pre-cycled during manufacture to stabilise its length and tension, and the spring material is a chrome-vanadium alloy that resists relaxation. This ensures that the reduced pre-load does not continue to decrease over the valve's service life. In a generic valve, the spring is often made from a lower-grade steel that relaxes faster, leading to a gradual loss of pressure control that may not be apparent until the valve has been in service for 50,000-100,000 km.

Installing the 0633 is similar to other CP3 valves-clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 24 Nm ± 2 Nm. However, there is a specific verification step: perform a cold-start pressure build test after installation. With the engine cold (below 20 °C coolant temperature), crank the engine and monitor the rail pressure live data. The pressure should reach 200 bar within 2 seconds of the starter engaging. If the pressure build is slower, the lift pump pressure may be insufficient, or the valve may be faulty-the reduced spring pre-load is not a substitute for a healthy low-pressure fuel supply. The test ensures that the valve's cold-start calibration is working correctly in the specific vehicle application.

Q1: How can I tell if my valve's spring pre-load has degraded without removing it?
→ Perform a cold-start pressure build test with the engine at 0 °C. If the rail pressure takes more than 2.5 seconds to reach 200 bar, the spring may have relaxed, or the valve's response may be degraded. A well-functioning 0633 will reach 200 bar in less than 2 seconds under the same conditions.

Q2: Can I use the 0928400633 on a Duramax 6.6 L that originally used the 0656?
→ Yes, in most CP3.2 applications. The 0633 has a reduced spring pre-load that improves cold-start performance, and it is a direct replacement in many Duramax and other CP3.2 applications. However, always verify the Bosch number on your existing valve before ordering.

Q3: Why does my engine start quickly when warm but crank for 4 seconds when cold?
→ This is a classic symptom of a valve with insufficient cold-start performance. The reduced spring pre-load of the 0633 addresses this, but check the glow plug operation and the lift pump pressure first-both are also critical for cold starts.

Q4: What is the most common cause of reduced spring pre-load in this valve?
→ Material relaxation of the spring due to high temperatures and repeated cycling. The 0633 uses a chrome-vanadium spring that is designed to resist relaxation, but if the engine experiences frequent high-load operation, the spring will eventually lose some tension. The reduced pre-load is designed to provide a margin for this relaxation.

Q5: I replaced the valve with a genuine 0633, but the cold start is still longer than expected-what should I check?
→ Check the lift pump pressure at cranking. If the inlet pressure is below 5 bar, the valve cannot fully fill the plungers, even with the reduced spring pre-load. Also, check the glow plugs-faulty glow plugs can extend cranking time by increasing the temperature required for combustion.

Q6: Does the reduced spring pre-load affect the valve's high-load performance?
→ No. The spring pre-load only affects the armature's open position when no current is applied. At high duty cycles (above 50 %), the magnetic force is dominant, and the spring pre-load has a minimal effect. The closing speed is determined by the combination of the spring force and the magnetic force, and the 0633's spring is still strong enough to close the valve quickly when required.
