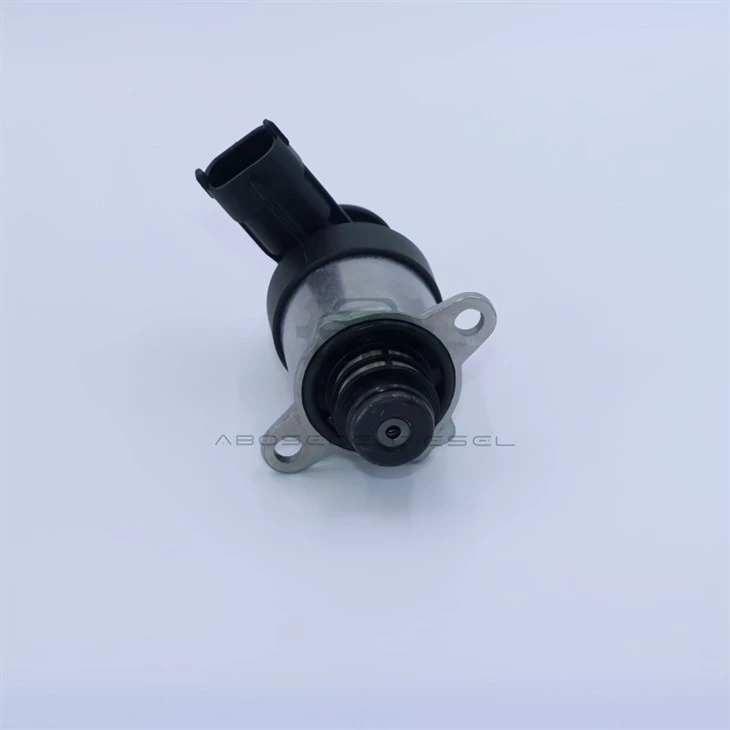

0928400671 Bosch Fuel Metering Valve – Reliable Zero-Flow Shutoff During Engine Braking & Exhaust Protection For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

The 0928400671 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. While most attention goes to how this valve delivers fuel, its behavior during fuel cut-off is just as critical - especially on trucks equipped with engine brakes. When a driver activates the engine brake, the engine computer instantly commands the metering valve to 0% duty cycle, expecting a complete stop of fuel flow into the high-pressure pump. The pump should pump nothing. The injectors should inject nothing. The engine becomes a power-absorbing air compressor that slows the vehicle without using the foundation brakes. But if the metering valve leaks even a tiny amount of fuel past its closed seat, combustion continues at a low level inside the cylinders. This weak combustion fights the braking effect, reduces retarding power, raises exhaust temperatures, and can accelerate wear on the turbocharger and exhaust valves. The 0928400671 is built with a precision-ground seat and a robust return spring that together ensure absolute fuel shutoff the moment the engine computer commands zero flow. This valve fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

An engine brake works by opening the exhaust valves near the top of the compression stroke, releasing the compressed air so that the engine cannot recover the energy it just spent compressing it. This drag slows the vehicle. For this to work effectively, there must be no combustion in the cylinders. Any fuel entering the chambers will ignite from the heat of compression and produce a power pulse that counteracts the braking force. Even a small fuel leak - a few cubic millimeters per stroke - can reduce retarding horsepower by 10–20%. Worse, the partially burned fuel travels into the exhaust manifold, where it can ignite on contact with hot turbocharger surfaces or the oxidation catalyst. This causes exhaust temperature spikes during braking, which stress the turbocharger, crack exhaust manifolds, and confuse the DPF regeneration strategy. The 0928400671 prevents these problems by sealing completely when commanded to zero duty cycle. Its spool-to-seat interface is lapped to a finish that eliminates any measurable internal bypass at normal fuel supply pressure, so no fuel reaches the pump during engine braking events.

Achieving a true zero-flow condition is harder than it sounds. The metering valve must hold back fuel at the lift pump's delivery pressure - typically 4 to 6 bar - while being vibrated by the engine and heat-soaked to over 100°C. The spool must contact its seat with enough force to maintain a hydraulic seal, but not so much force that it deforms the seat over millions of cycles. The 0928400671 uses a chrome-silicon-vanadium return spring with a precisely controlled preload that pushes the spool firmly against a hardened, flat-ground seat. The seat and spool face are lapped as a matched pair to achieve full circumferential contact without relying on soft coatings that can wear or embed debris. A small hydraulic balance feature in the spool design ensures that inlet pressure does not push the spool open when the solenoid is de-energized. This gives the valve a positive sealing margin that remains stable over its entire service life, regardless of temperature or vibration.

A metering valve that does not shut off completely during engine braking causes a chain of problems. First, retarding power drops, forcing the driver to use the service brakes more often. On long downhill grades, this increases the risk of brake fade and can lead to a runaway if the brakes overheat. Second, the small amount of fuel that burns in the cylinders raises exhaust gas temperature during what should be a cooling period for the turbocharger and exhaust valves. Repeated exposure to these temperature cycles accelerates turbocharger bearing coking and exhaust valve seat wear. Third, partially burned fuel entering the diesel oxidation catalyst can cause the catalyst to overheat, melting the substrate or causing it to plug with soot. Finally, the engine computer, which expects no injection during braking, may detect unexpected combustion and misdiagnose it as an injector fault or sensor error, leading to unnecessary parts replacement. The 0928400671's leak-proof shutoff eliminates all of these downstream effects, preserving full engine braking performance and protecting exhaust and aftertreatment components.

A quick diagnostic test can reveal whether the metering valve is leaking during engine braking. With the engine fully warm and a diagnostic scan tool connected, monitor the rail pressure while driving. Activate the engine brake on a downhill grade and observe the rail pressure trace. A properly sealing 0928400671 will show rail pressure decaying rapidly toward zero or a very low residual value as the injectors stop firing. If the rail pressure remains elevated - above 100–150 bar - or fluctuates, fuel is likely leaking past the closed valve and being pumped into the rail. Another indication is exhaust gas temperature during braking: a healthy system with no fuel leak will see EGT drop quickly below 200°C. An EGT that stays above 300°C during sustained braking suggests continuing combustion from a leaking metering valve.

Q1: My truck's engine brake feels weaker than it used to be, and the exhaust temperature gauge shows hotter readings on long downhill runs. Could the metering valve cause this?

Yes. If the metering valve is leaking fuel during engine braking, even a small amount of combustion will reduce braking power and keep exhaust temperatures high. The 0928400671's positive seal restores full retarding power and normal exhaust temperatures.

Q2: Can a leaking metering valve during braking damage the turbocharger?

Yes. Hot combustion gases entering the turbocharger during braking can push turbine inlet temperatures above safe limits, accelerating bearing oil coking and blade fatigue. Fixing the leak protects the turbo.

Q3: How can I test for a leaking metering valve without removing it?

Activate the engine brake on a downhill run while monitoring rail pressure with a scan tool. A healthy valve drops rail pressure to near zero within a few seconds. If pressure stays high or bounces, the valve is leaking.

Q4: Will the 0928400671 improve my truck's service brake life?

Indirectly, yes. By restoring full engine brake performance, the valve reduces reliance on the foundation brakes, extending pad and rotor life.

Q5: Is a leaking metering valve during braking the same as a leaking injector?

No. A leaking injector leaks fuel into the cylinder after the injection event, but a leaking metering valve supplies fuel to the entire pump, which pressurizes the rail and can feed all injectors. The diagnostic signature is different: a leaking injector usually causes a single-cylinder misfire, while a leaking metering valve causes all cylinders to receive unwanted fuel during braking.

Q6: Does the 0928400671 need any adjustment to ensure zero-flow during braking?

No. The zero-flow sealing is a mechanical characteristic set at the factory. No electronic adjustment is needed. The standard ECM fuel trim reset after installation is sufficient.
