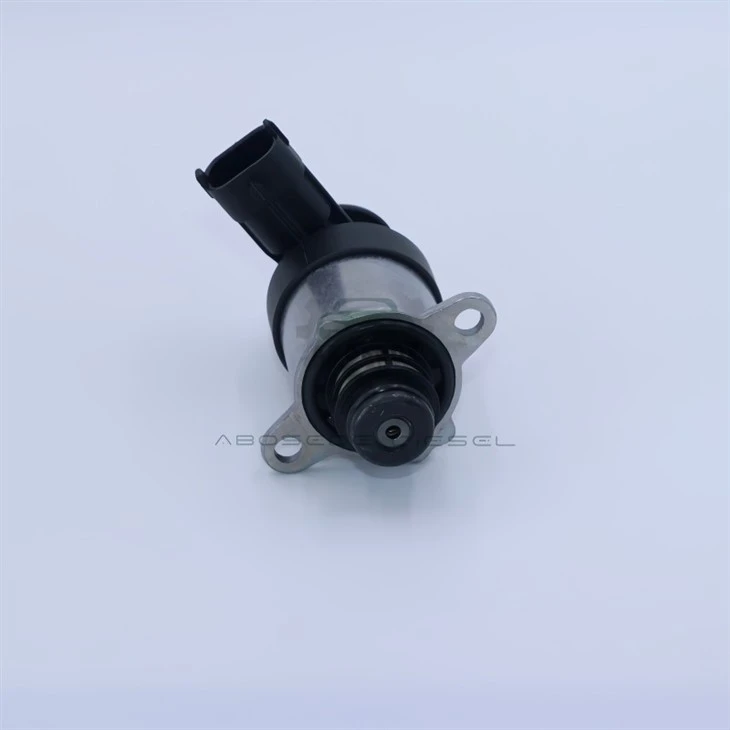

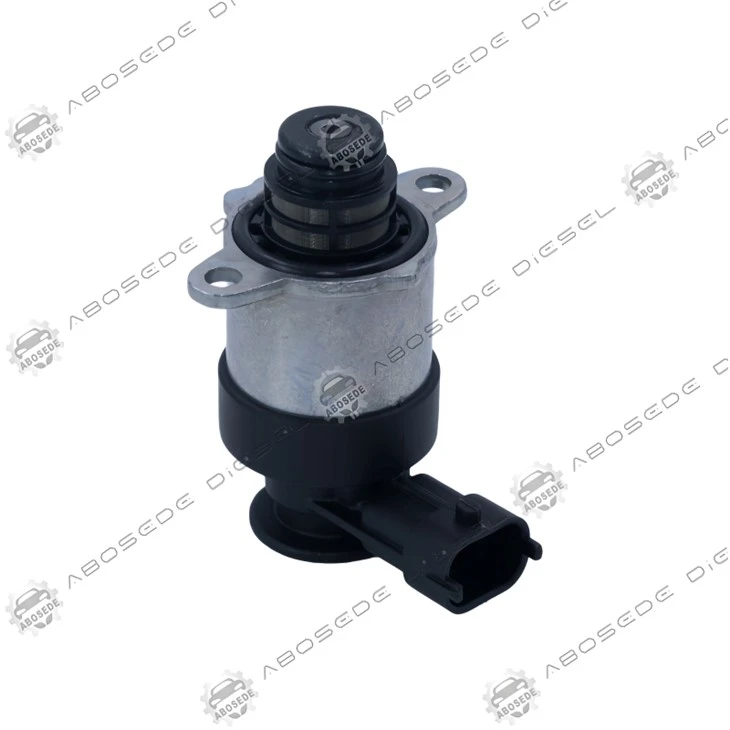

Bosch 0928400574 – The Metering Valve That Maintains Gain Stability Across Inlet Pressure Variations

In a common-rail system, the metering valve's flow gain-the change in flow for a given change in duty cycle-is a critical parameter. The ECU's fuel calculation assumes a specific gain value, and if the gain changes, the calculated fuel quantity is incorrect. The inlet pressure to the valve is not constant-it varies with the lift pump output, the fuel filter condition, and the engine speed. These variations can change the gain, introducing a metering error that the ECU cannot fully compensate. The 0928400574 is engineered with a gain-stabilised design that maintains a consistent flow gain across the full inlet pressure range. It does not simply meter fuel; it meters fuel with a predictable gain, so the ECU's fuel calculation remains accurate regardless of the inlet pressure fluctuations.

The flow gain of a metering valve is the slope of the flow-versus-duty-cycle curve. If the gain is 1.0, a 1 % change in duty cycle changes the flow by 1 %. If the gain changes to 1.05, the same 1 % duty change now changes the flow by 1.05 %, and the ECU's calculation is off by 5 %. The ECU's feedforward calculation-the primary method of fuel control-relies on the gain being constant. The feedback loop can correct the error, but the correction is slower and less precise than the feedforward calculation. The 0928400574 is designed so that the gain does not change significantly with inlet pressure, ensuring that the feedforward calculation remains accurate and the feedback loop is not overworked.

The gain stability is achieved through a combination of spool geometry and port sizing. The spool is machined with a specific control edge that provides a consistent relationship between spool movement and flow area. The inlet ports are sized so that the pressure drop across the ports is small compared to the pressure drop across the metering edge-this ensures that the inlet pressure does not significantly affect the flow. The spool is also guided by a bushing that is machined to a specific clearance-if the clearance is too large, the spool can tilt, changing the effective flow area and the gain. The 0574's spool-to-bushing clearance is maintained at 5 µm, and the spool is coated with a thin wear-resistant layer that preserves the clearance over time.

The most common failure related to gain stability is wear on the spool's control edge. As the edge wears, the effective flow area changes, and the gain changes. The first symptom is often a loss of power at high load-the ECU's calculation is off, and the feedback loop cannot correct the error quickly enough. The genuine 0928400574 uses a spool that is hardened and coated, and the spool-to-bushing clearance is maintained by the wear-resistant coating. If the coating wears through, the clearance increases, and the gain stability is compromised. The only solution is to replace the valve.

Installing the 0574 is similar to other CP3 valves-clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 24 Nm ± 2 Nm. However, there is a specific verification step: verify the inlet pressure to the valve at idle and at rated speed. The gain stability is only effective if the inlet pressure is within the 5-9 bar range. If the pressure is below 5 bar, the valve may not have enough flow area to fill the plungers, and the gain will be different. If the pressure is above 9 bar, the valve may be overpressurised, causing a shift in the gain. Use a pressure gauge connected to the valve inlet port to verify the pressure-if it is outside the specification, address the lift pump or the fuel filter before continuing.

Q1: How can I tell if my valve's gain stability is compromised without removing it?
→ At a steady engine speed and load, monitor the metering valve duty cycle and the rail pressure. If the duty cycle changes significantly (more than 2 %) with a small change in inlet pressure (e.g., when the fuel filter is changed), the gain may be unstable. A well-functioning 0574 will show a stable duty cycle.

Q2: Can I use the 0928400574 on a Duramax that originally used the 0656?
→ Yes, in most CP3.2 applications. The 0574 has the gain stability that is particularly valuable for high-load operation, and it is a direct replacement for the 0656 in many applications. Always verify compatibility with the engine's calibration.

Q3: Why does my engine lose power at high rpm but run fine at low rpm?
→ This is a classic symptom of gain instability at high load-the ECU's feedforward calculation is off, and the feedback loop cannot correct the error quickly enough. The 0574's gain stability is designed to prevent this.

Q4: What is the most common cause of gain instability in this valve?
→ Wear on the spool's control edge. The 0574 uses a hardened and coated spool to resist this wear, but if the fuel contains abrasive particles, the wear can be accelerated. Regular fuel filter changes are the most effective prevention.

Q5: I replaced the valve but the engine still has a loss of power at high load-is the valve defective?
→ Check the inlet pressure to the valve-if the pressure is below 5 bar at rated speed, the gain stability cannot compensate. The issue is likely the lift pump or a blocked fuel filter, not the valve.

Q6: Does the gain stability change with the fuel temperature?
→ Yes, slightly. The fuel viscosity changes with temperature, which changes the flow through the valve. The 0574 is designed to maintain gain stability across the full temperature range, but a small change is normal and is compensated by the ECU's adaptation.
