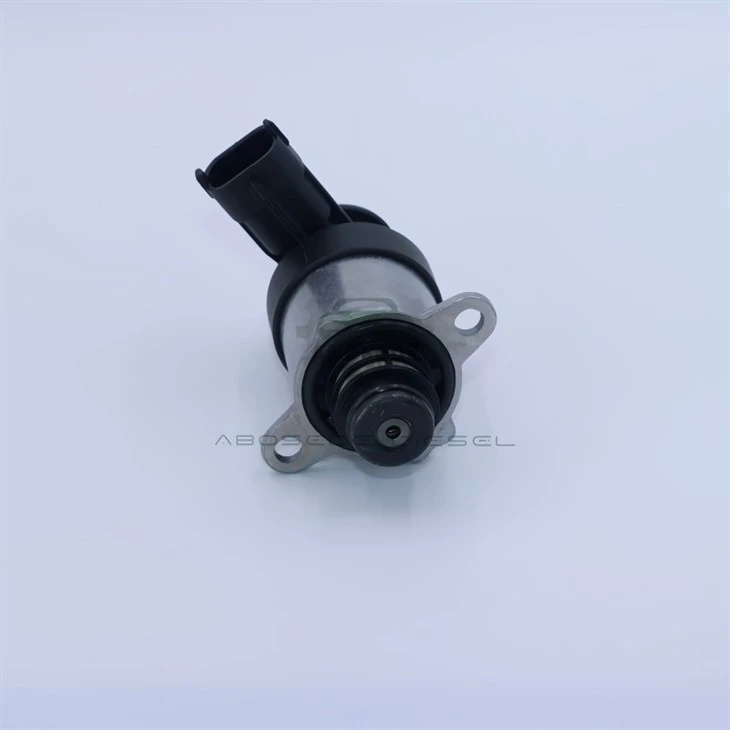

0928400508 Bosch Fuel Metering Valve – Smooth Engine Speed Control & Idle Stability For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

The 0928400508 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. A common complaint from drivers of high-mileage trucks is a subtle but annoying idle surge - the tachometer needle drifting up and down, the engine note changing rhythmically, a faint vibration through the cab floor. This condition often has no fault code. The engine computer is working correctly, but the metering valve is not. At idle, the valve must hold a steady, very small opening to supply the tiny amount of fuel the engine needs. If the spool inside the valve sticks slightly, or if its movement is uneven, the flow of fuel becomes irregular. The rail pressure drifts, the computer corrects, and the cycle repeats - creating a low-frequency oscillation that drivers feel as a surge. The 0928400508 is built to hold this small opening with precision, eliminating the hunt at its source. It fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

At hot idle, a heavy-duty diesel engine consumes remarkably little fuel. The metering valve is barely open - typically between 18% and 25% of its full range. In this position, the spool is almost touching its seat. The fuel passages are at their narrowest. Even a microscopic irregularity in spool movement or flow geometry can cause the delivered fuel quantity to vary by several percent from one engine cycle to the next. The engine computer, which monitors rail pressure many times per second, detects these small variations and responds by adjusting the valve's duty cycle. But there is an unavoidable delay between the pressure change, the detection, and the correction. By the time the correction arrives, the pressure has already shifted in the opposite direction. The computer overcorrects, and the cycle repeats. The result is a regular, low-frequency oscillation - typically around 1 Hz - in both rail pressure and engine speed. This is the "idle hunt" that drivers notice.

The 0928400508 prevents idle oscillation through the quality of its spool movement. The spool has a Diamond-Like Carbon coating that provides an extremely low and consistent coefficient of friction. This eliminates the stick-slip behavior that occurs when a spool with higher friction briefly seizes in its bore, then jumps forward when the magnetic force finally overcomes the static friction. Stick-slip is one of the primary causes of low-flow instability. The return spring is stress-relieved and precisely preloaded so that it provides a smooth, linear counterforce to the magnetic opening force. There is no sudden change in spring rate as the spool approaches its seat. The magnetic circuit uses a laminated stator core that builds and collapses its field without eddy-current delays, ensuring that the spool follows the PWM command with minimal lag. These features together mean that the valve responds to the computer's small corrections smoothly and proportionally, rather than jerking between positions. The computer's control loop stabilizes quickly, and the engine idles smoothly.

A smooth idle is not just about comfort - it affects the entire drivetrain. The rhythmic torque pulses from an oscillating engine are transmitted through the engine mounts to the chassis. The transmission input shaft sees a fluctuating load. The accessory drive belt and tensioner are subjected to a constant, low-amplitude shaking. Over thousands of hours, this vibration can accelerate wear on mounts, belts, and even the dual-mass flywheel in manual-transmission trucks. The 0928400508 eliminates the source of this vibration. The engine mounts do their job properly, isolating the normal vibration of a diesel engine rather than fighting a rhythmic surge. Drivers report less fatigue on long hauls. Fleet managers see fewer complaints about cab vibration and fewer repairs to vibration-related components.

The 0928400508 mounts directly to the CP3 or CP1H pump housing using the standard two-bolt flange and factory electrical connector. After installation, prime the low-pressure fuel system and reset the engine computer's stored fuel trim adaptations with a diagnostic scan tool. The reset clears the correction values from the previous valve, which may have been compensating for its stick-slip behavior. After the reset, let the engine idle until fully warm and observe the rail pressure trace. It should be flat and stable.

Q1: My truck has a slight surge at idle that I can feel through the seat, but there are no fault codes. Is this a metering valve problem?

Yes, this is a common symptom of a metering valve that is not holding a steady low-flow position. The engine computer corrects the resulting pressure fluctuations, but cannot fully eliminate the oscillation. The 0928400508 eliminates the stick-slip that causes the instability.

Q2: Can an idle surge damage the engine over time?

The surge itself does not directly damage internal engine parts, but the constant vibration can accelerate wear on engine mounts, belts, and driveline components. Fixing the surge early prevents these secondary problems.

Q3: How can I be sure the surge is from the metering valve and not from a dirty EGR valve or an air leak?

Check the rail pressure trace on a scan tool. If the pressure oscillates in sync with the engine speed surge, the problem is in the fuel delivery system, and the metering valve is the prime suspect. EGR or air system problems typically do not cause the rail pressure to oscillate.

Q4: Will the 0928400508 improve idle smoothness immediately after installation?

Yes. After the ECM fuel trim reset, the valve's smooth, low-friction movement allows the computer to stabilize rail pressure within seconds. The idle should smooth out as soon as the engine reaches operating temperature and the computer has adapted.

Q5: Does this valve help with surging at highway speeds as well as at idle?

Yes. The same stick-slip behavior that causes idle surge can also cause a light surging at steady highway cruise, especially when the engine is under light load. The 0928400508's low-friction spool eliminates the cause across the entire operating range.

Q6: Can a sticking metering valve cause the transmission to shift harshly?

Indirectly, yes. If the engine speed is unstable, the transmission control module may receive fluctuating torque signals, which can affect shift quality. A smooth engine is a prerequisite for smooth transmission operation.
