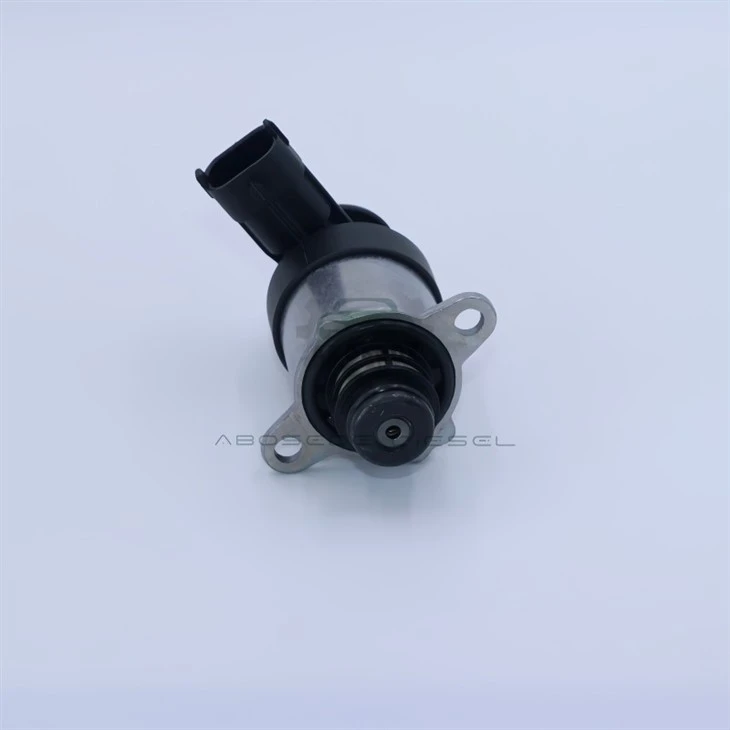

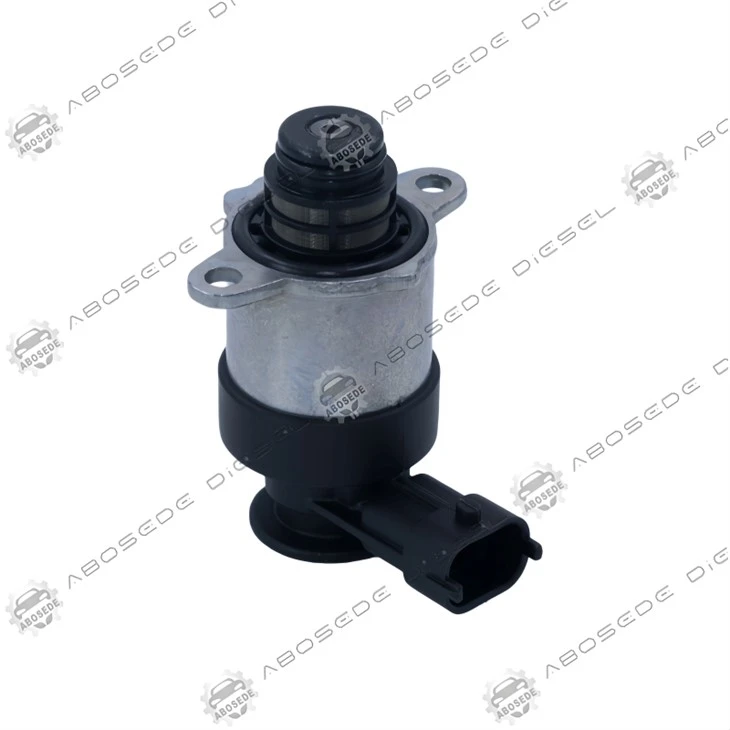

Bosch 0928400560 Metering Valve: The Opening Curve Matters More Than the Open Position
video
Bosch 0928400560 Metering Valve: The Opening Curve Matters More Than the Open Position

Bosch 0928400560 Metering Valve: The Opening Curve Matters More Than the Open Position

1. Product:0928400560
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction



A metering valve is often described by its fully-open flow capacity. That specification says little about cold-start quality. What determines whether a CP3 pump builds rail pressure smoothly is the valve's opening curve-how armature lift develops over the first few hundred milliseconds after the ECU commands fuel. The 0928400560 is defined by that curve, not by a flow number at full lift.



📈 Opening Curve: Spring Rate × Damping Orifice × Armature Mass



The valve's dynamic response is a second-order system: coil force accelerates the armature, spring rate resists it, and the damping orifice adds hydraulic resistance proportional to velocity. The result is an opening curve with three phases:

Phase What happens What sets it
Breakaway Armature lifts off seat Coil force vs spring preload
Controlled acceleration Lift develops against damping Spring rate + orifice restriction
Settling Armature reaches commanded lift Damping ratio, fuel viscosity

⚠️ Two valves with identical full-lift flow can have different opening curves. If a supplier only quotes flow at full lift, the cold-start behavior is unspecified.



🔬 What "Controlled Build Rate" Actually Means



A controlled build rate is not a slower valve. It is a valve whose lift trajectory is shaped so that pump delivery rises without a pressure spike at the rail inlet. The mechanism is a matched spring-and-orifice pair:

Softer spring → lower initial acceleration → gentler pressure ramp

Sized damping orifice → velocity-dependent resistance → prevents overshoot

Pre-cycled spring → stable free length over service life → repeatable curve

✅ The functional check is a cold-start pressure trace, not a bench flow number. A smooth ramp with no overshoot and first fire within the ECU's cranking window is the acceptance criterion.



🧪 Failure Modes: Where the Curve Is Lost





Failure mode Mechanism First symptom
Spring relaxation Free length shortens with thermal cycles Longer crank, slow pressure ramp
Damping orifice blockage Particulate or varnish restricts flow Slow or erratic lift development
Armature guide wear Increased clearance changes damping Inconsistent start quality
Coil degradation Lower force at same command Delayed breakaway, weak ramp
Contamination on seat Leakage at closed position Rail pressure bleed-down after shutdown

🔎 Orifice blockage and spring relaxation can produce the same driver complaint-long crank-but require different corrective actions. A pressure trace during cranking separates them: blockage shows a stepped ramp; relaxation shows a uniformly slow ramp.



❄️ Cold-Start Attribution Matrix: Valve vs Everything Else



A harsh or long cold start is not automatically a metering valve fault. Use this matrix before replacing the valve:

Observation More likely cause Check
Smooth ramp, first fire late Glow plugs, injector response Glow plug circuit, injector return flow
Ramp overshoots then settles Valve curve too fast Verify valve part number and spring spec
Ramp rises slowly, no overshoot Valve curve too slow / orifice blocked Pressure trace, valve inspection
Pressure builds then decays before fire Injector leakage Return-flow test
Start quality varies with fuel temperature Viscosity sensitivity Compare traces at two temperatures

💰 Replacing a metering valve to fix a glow-plug fault is a common and expensive misdiagnosis.



❓ FAQ



Q1: How do I know if my 0928400560 valve's opening curve is out of spec?
A: Record a rail pressure trace during cold cranking. A smooth ramp with first fire inside the ECU's cranking window is acceptable. A stepped ramp suggests orifice blockage; a uniformly slow ramp suggests spring relaxation.

Q2: Can I substitute 0928400560 for 0928400633 without recalibration?
A: Verify against an OEM cross-reference document and confirm the ECU calibration accepts the substitution. "Most CP3.2 applications" is not a fitment guarantee-check the engine calibration before ordering.

Q3: Why does cold start quality change with fuel temperature?
A: Fuel viscosity affects damping force on the armature. A valve designed for consistent build rate should show similar traces across the temperature range; large variation suggests the spring-orifice pair is not matched to the application.

Q4: What batch data should a distributor request for CP3 metering valves?
A: Spring free length, damping orifice diameter, opening time to full lift, coil resistance, and seal material grade. A single "fully tested" statement is not a batch record.

Q5: I replaced the valve but cold start is still harsh-what else should I check?
A: Check glow plugs, injector return flow, and the rail pressure trace before assuming the valve is defective. A harsh start with a correct pressure ramp points to combustion-side causes, not the metering valve.

Q6: What warranty terms matter most for metering valve buyers?
A: DOA window, response/leakage failure coverage, and clarity on whether a single valve can be claimed without returning the full set. Batch traceability and opening-curve data matter more than warranty length.
