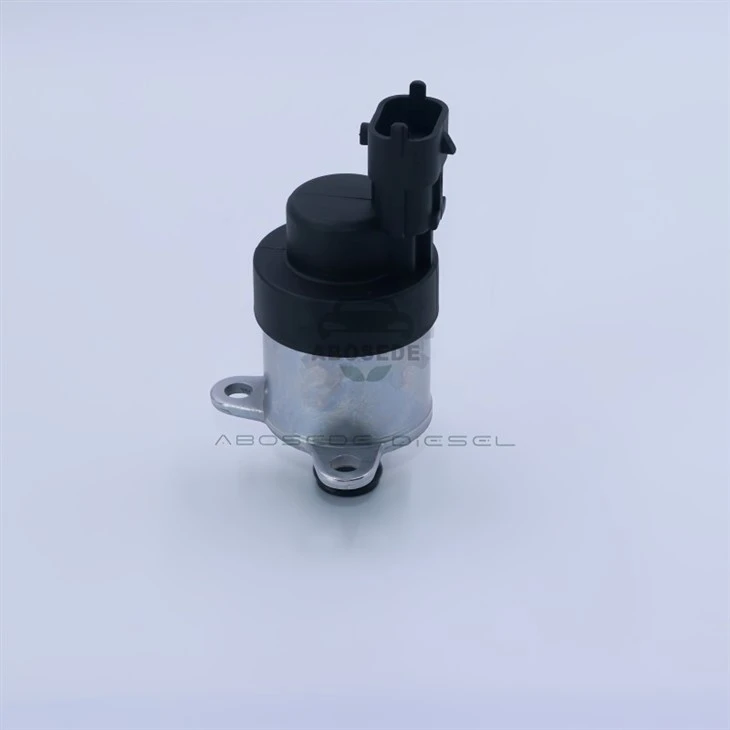

Bosch 0928400501 – The Metering Valve With Valve Sleeve Compliance For Pressure-Adaptive Clearance Control

Inside every metering valve, the clearance between the spool and the sleeve is a critical parameter - too tight, and the spool sticks; too loose, and the leakage is excessive. However, this clearance is not constant; it changes with the pressure because the sleeve, which is pressed into the valve body, expands slightly under the hydraulic pressure from the fuel. If the sleeve expansion is not controlled, the clearance changes unpredictably, and the valve's flow characteristic shifts with the pressure. The 0928400501 is engineered with a valve sleeve that has a specific compliance - a controlled elastic deformation that ensures the spool-to-sleeve clearance remains stable across the operating pressure range. It is a valve that adapts its clearance to the pressure, not one that is disturbed by it.

The spool-to-sleeve clearance determines both the leakage and the metering accuracy. If the clearance is too small, the spool sticks; if it is too large, the leakage is excessive, and the metering is inaccurate. However, the clearance changes with the pressure because the sleeve, which is pressed into the valve body, expands under the hydraulic pressure from the fuel. The expansion is not uniform - the sleeve expands more at the points where the pressure is highest. If the sleeve is made from a material with a specific compliance - a controlled elasticity - the expansion can be tailored to maintain a constant clearance across the pressure range. The 0928400501 uses a sleeve made from a steel alloy that has a compliance that matches the pressure profile of the CP4.2 pump, ensuring that the clearance remains within the 4-6 µm range across the full operating pressure range.

The sleeve compliance is calibrated by selecting a steel alloy with a specific elastic modulus and by designing the sleeve wall thickness to provide the required expansion. The 0928400501 uses a sleeve made from a martensitic stainless steel that has a higher elastic modulus than standard steel - the sleeve expands less under pressure. The sleeve wall thickness is also increased in the regions where the pressure is highest - the additional material reduces the expansion in these regions, ensuring that the clearance remains uniform. The sleeve is also coated with a thin layer of chromium nitride - a coating that reduces the friction and wear, ensuring that the clearance is maintained over the service life. The result is a sleeve that expands in a controlled manner, maintaining the clearance at 5 µm across the 250-1,800 bar pressure range.

The sleeve compliance can be lost if the sleeve is damaged - for example, by over-pressing it into the valve body or by exposing it to temperatures above the design limit. A damaged sleeve may have a different expansion characteristic, and the clearance may no longer be stable. The first symptom is often a loss of metering accuracy at high pressures - the valve delivers less fuel than commanded because the clearance has increased and the leakage is higher. The genuine 0928400501 is manufactured with the correct alloy and coating, and the sleeve compliance is verified on a test rig that measures the clearance at multiple pressures.

Installing the 0501 is similar to other CP4 valves - clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 23 Nm ± 2 Nm. However, there is a specific step: check the valve body for signs of damage or wear before installation. The valve body bore must be within the specified tolerance - if the bore is worn, the sleeve will not be pressed in correctly, and the compliance will be compromised. The bore should be inspected for scoring, corrosion, or any deformation. If the bore is damaged, the pump body must be replaced - a new valve will not restore the clearance.

Q1: How can I tell if my valve's sleeve compliance is compromised without removing it?
→ Monitor the metering valve duty cycle at idle and at full load - if the duty cycle changes significantly between these two conditions, the clearance may be changing with the pressure. A well-functioning 0501 will show a stable duty cycle across the load range.

Q2: Can I use the 0928400501 on a BMW that originally used the 0743?
→ Yes, in most CP4.2 applications. The 0501 has the sleeve compliance that is particularly valuable for high-pressure applications, and it is a direct replacement for the 0743 in many applications. Always verify compatibility with the engine's calibration.

Q3: Why does my engine have good low-load performance but poor high-load performance?
→ This is a classic symptom of a valve without controlled sleeve compliance - the clearance increases at high pressure, and the leakage reduces the flow. The 0501 is designed to maintain the clearance at high pressure.

Q4: What is the most common cause of sleeve compliance loss in this valve?
→ Damage to the sleeve during installation - if the valve is dropped or the sleeve is over-pressed, the sleeve can crack. The 0501's sleeve is robust, but it must be handled with care. Always inspect the valve for damage before installation.

Q5: I replaced the valve but the high-load performance is still poor - is the valve defective?
→ Check the inlet pressure to the pump - if the pressure drops at high load, the plungers cannot fill, and the valve will appear to be under-performing. Also, check the fuel filter for blockage - a blocked filter can cause a pressure drop at high flow rates.

Q6: Does the sleeve compliance work with biodiesel blends?
→ Yes. The sleeve compliance is based on the material properties and the wall thickness - it is not affected by the fuel type. However, biodiesel has a different lubricity, which can affect the wear rate of the sleeve and spool. The 0501 is designed to work with biodiesel blends up to B20.
