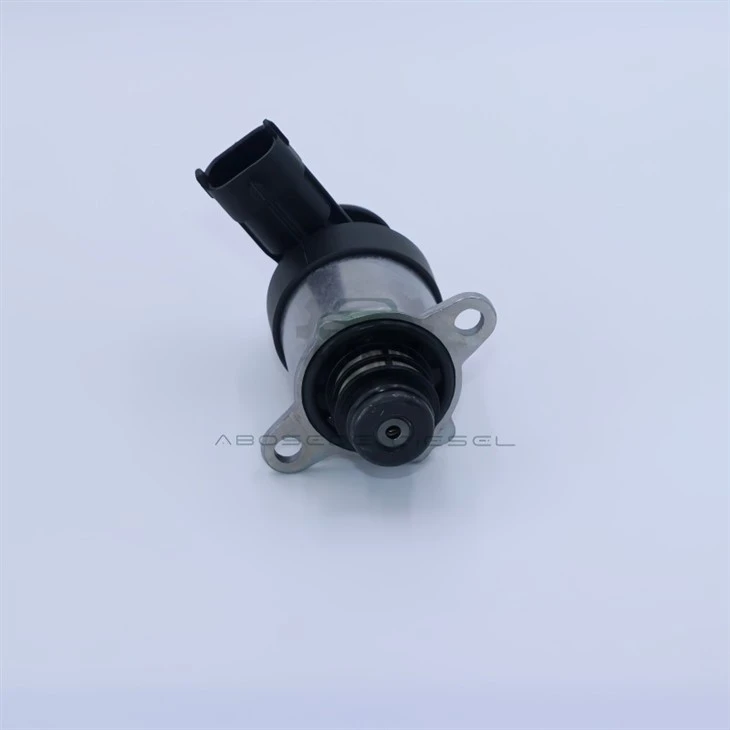

0928400703 Bosch Fuel Metering Valve – Accessory Load Transient Response & Stable Idle Under Demand For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

The 0928400703 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. Drivers of heavy trucks often notice a momentary dip in engine speed when the air conditioning compressor engages or the cooling fan clutch locks up at a stoplight. This is not a tuning issue - it is a fuel delivery challenge. When a high-demand accessory suddenly switches on, the engine load increases instantly. The engine computer must immediately raise the rail pressure to deliver more fuel without overshooting. The metering valve is the component that executes this command. If it is slow to open further, the rail pressure dips, the injectors deliver less fuel, and engine speed drops before recovering. The 0928400703 is built with a low-friction, fast-response spool and magnetic circuit that allow it to track these sudden load changes accurately. It maintains rail pressure stability when accessories cycle on and off, keeping engine speed steady and protecting belt-driven components from the vibration caused by rpm fluctuations. This valve fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

At hot idle, the engine is producing just enough power to keep itself turning and run the alternator, water pump, and power steering pump. The air conditioning compressor is usually the largest single accessory load. When its clutch engages, the compressor can draw 3–5 kW of mechanical power almost instantly. The engine control unit senses the rpm drop and commands a rapid increase in fuel delivery to prevent stalling. The metering valve must move from its low-flow idle position to a higher-flow position in tens of milliseconds. If the valve hesitates, rail pressure drops by 5–10 MPa before the correction arrives. This results in a brief lean condition across all cylinders, causing the engine to shudder or the rpm to sag noticeably. The 0928400703 minimizes this hesitation through a spool with DLC coating for low friction and a magnetic stator with high permeability that builds force quickly, reducing the electrical-to-mechanical delay.

Fast movement is important, but controlled movement is equally critical. If the valve overshoots the commanded position, it delivers too much fuel, causing a momentary rpm flare before the computer pulls it back. This surge-and-sag cycle strains the accessory belt and tensioner. The 0928400703's spool movement is hydraulically damped to prevent overshoot. A small damping chamber restricts the spool's final approach to the new position, allowing it to settle smoothly without oscillation. This means the valve provides a clean, single-step fuel increase in response to an accessory load, rather than a series of corrections that cause rpm hunting. The result is a stable idle regardless of whether the air conditioning, cooling fan, or other accessories are cycling.

When engine speed fluctuates due to unstable fuel delivery, the serpentine belt and its driven accessories feel the effect. The belt experiences rapid changes in tension each time the crankshaft pulley accelerates or decelerates. The automatic tensioner cycles more frequently, leading to accelerated wear on its internal spring and damping mechanism. The air conditioning compressor clutch must engage and disengage against a fluctuating input speed, which can cause clutch slippage and wear. By maintaining a steady idle speed, the 0928400703 helps protect these expensive components from the secondary effects of unstable fuel delivery. Stable engine speed also means the alternator produces consistent voltage, and the power steering pump provides smooth hydraulic assist.

The valve's accessory load response can be tested easily in the workshop. With the engine idling and fully warm, connect a diagnostic scan tool and observe the rail pressure actual value. Switch on the air conditioning to maximum and watch the pressure trace. A healthy 0928400703 will show a brief, small dip of 2–3 MPa, followed by a quick recovery to the target pressure - all within half a second. Engine rpm should remain steady with only a minor, barely perceptible change. If the rail pressure dip exceeds 5 MPa, the engine speed drops noticeably, or the pressure oscillates before stabilizing, the metering valve's response may be sluggish. This test can also be performed by turning the steering wheel to full lock to load the power steering pump.

Q1: My truck's engine rpm dips noticeably every time the air conditioning compressor kicks in. The scan tool shows no fault codes. Can the metering valve cause this?

Yes. When the A/C compressor engages, the engine needs a rapid increase in fuel to maintain idle speed. If the metering valve is slow to respond, rail pressure dips and the engine stumbles before recovering. The 0928400703's fast-response design eliminates this dip.

Q2: Can this hesitation also happen with other accessories, like the cooling fan?

Yes. The engine-driven cooling fan, especially a viscous or electromagnetic clutch fan that engages abruptly, can create a similar load spike. The metering valve must compensate quickly to keep the engine speed stable.

Q3: Will a sluggish metering valve damage the air conditioning system?

Indirectly, it can. Rapid rpm fluctuations can cause the compressor clutch to slip or engage roughly, increasing wear on the clutch surfaces. A stable idle helps the clutch engage smoothly and last longer.

Q4: How can I test if the metering valve is responding fast enough to accessory loads?

Monitor rail pressure with a scan tool while switching the A/C on and off. A healthy valve will show a small, quick dip and recovery. A large dip or oscillation indicates a problem. Also check the hot idle duty cycle - if it is above 30%, the valve may be worn.

Q5: Does the 0928400703 help with transmission engagement harshness?

If the transmission creates a momentary load change when shifted into gear (especially with automatic transmissions), the metering valve must also compensate. A valve that responds quickly to load changes can reduce the rpm drop or jerk felt during engagement.

Q6: Do I need to reset the ECM after installation?

Yes. Resetting the ECM's stored fuel trim adaptations clears corrections learned for the old valve. This is a standard step after any metering valve replacement and ensures optimal response to transient loads.
