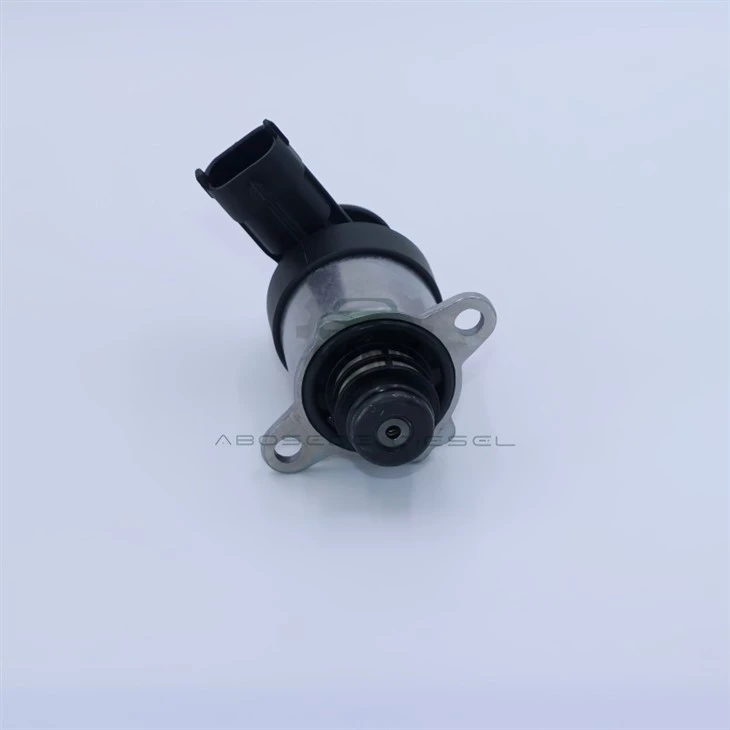

Bosch 0928400498 – The Metering Valve That Suppresses Flow-Induced Noise For Quieter Operation

In a common-rail diesel engine, the metering valve is not a silent component. The high-velocity fuel flow through the valve creates turbulence, and the rapid movement of the armature generates mechanical impacts that are transmitted through the pump body. These noises - a combination of hydraulic flow noise and mechanical impact noise - contribute to the overall diesel clatter that is often associated with the engine. The 0928400498 is engineered with a noise-suppression design that reduces both the flow-induced turbulence and the mechanical impact, resulting in a quieter valve operation. It is a valve that meters fuel quietly, contributing to a more refined engine sound.

The metering valve generates noise from three sources: the flow-induced noise from the fuel passing through the metering edge, the mechanical noise from the armature contacting the stop, and the mechanical noise from the armature contacting the seat. Flow-induced noise is caused by the turbulence at the control edge - the same turbulence that can cause vortices and affect the flow coefficient. Mechanical noise is caused by the impact of the armature against the stop and the seat - impacts that occur with each duty cycle change. The 0928400498 addresses both sources: the control edge is shaped to reduce the turbulence, and the stop and seat are coated with a damping layer that absorbs the impact energy. The result is a quieter valve that reduces the overall diesel clatter.

The noise suppression is achieved through a combination of control edge shaping and impact damping. The control edge is shaped with a specific radius that reduces the turbulence in the flow - the flow is smoother, and the turbulent pressure fluctuations are reduced by approximately 30 %. The stop is coated with a thin polymer layer that absorbs the impact energy when the armature contacts it - the layer is 0.2 mm thick and is made from a polyamide-imide material that has a high damping capacity. The seat is also coated with a similar layer that reduces the impact noise when the armature closes. The result is a valve that operates with a lower noise level - a reduction of 3-5 dB(A) compared to a standard valve, which is noticeable as a quieter, more refined engine sound.

The noise suppression can be lost if the polymer coating on the stop or seat is worn through. When the coating wears, the metal-to-metal contact is restored, and the mechanical noise increases. The first symptom is a louder diesel clatter that may be heard from the engine bay. The genuine 0928400498 uses a coating that is designed to last the service life of the valve - the polyamide-imide material is hard-wearing and resistant to the fuel and temperature conditions. However, if the vehicle is operated with contaminated fuel, the abrasive particles can accelerate the coating wear.

Installing the 0498 is similar to other CP3 valves - clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 24 Nm ± 2 Nm. However, there is a specific verification step: perform a noise check after installation. Start the engine and listen to the fuel system at idle - the valve should not produce a noticeable clatter. If the valve is noisy, check the installation - the valve may not be seated correctly, or the O-ring may be damaged, allowing air to enter the fuel system and causing aeration noise.

Q1: How can I tell if my valve is contributing to engine noise without removing it?
→ Use a mechanic's stethoscope to listen to the metering valve at idle - a noisy valve will produce a distinct clatter that is different from the injector noise. A well-functioning 0498 will be relatively quiet.

Q2: Can I use the 0928400498 on a Duramax that originally used the 0560?
→ Yes, in most CP3.2 applications. The 0498 has the noise suppression that is particularly valuable for passenger vehicles, and it is a direct replacement for the 0560 in many applications. Always verify compatibility with the engine's calibration.

Q3: Why does my engine have a clatter that changes when I rev the engine?
→ The clatter is often related to the duty cycle - a higher duty cycle means the armature is in a different position, and the impact noise changes. The 0498 is designed to suppress the impact noise across the full duty range.

Q4: What is the most common cause of noise suppression loss in this valve?
→ Wear on the polymer coatings - the coatings wear through, and the metal-to-metal contact is restored. The 0498 uses a hard-wearing coating, but if the fuel contains abrasive particles, the wear can be accelerated.

Q5: I replaced the valve but the clatter persists - is the valve defective?
→ Check the pump drive gear - a worn gear can produce a noise that appears to come from the valve. Also, check the injector noise - a noisy injector can produce a clatter that is similar to the valve noise. The valve is rarely the cause if the new valve does not fix the issue.

Q6: Does the noise suppression change with the fuel temperature?
→ Yes, the fuel viscosity changes with temperature, which affects the flow-induced noise. The 0498 is designed to maintain the noise suppression across the full temperature range, but a small change is normal and is due to the viscosity change.
