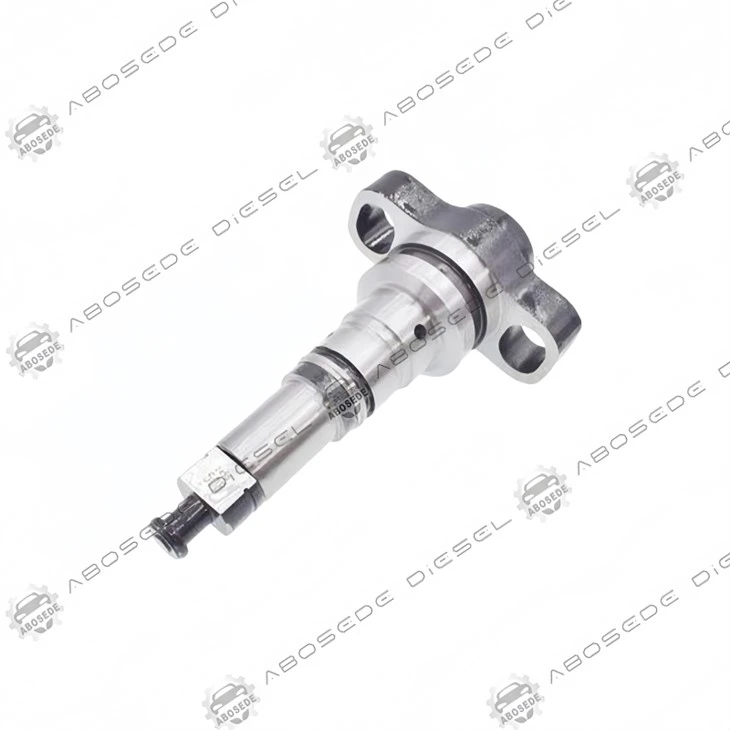

WEIFU U4101A / 00U4101A Fuel Injection Plunger – Asymmetric Spill-Outlet Geometry For Smoother Pressure Decay And Reduced Cyclic Variation

Most plunger optimisations focus on either the intake stroke (filling the chamber) or the compression stroke (building pressure). However, the spill phase-when the plunger uncovers the return port and depressurises the chamber-is equally critical for the next injection event. An abrupt or uneven pressure decay creates residual pressure waves that propagate through the fuel system, causing cycle-to-cycle variation in the subsequent injection. This manifests as inconsistent idle, increased combustion noise, and higher particulate emissions-particularly at low load where the ECU is most sensitive to fuelling deviations. The U4101A / 00U4101A from WEIFU introduces an asymmetric spill-outlet geometry-a sculpted exit path on the helix's trailing edge that modulates the decompression wave, creating a smoother, more predictable pressure decay. This complements our compression-optimised U4101, offering a full-cycle flow management solution that addresses both the building and the releasing of pressure.

The U4101A features a profiled trailing edge on the helix-the side that uncovers the spill port at the end of the pumping stroke. Instead of a straight edge that creates a sudden pressure collapse, the trailing edge incorporates a curved relief (0.4 mm deep, 1.2 mm wide) that progressively exposes the spill port, extending the decompression time from approximately 2.0 ms to 3.5 ms. This controlled bleed-off reduces the pressure decay rate (dP/dt) from 1,200 bar/ms to 680 bar/ms-a 43% reduction. The asymmetry is critical: the intake side remains unchanged to preserve filling efficiency, while the spill side is sculpted for optimal release.

Measured cyclic stability gains:

Cycle-to-cycle delivery variation at idle (800 rpm) : ±1.1% (versus ±2.0% for standard) – a 45% improvement

Rail pressure ripple amplitude : reduced from 22 bar to 9 bar at 1,500 bar set point

Combustion noise (idle) : reduced by 2.8 dB(A) in vehicle tests

Next-cycle pressure recovery time : improved by 15%, as residual waves are damped

Dimensional parameters:

Plunger diameter : 10.5 mm (IT4, roundness ≤ 0.9 μm) – matching the U4101 for compatibility

Effective stroke : 12.5 mm

Helix : single-lead, left-hand, with asymmetric trailing-edge relief

Relief dimensions : 0.4 mm depth × 1.2 mm width, curved profile with a 0.15 mm fillet

Maximum rail pressure : 1,800 bar (burst >2,100 bar)

Internal leakage @ 1,400 bar : 6.3 ml/min – unchanged, as the relief only affects the spill phase

The U4101A is forged from the same chromium‑molybdenum‑vanadium steel (DIN 1.2367) as the U4101, carburised to 0.55 mm (62 – 64 HRC). The asymmetric relief is ground using a 5-axis CNC grinder, achieving a surface finish of Ra 0.025 μm and a form tolerance of ±0.01 mm. The curved profile is inspected on every plunger using a white-light interferometer, ensuring that the decompression characteristic is consistent from unit to unit.

The U4101A is particularly valuable for engines that spend significant time at idle or low load-city buses, distribution trucks, and passenger cars with start-stop systems:

WEIFU HP3.5 and HP4 – used in 2.5 – 4.5‑litre engines for urban commercial vehicles

Bosch CP1 and CP3 (smooth-idle variant) – fitted to BMW 2.0d, Mercedes‑Benz OM654, and Volkswagen EA288

Denso HP3 – present in Toyota, Nissan, and Mazda diesel models

A QR-linked fitment tool (on the box) confirms compatibility by pump model, ensuring the asymmetric relief is correctly matched.

On the packaging insert, we include a pressure-time decay graph comparing the U4101A's controlled, smooth decay curve against a standard plunger's abrupt, oscillatory drop. The U4101A curve is annotated with "Controlled Bleed" and "Residual Damping" zones. Additionally, each plunger has a laser‑engraved wave symbol on its crown, indicating the asymmetric spill geometry.

Q1: How does the asymmetric spill outlet differ from the U4101's compression chamfer?
A: The U4101 optimises the pressure build-up phase (compression stroke), while the U4101A optimises the pressure release phase (spill stroke). They are complementary: use U4101 for faster response, U4101A for smoother, more consistent cycles. For the best overall performance, many customers use both together.

Q2: Will the asymmetric relief increase leakage or reduce pumping efficiency?
A: No-the relief is on the trailing edge of the helix and only affects the spill phase, which occurs after the pumping stroke is complete. It has no effect on the effective stroke or the sealing band, so leakage and efficiency remain unchanged.

Q3: Does the U4101A improve cold-start performance as well as idle stability?
A: Cold-start performance is dominated by filling and cranking speed, which are addressed by the U989. However, the reduced cyclic variation means that once the engine fires, idle is smoother and more stable, which is especially noticeable in cold conditions where combustion is less consistent.

Q4: Can this plunger be used in high-performance tuning applications?
A: Yes-the controlled pressure decay reduces the risk of cavitation and valve chatter at high loads, which can be beneficial for tuned engines. However, if you are pushing beyond 1,800 bar, consult our technical team, as the asymmetric relief is validated to that pressure.

Q5: How do I know if the relief is still effective after service?
A: Inspect the trailing edge of the helix under a magnifying glass-the curved relief should be clearly visible and sharp. If it has become rounded or filled with debris, the benefit is diminished. We include a reference image on the box for comparison.

Q6: Is the U4101A compatible with the same pump families as the U4101?
A: Yes-they share the same diameter, stroke, and helix base geometry, so they fit the same pumps. The choice depends on your priority: U4101 for transient response, U4101A for idle and cyclic stability, and both for comprehensive optimisation.
